5 engine harness electrical schematic, Engine harness electrical schematic – JLG 4013PS Service Manual User Manual

Page 159

9-19

3508PS, 3509PS, 3512PS, 3513PS, 4008PS, 4009PS, 4012PS, 4013PS, 4017PS, 40.8, 40.9

Electrical System

9.7.5

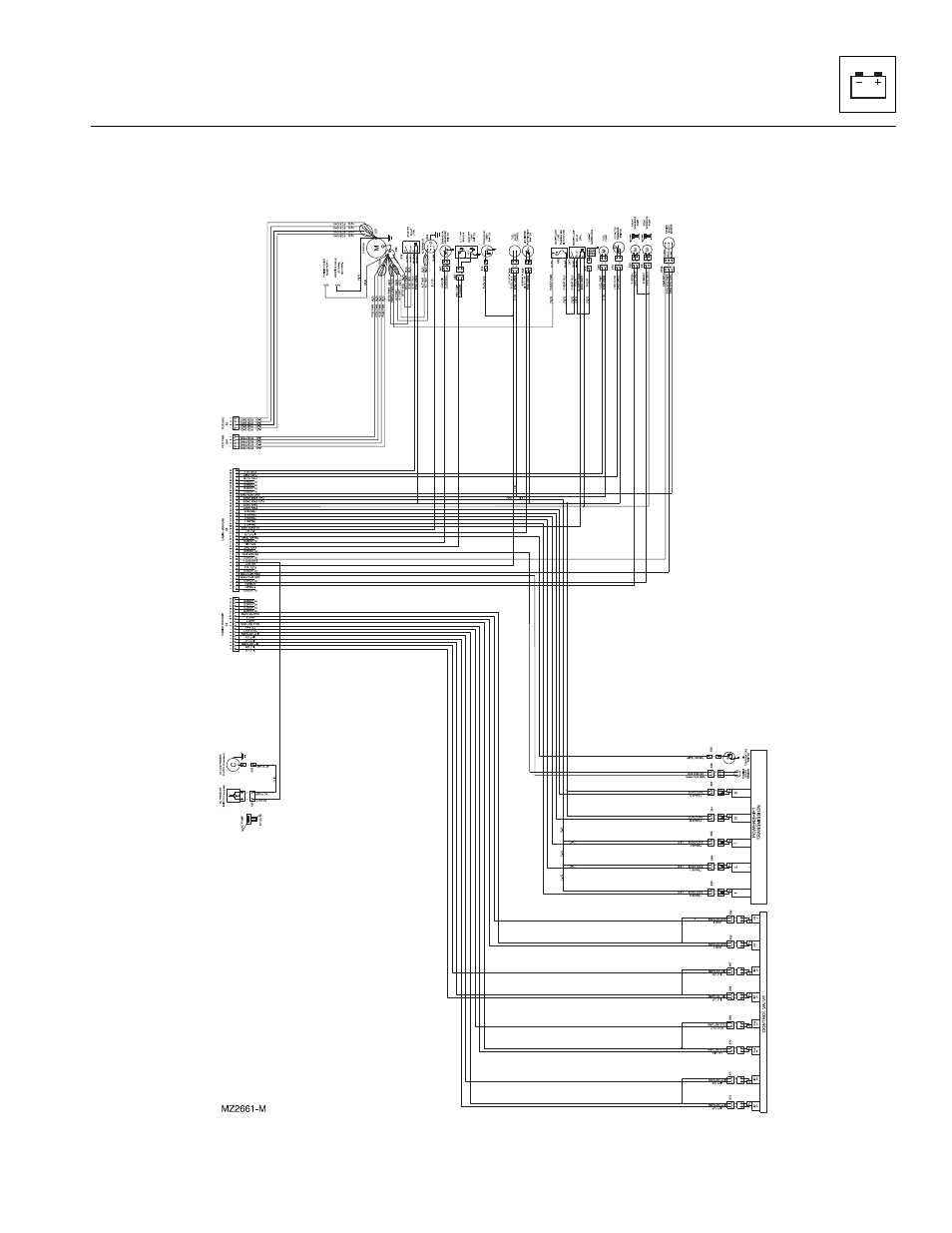

Engine Harness Electrical Schematic

(Sheet 5)
