52
Software
TransferMan
® 4r
English (EN)
5.2.4 Application – DNA injection
This application is suitable for injection movements along the horizontal plane (e.g.,
pronucleus injection).

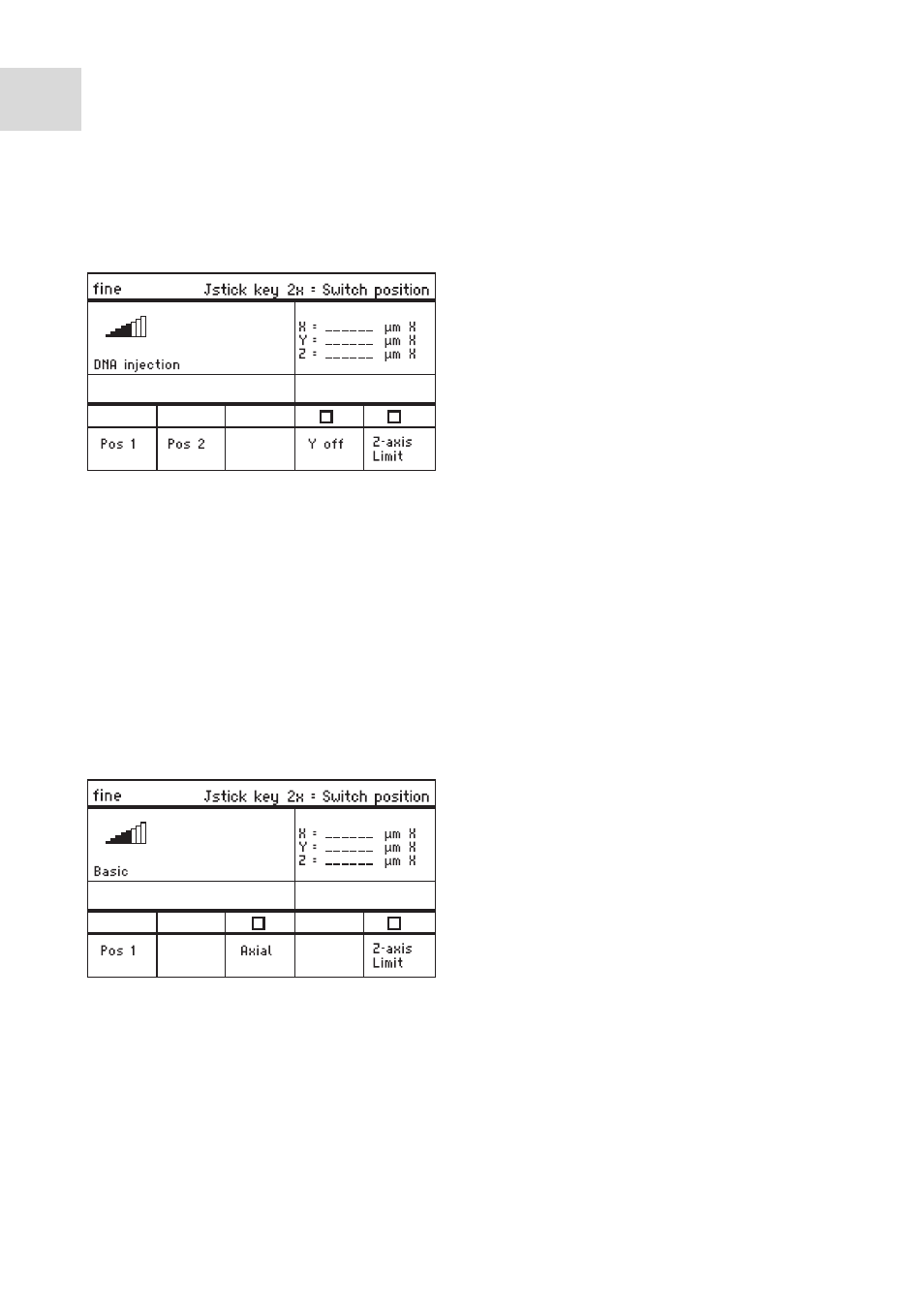

Abb. 5-7:Application 3
Fig. 5-7: Application 3 DNA injection
Parameter selection
• Double-click on joystick key – switch position
• Save positions 1 and 2
• Freely program softkey
• Switch off control of movement axis (Y-axis)
• Set lower limit ( Z-axis Limit )
5.2.5 Application – Basic
This application is suitable for injection movements into larger organisms (e.g.,
Drosophila embryos).
Abb. 5-8:Application 4
Fig. 5-8: Application 4 Basic
Parameter selection
• Double-click on joystick key – switch position
• Save position 1
• Freely program softkey
• Switch on axial movement of Z-axis
• Freely program softkey
• Set lower limit (
Z-axis Limit )
