Eppendorf TransferMan4 r - Manual (Page 29)

29
Installation
TransferMan ® 4r
English (EN)
4.4.3 Mounting the X-module
Prerequisites
• 3 mm Allen torque key

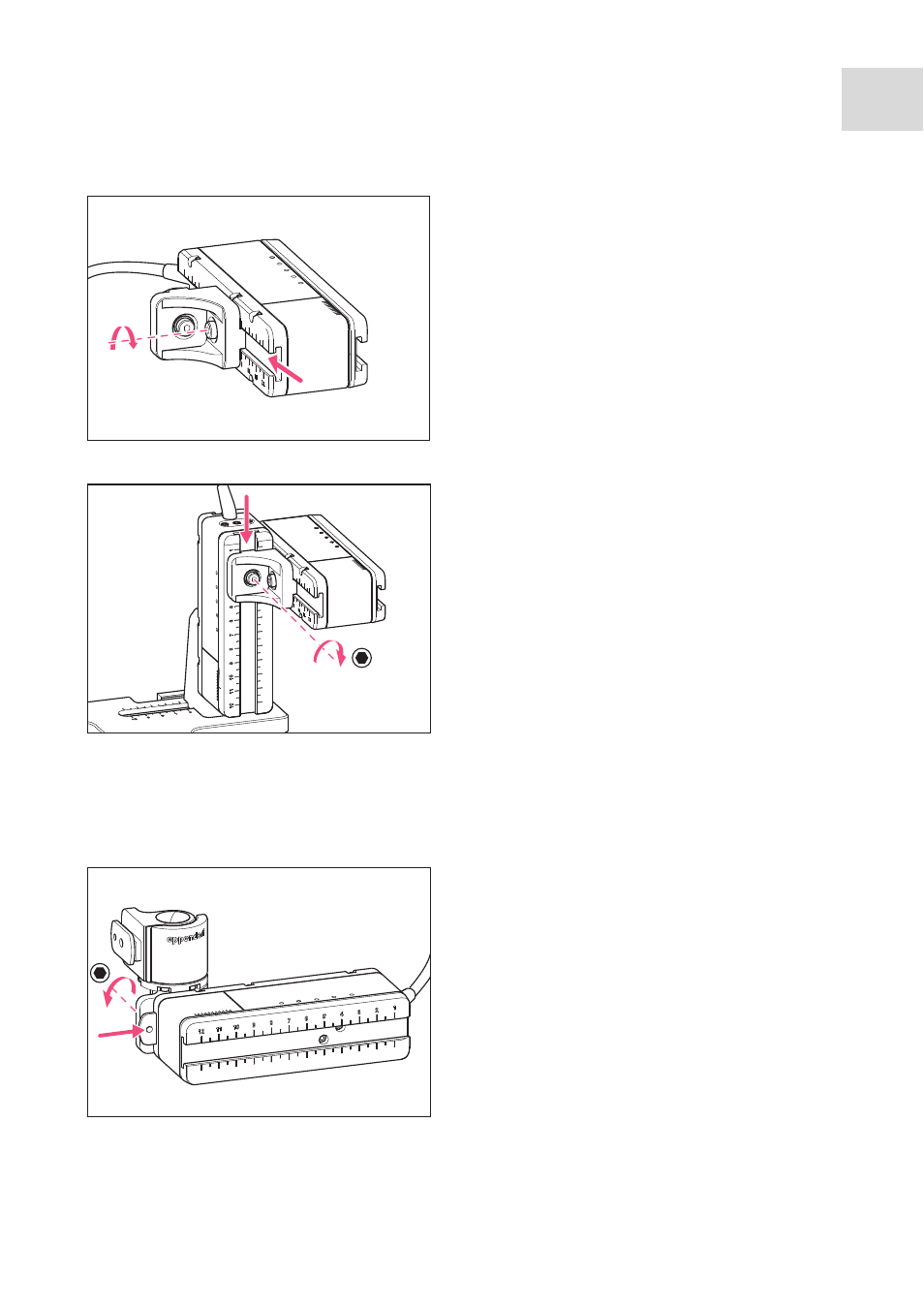

1. Push the YZ-connector onto the fixed rail
of the Y-module and tighten.
2. Push the Y-module with the
YZ-connector onto the Z-module and
tighten.
1. Push the swivel joint onto the fixed rail
of the X-module and tighten.
