Software
TransferMan

®

4r

English (EN)

5.1.2

Display of coordinates

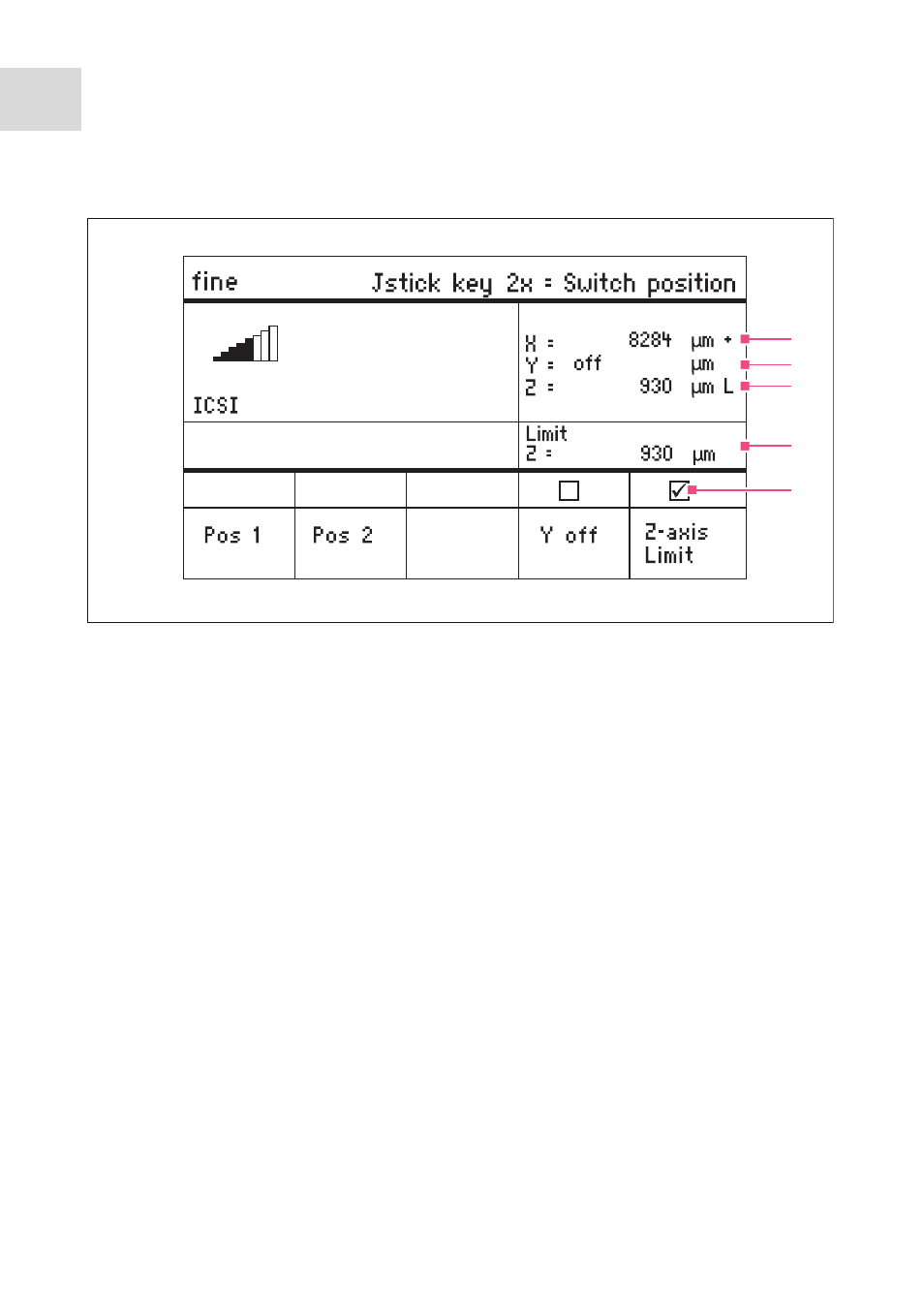

Abb. 5-2:Display of coordinates

Fig. 5-2:

Display of coordinates

1

Motor limit stop
+ = positive, - = negative

2

Axis is switched off

3

Lower limit (

Z-axis Limit

) reached

4

Display of lower limit

5

Downward limit is switched on

1
2

4

3

5
