50
Software
TransferMan
® 4r
English (EN)
5.2 Applications

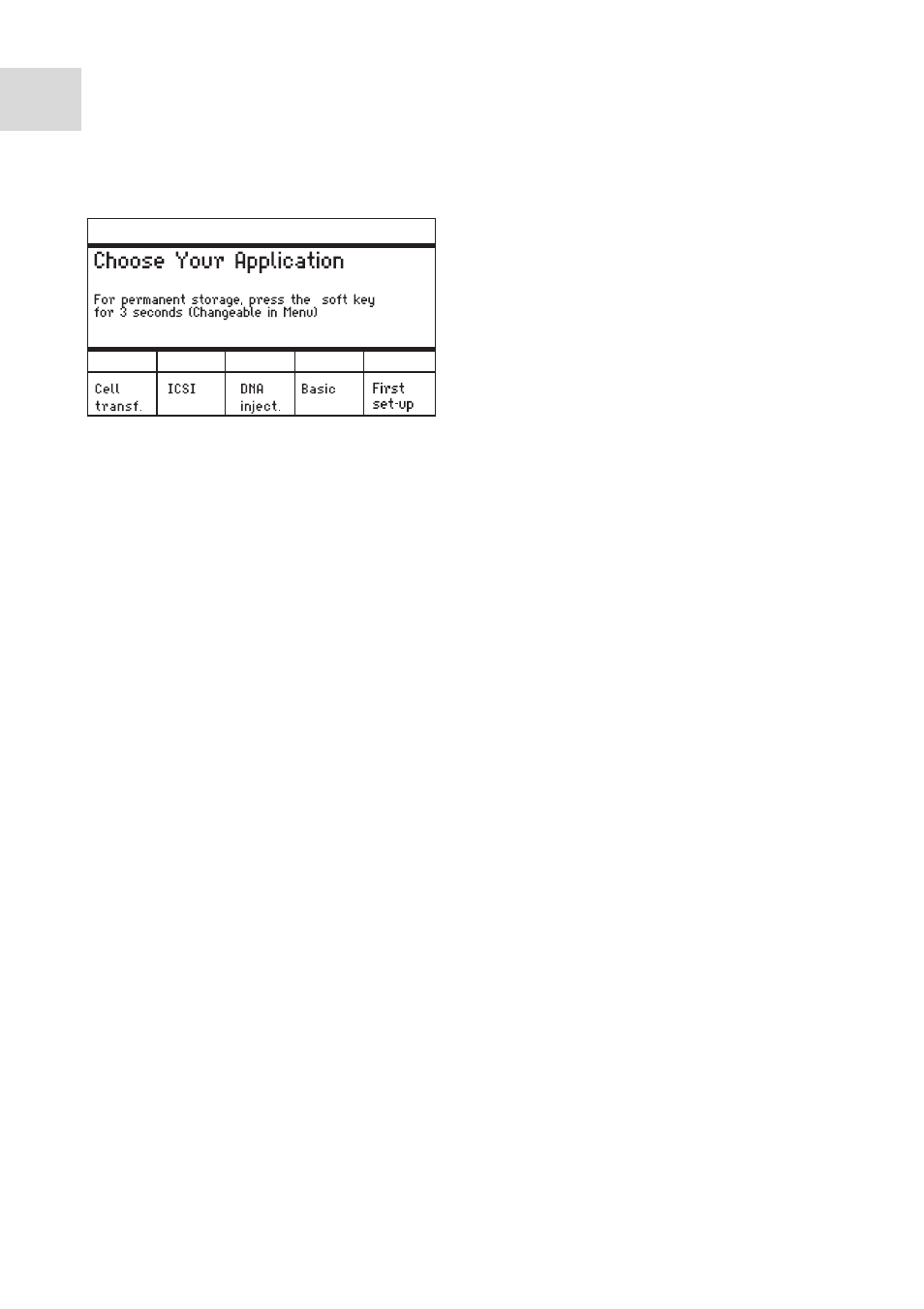

Abb. 5-4:Application screen
Fig. 5-4: Application screen
Application selection
• Select the application
• Store the main application
5.2.1 Application parameters
Predefined softkeys of the different applications.
• Pos 1 – Save the X, Y and Z values of the capillary position. Switch the position using
the joystick key.
• Pos 2 – Save the X, Y and Z values of the capillary position. Switch the position using
the joystick key.
• Pos 3 – Save the X, Y and Z values of the capillary position. Switch the position using
the joystick key.
• Y off – Switch off the movement of the capillary in the Y-axis. Prevents moving
sideways during injection.
• Z-axis Limit – Set the lower limit for vertical capillary movement.
• Axial – Switch on the capillary movement along the mounting bracket.
