Water

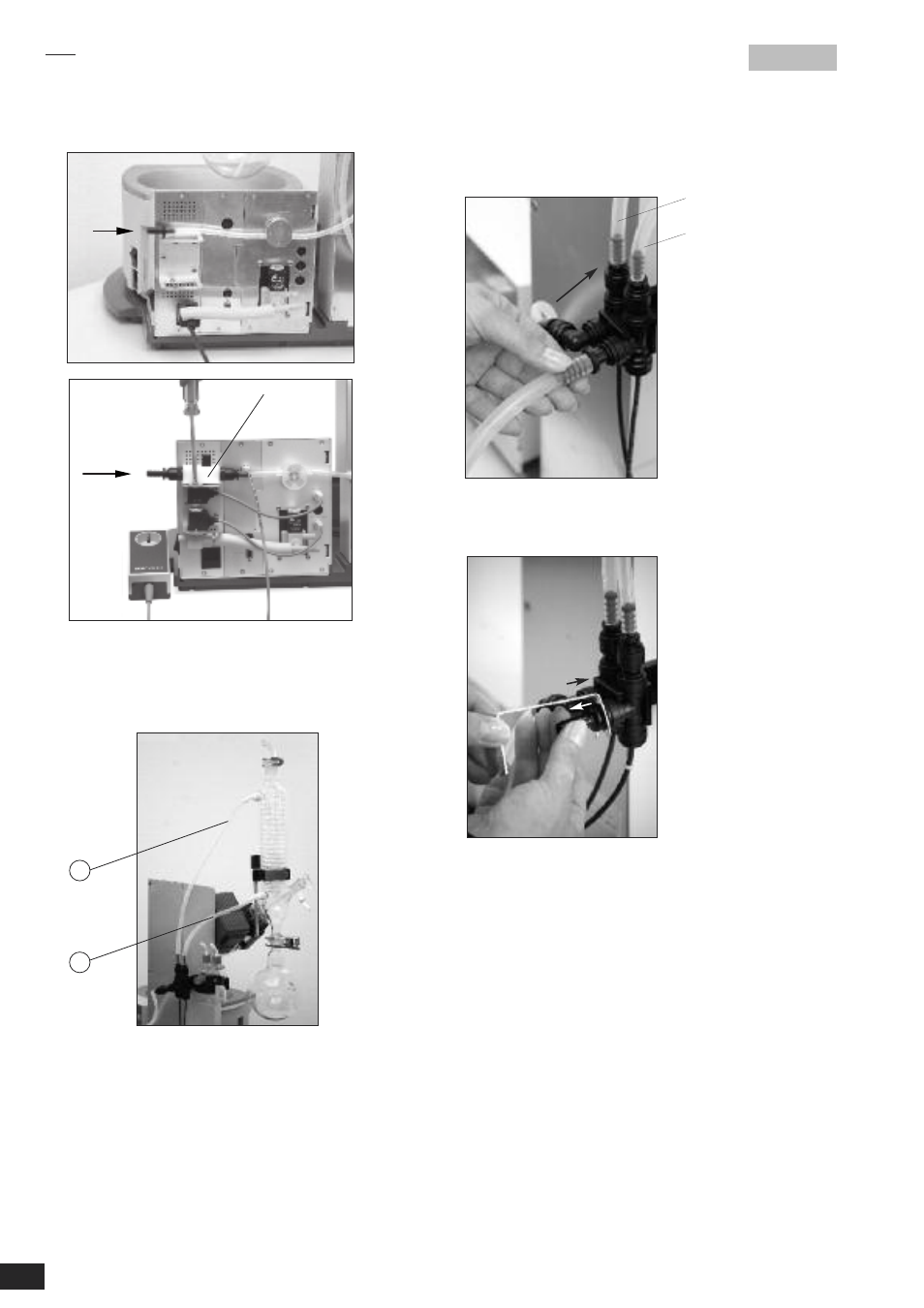

 Connect the water inlet to the water supply (Figure 16a; Figure 16b
with optional RV 10.5001 water regulator valve). Please refer to the
technical specifications relating to the water supply.
The RV 10.5001 water regulator valve is not suitable for use on the
condenser unit because it would reduce the flow rate too greatly.
 Connect the water hoses to the glass condenser (short hose (O)
= lower outlet, long hose (P) = upper inlet) and fix hoses in place
(fig. 17).
Note: For special condensers see “Description of special condensers”
section.
Water
inlet
Water
inlet
Fig. 16a
Fig. 16b
RV 10.5001
 Connect the water outlet hose (supplied) by pushing it onto the
nipple until the stop inside the connection socket is reached
(fig. 18).
Caution! Ensure that the condenser inlet and condenser outlet
are connected correctly.
Automatic distillation cannot be carried out if the water inlet and
outlet hoses are not fitted according to the instructions and illu-
strations acc. fig. 14, since this would cause the temperature rea-
dings for the inlet and outlet to be measured incorrectly.
 Release the hose connection using the supplied tool.
Fig. 17
Fig. 18
O
P
Inlet
condenser
Outlet
condenser
Fig. 19
