Removing the condenser
Use the ring spanner provided to loosen union nuts that are tightly
fitted.
Loosen the union nut by turning anticlockwise.
Description of special condensers
• RV 10.3 Vertical-intensive condenser with manifold
This vertical-intensive condenser features a double jacket design
for particularly efficient condensation.
Also available with coating (RV 10.30)
• RV 10.4 Dry ice condenser
Dry ice condenser for distilling low-boiling solvents.
Cooling by dry ice, no cooling water required. Maximum conden-
sation thanks to low temperatures.
Also available with coating (RV 10.40)
If a dry ice condenser is used, then the flow rate control system
must be switched of in menu “Distillation”, menu option “Flow
rate control”; see also “Commissioning” section.
• RV 10.5 Vertical-condenser with manifold and cut-off valve for
reflux distillation
Also available with coating (RV 10.50)
• RV 10.6 Vertical-intensive condenser with manifold and cut-
off valve for reflux distillation
This vertical-intensive action condenser features a double jacket
design for particularly efficient reflux distillation.
Also available with coating (RV 10.60)
Fig.13
4
7
8
6
12
9
3
10
5
13
15
16
Rotary head
Glassware
RV 10.2 diagonal
RV 10.20 diagonal, coated
Glassware
RV 10.1 vertical
RV 10.10 vertical, coated
Rotary head
2
1
0
0
0
m
l
N
S
2
9
/3
2
1
11
13
12
5
4
7
8
6
15
9
3
2
10
16
11
1
1
0
0
0
m
l
N
S
2
9
/3
2

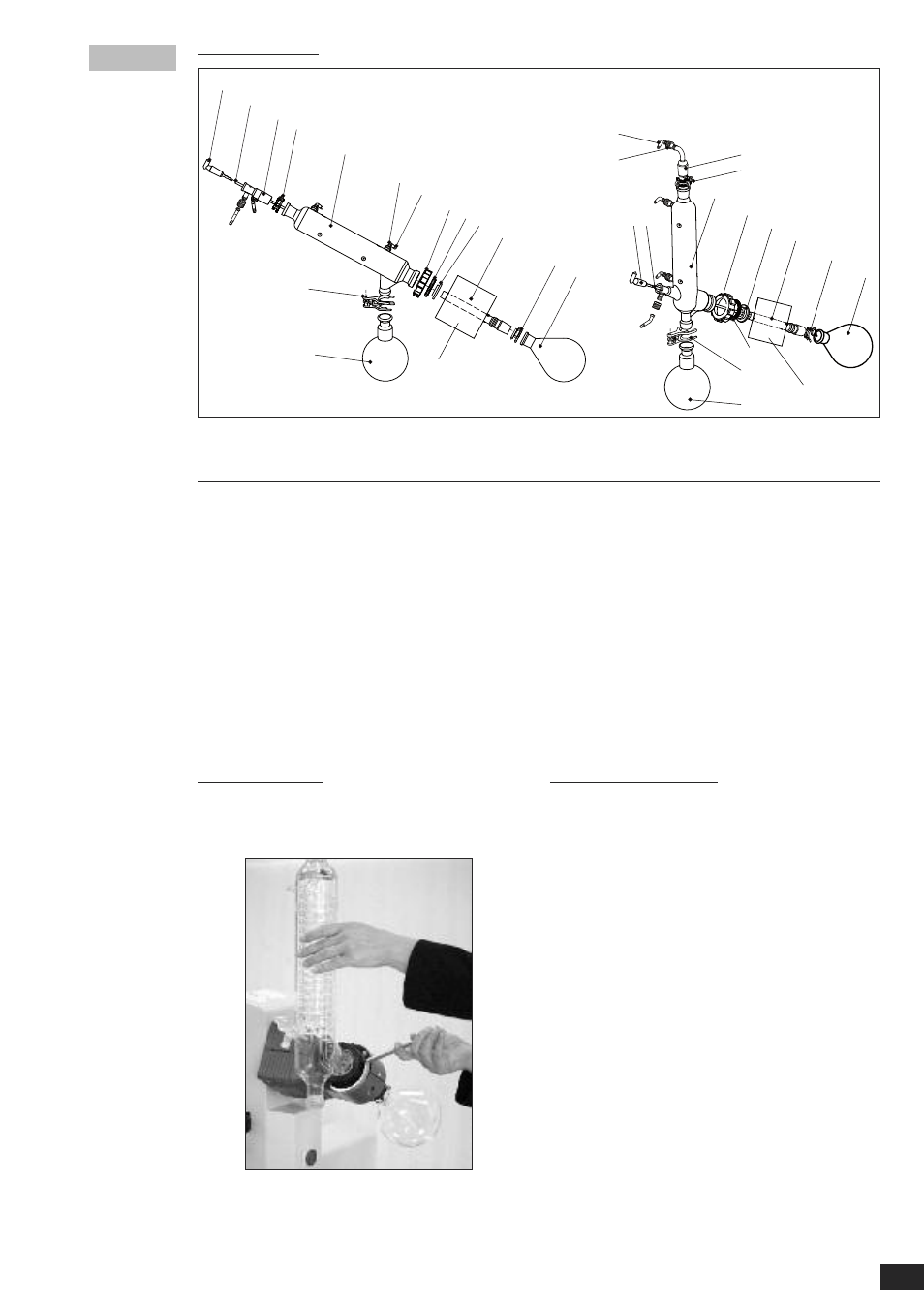

Mounting the glassware
Item
Designation
Quantity
Quantity
diagonal glassware
vertical Glassware
1
Receiving flask
1
1
2
Clamp NS 29 (stainless steel)
1
1
3
Steam pipe
1
1
4
Stopcock
1
1
5
Pipe tube
1
1
6
Condenser
1 Diagonal condenser
1 Vertical condenser
7
Connection
1 Introduction sleeve
1 Vacuum connection
8
Clamp NS 29 (plastic)
1
1
9
Seal RV 06.13/ RV 06.15
1
1
10
Evaporator piston 1000 ml
1
1
11
Ball joint clamp RV 05.10
1
1
12
Screw joint cap
4
4
13
Hose connection
4
4
15
Locking nut
1
1
16
Spring ring
1
1
