Vacuum

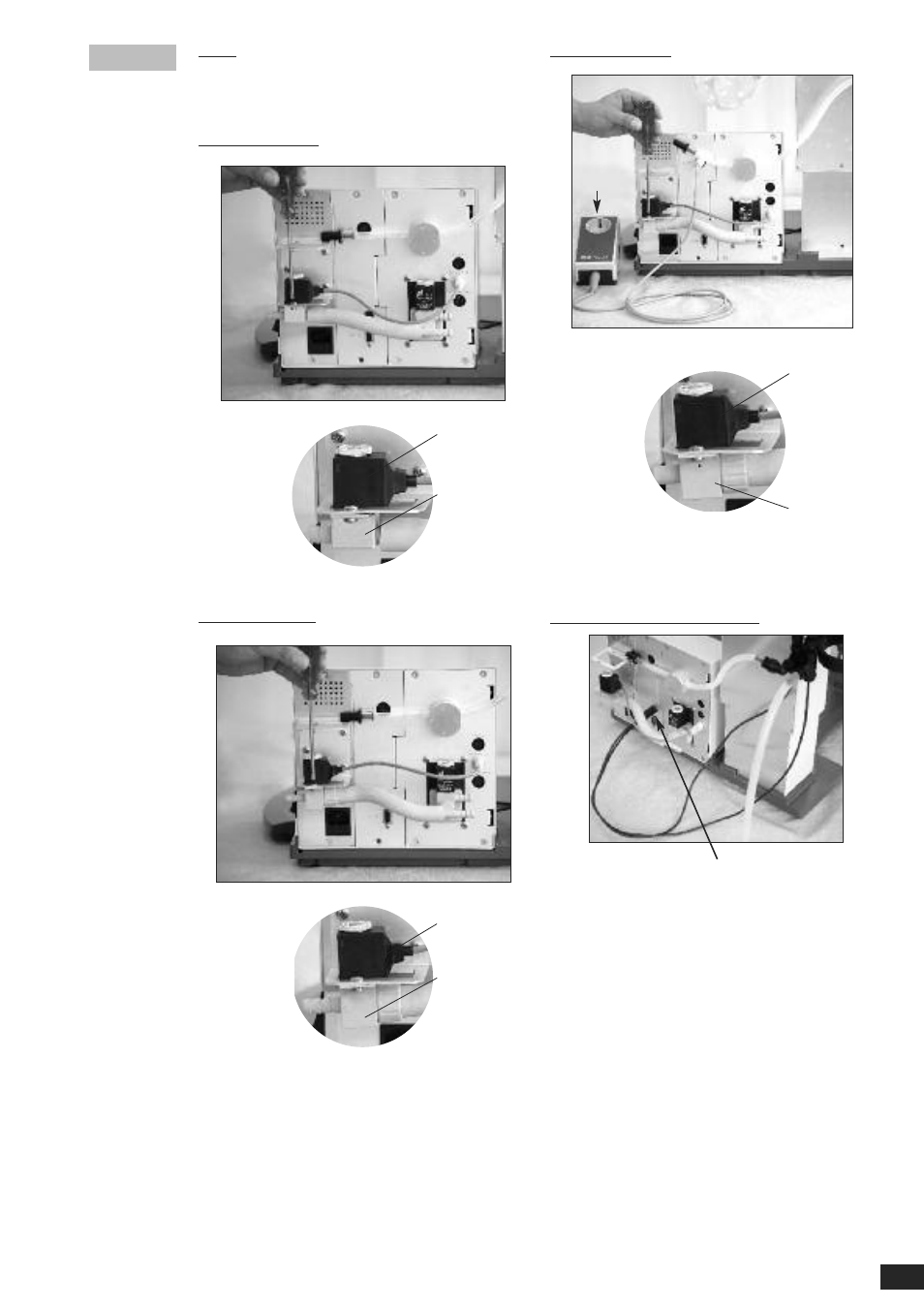

 Fit one of the optional RV 10.4001, RV 10.4002 or RV1 0.4003 va-
cuum valves, as appropriate for the type of vacuum system used, in
the bracket provided for this purpose and connect the vacuum hose
to the valve (Figure 15a, b, c).
Connection RV 10.4001
Connection RV 10.4002
Connection RV 10.4003
Connection RV10 temperature sensor (dT)
Note the direction of the arrow.
Fig. 15a
Fig. 15b
Fig. 15c
Fig. 15d
dT
Power
supply
pump
Solenoid rotates freely
Direction of suction
corresponds to the
arrow marking.
Always check for cor-
rect orientation.
Solenoid rotates freely
Direction of suction
corresponds to the
arrow marking.
Always check for cor-
rect orientation.
Solenoid rotates freely
Direction of suction
corresponds to the
arrow marking.
Always check for cor-
rect orientation.
