• Cooling coil
When the set temperature is close to the ambient tem-
perature, the cooling coil should be used for counter-
cooling due to the self-heating.
Connect the water supply and return line hoses to the
cooling coil connectors (see Fig. 4). For bath temperatures > 95 °C do not use the cooling coil
with water.
For bath temperatures > 60 °C make sure that the flow
rate through the cooling coil is high enough, to avoid
excessive calcification.
Operator panel and display
B C
A
D
K J I G E M F

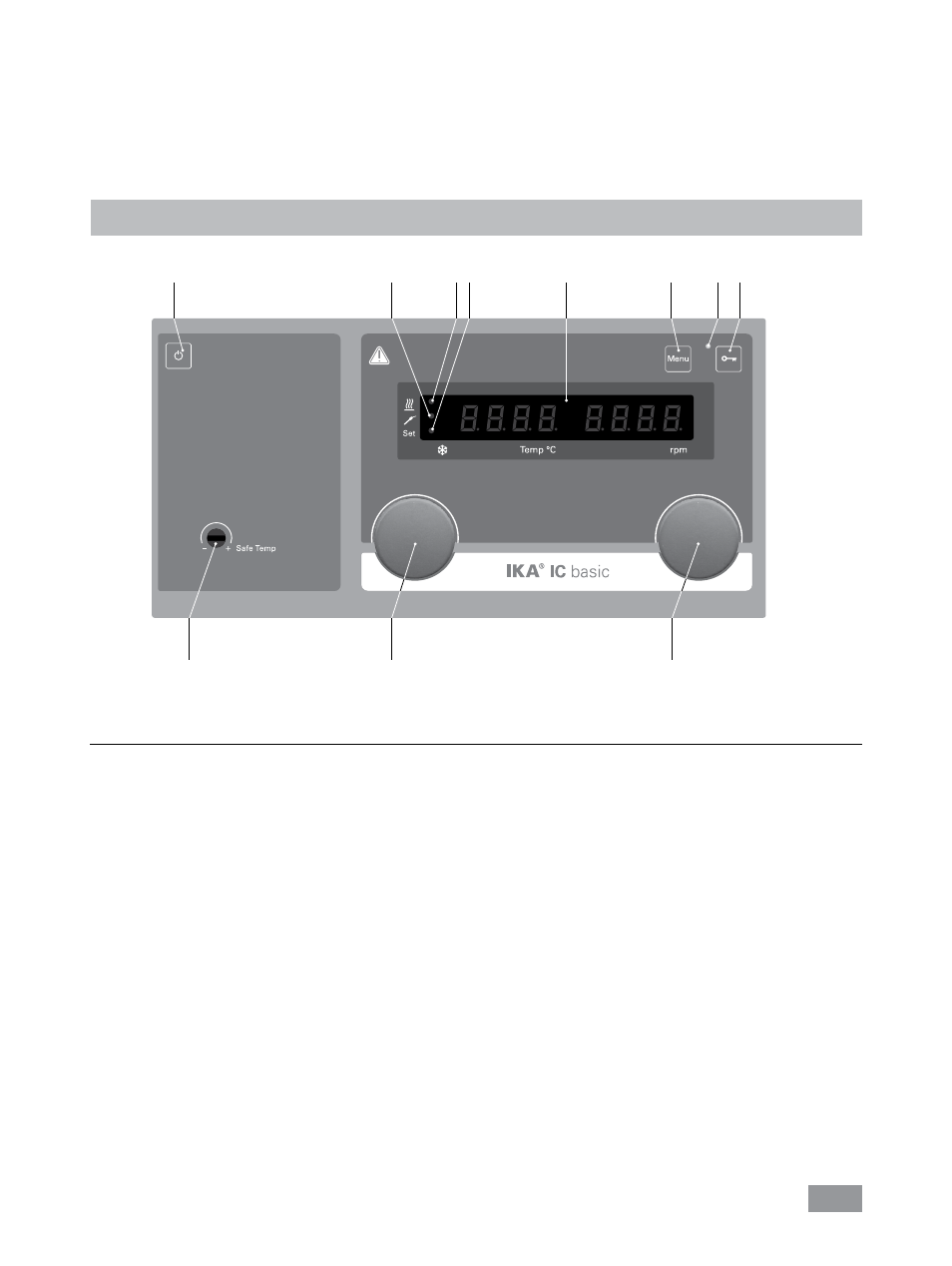

Fig. 12
Item Designation Function
A ON/OFF button: Switch on/off the circulator.
B Rotating/pressing knob: Set the temperature value.
Start/stop the heating function.
Navigation, selecting the settings in the menu.
C Rotating/pressing knob: Set the pump speed value.
Start/stop the pump function.
Set and confirm the menu options.
D Adjustable safety circuit: Adjust the safety temperature limit with delivered screwdriver.
E Menu button: Press it once: menu option is display.
Press it a second time: back to the working screen.
F Key button: Lock/unlock keys and knobs.
G LED display: Display the settings and actual values.
I LED, heater: Indicate the heating function is activated.
J LED, temperature sensor: Indicates that an external temperature sensor is connected.
K LED, set: The LED lights up at the same time as the set value is displayed.
M LED, key button Indicates that the function of keys and knobs is deactivated.
