Unpacking
• Unpacking
- Please unpack the device carefully
- In the case of any damage a detailed report must be sent
immediately (post, rail or forwarder).
Transport safety
- Remove the transport protection
under the buoyage (4). For HBC
device, you need to open the lid
(16) and remove the protection.
• Delivery scope
IC basic, HBC basic, HBC 10 basic
- IC baisc Immersion Circulator or HBC 5 basic Heating
Bath Circulator or HBC 10 basic Heating Bath Circulator
according to the order
- Mains cables H 12
- Hose olive NW 12 (2 pieces) see Fig. 5
- Screwdriver (use for safety circuit) see Fig. 6
- Operating instructions
- Warranty card.
Preparations
• Setting up
- Place the device on an even, stable, clean, nonslip, dry
and fireproof surface.
- Keep at least 20 cm of open space at the front and
rear side.
- When a plastic bath is used, please ensure that the heat-
er does not contact the bath.
- The place for installation should be large enough and
provide sufficient air ventilation to ensure the room
does not warm up excessively because of the heat
from device radiates to the environment.
- Do not set up the device in the immediate vicinity of
heat sources and do not expose to sun light.
• Connecting the tubings
- Unscrew the union nuts and stoppers using a wrench
from the pump connection IN (8) and OUT (9).

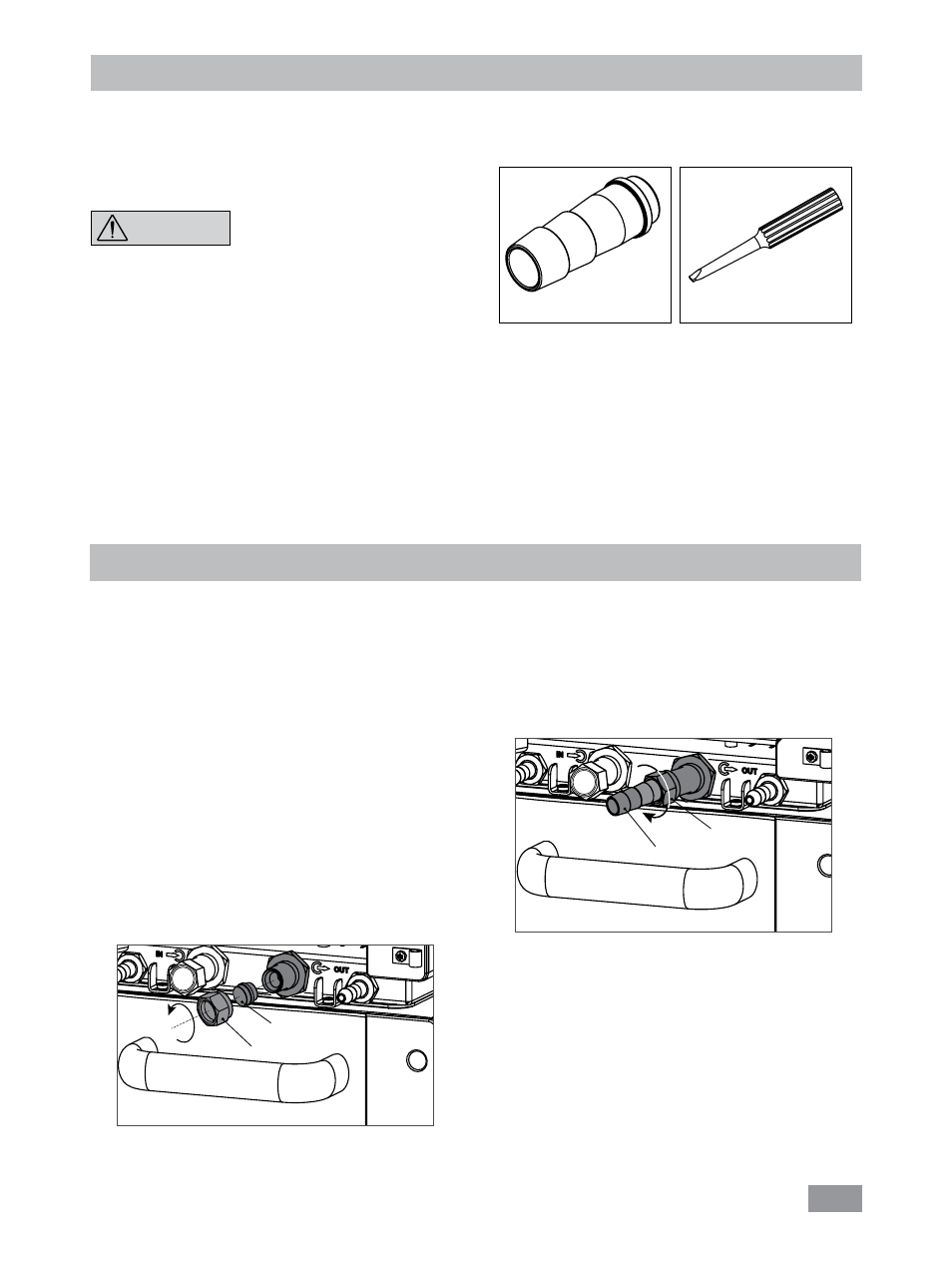

Fig. 6 Fig. 5
Additional for HBC 5 basic / HBC 10 basic:
- Temperature sensor Pt 100.30.
- Connect the hoses for circulating the external system to
the pump connectors M 16 x 1 for IN and OUT directly
or with the olives.
- Screw the hose olive to the pump connection IN and
OUT with union nuts. Slide the hoses (NW 12) onto the
olives. The hoses must be secured with suitable clamps.
Note: Please note the permissible temperature range of hos-
es. For hot fluids we recommend the IKA ® LT 5.20 hoses.
When the external system is not necessary, please seal the
pump connectors IN and OUT with the existing union
nuts and stoppers.
Stopper
Union nut
Hose olive
Union nut
Fig. 7
Fig. 8
CAUTION
