Brocade DCX 8510-4 Backbone Hardware Reference Manual
93
53-1002177-05
Inter-chassis link (QSFP) cable removal and replacement
5
8510 chassis can be connected in a core/edge configuration.
shows two core and four
edge chassis. Although 8510-8 chassis are shown in the figure, the chassis can be either 8510-4
or 8510-8. The cabling scheme should follow the parallel example shown in the
. Each
line in the example actually represents four cables running between the chassis.

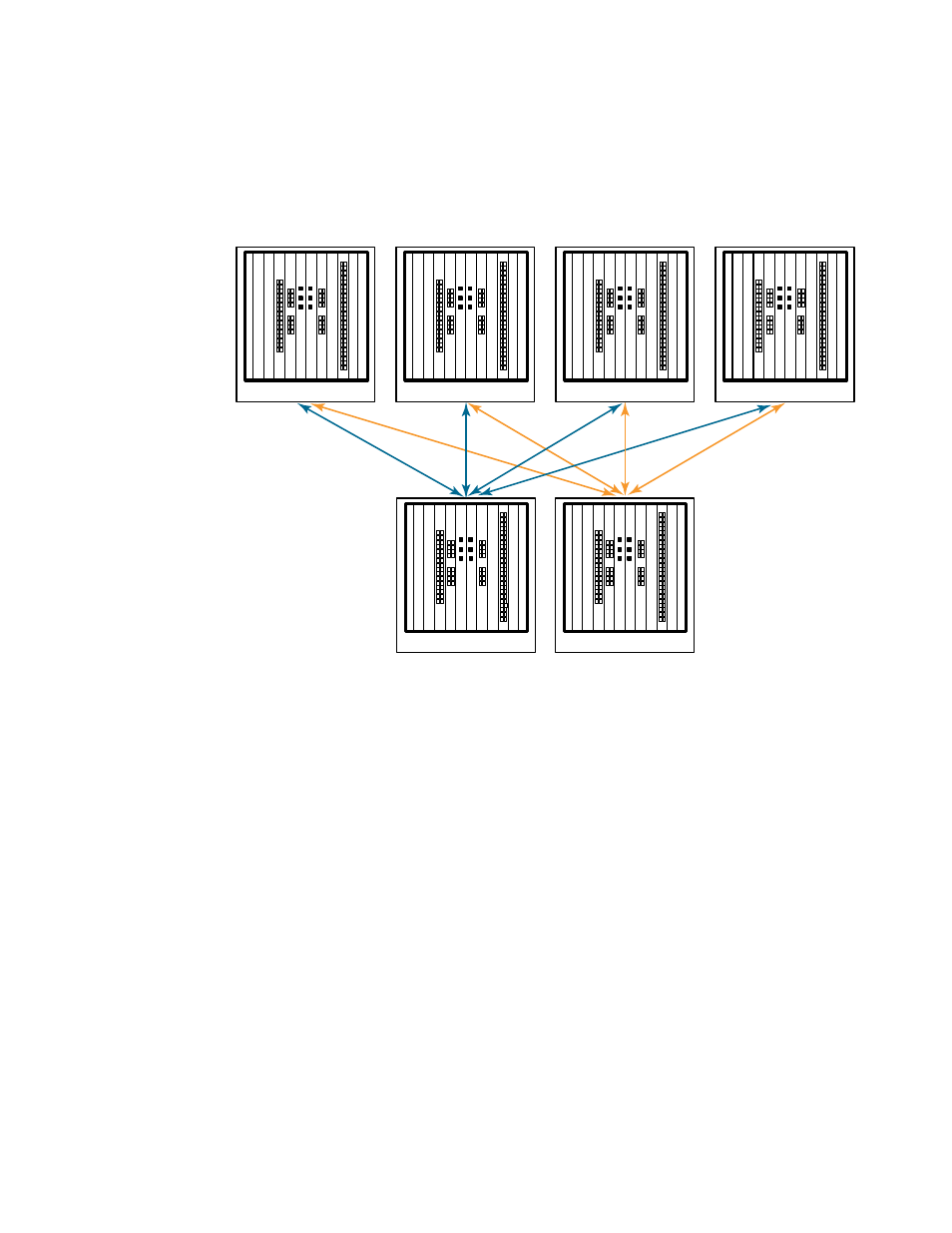

FIGURE 34
DCX 8510 core/edge ICL topology
