82 Brocade DCX 8510-4 Backbone Hardware Reference Manual
53-1002177-05
WWN card removal and replacement
5

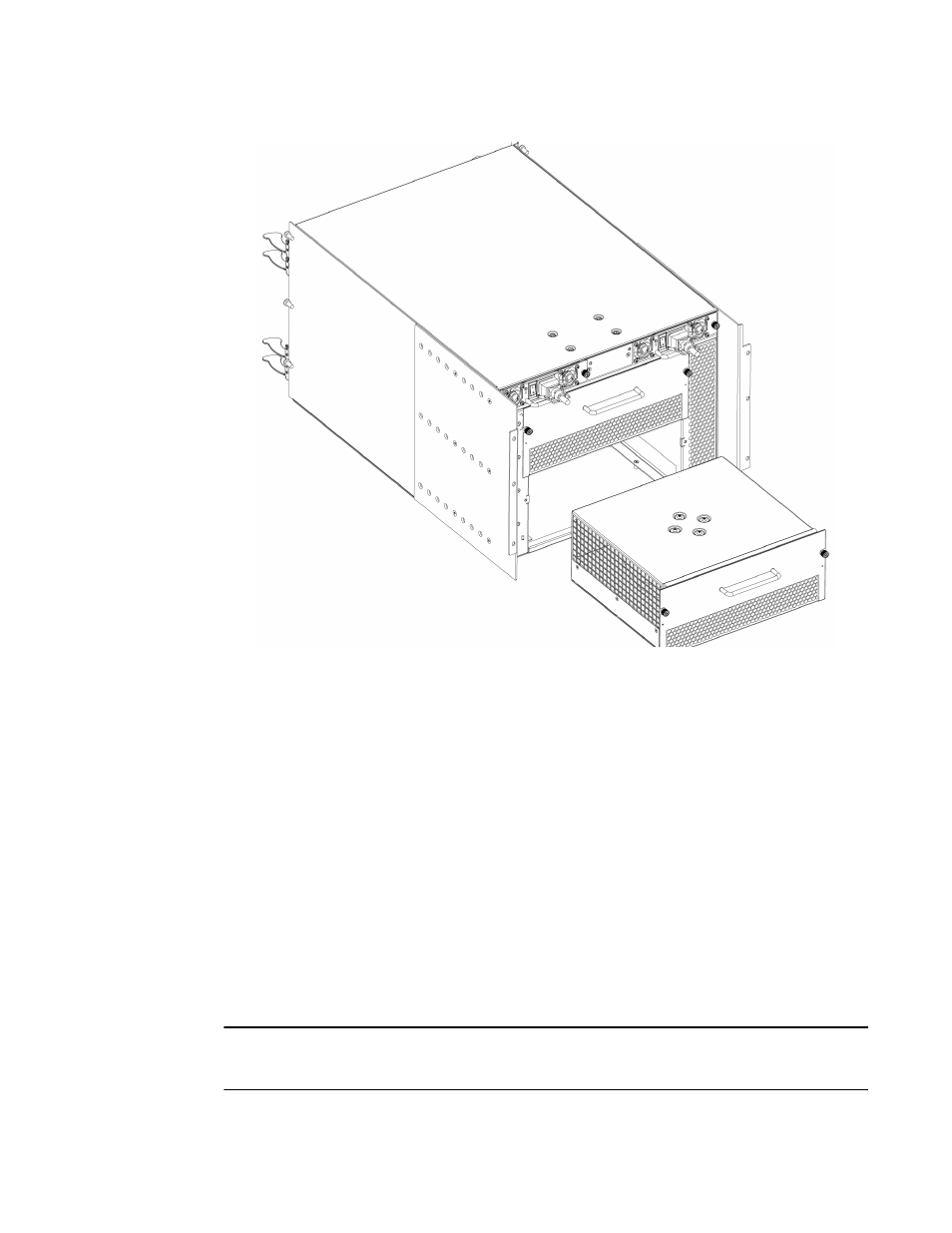

FIGURE 26 Removal and replacement of the blower assembly
‘
Replacing a blower assembly
Complete the following steps to replace the blower assembly in a chassis.
1. Orient the blower assembly and slide it into the chassis, pushing firmly to ensure that it is
seated.
2. Verify that the power LED displays a green light.
3. Use the screwdriver or your fingers to tighten the captive screws.
WWN card removal and replacement
Use this procedure to remove and replace a WWN card.
NOTE
The World Wide Name (WWN) cards contain fully redundant circuits and normally do not require
replacement. Two WWN cards are located beneath the WWN bezel (logo plate).
