AEM 30-8761 CAS Trigger Disc User Manual
Page 9
Page 9 of 25

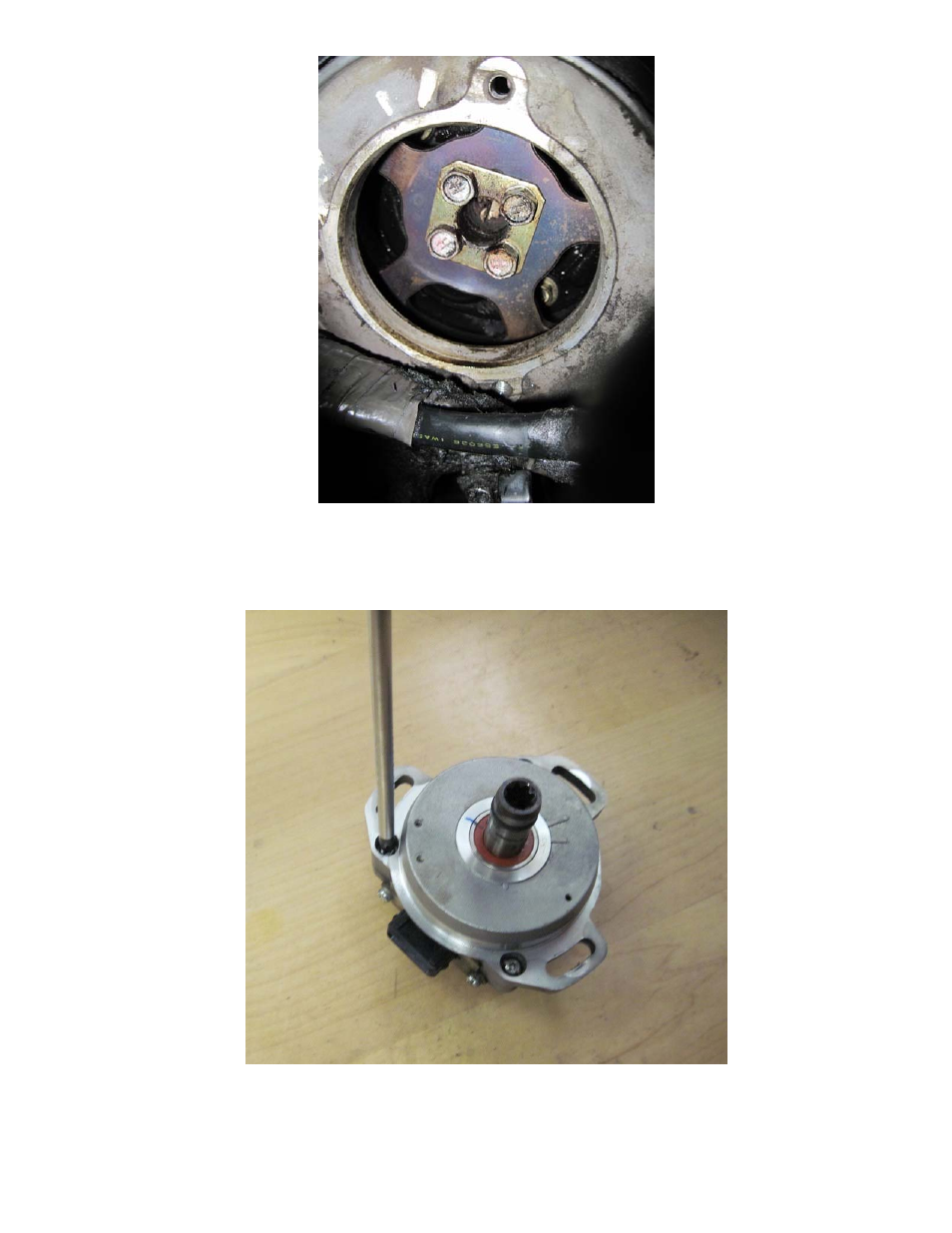

Figure 13: CAS sensor removed
Remove the three screws holding the CAS assembly together using a ¼” flat
screwdriver (use the flat screwdriver since these screws are tightly installed, but soft)
as shown in figure 14.
Figure 14: Taking apart CAS assembly using number 2 Phillips screwdriver
