AEM 30-8761 CAS Trigger Disc User Manual
Page 22
Page 22 of 25
Reinstall the screws that hold on the plastic CAS sensor with some threadlocker to the
metal housing taking extreme care not to bend the trigger disc. This can be accomplished
by lightly pulling the shaft as shown in figure 39.

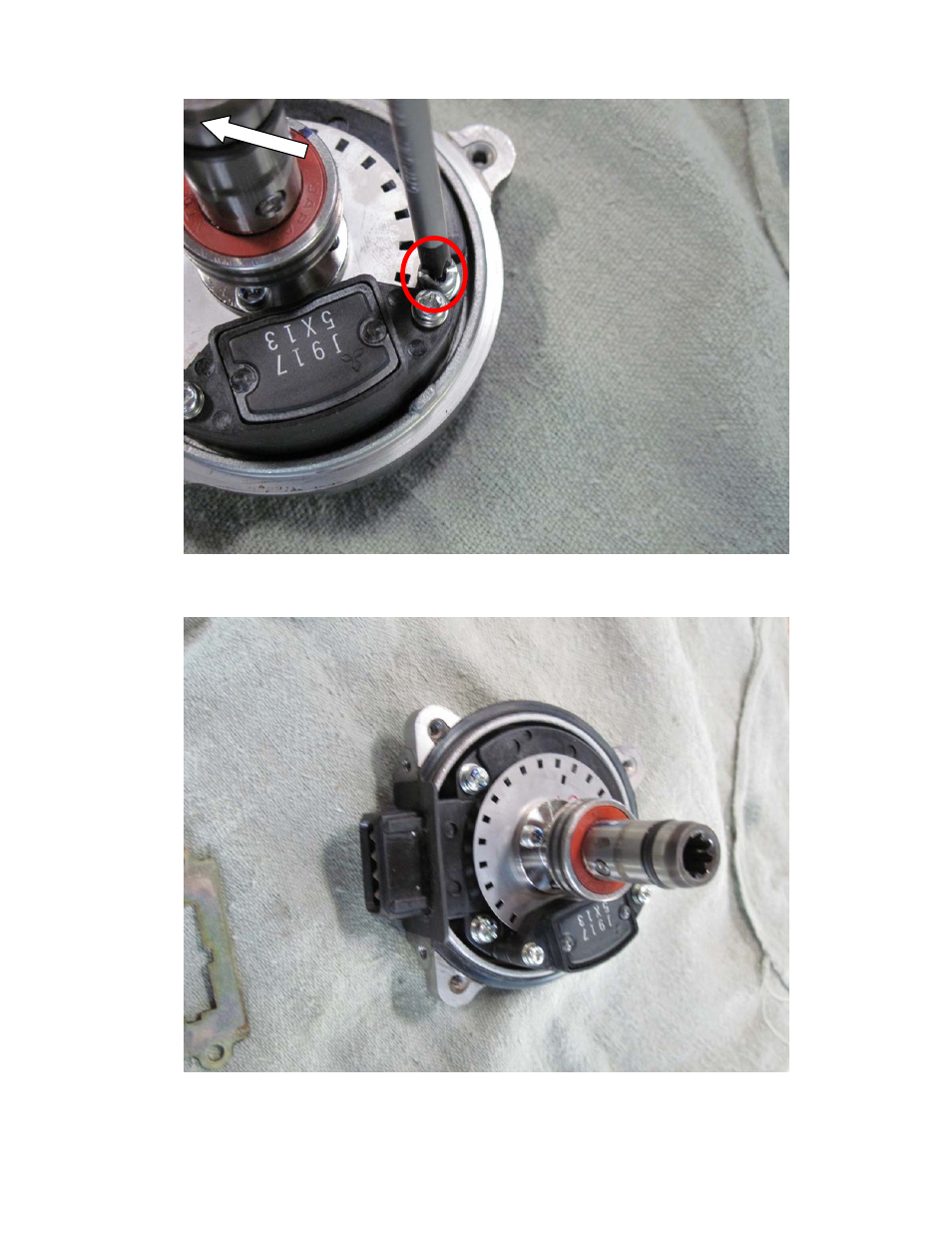

Figure 39: Reinstallation of CAS sensor screws
Reinstall rubber seal for housing as shown in figure 40.
Figure 40: CAS rubber seal reinstalled
