AEM 30-8761 CAS Trigger Disc - Manual (Page 10)

Page 10 of 25
Remove screws holding the seal cover onto the assembly using a ¼” flat screwdriver
as shown in figure 15.

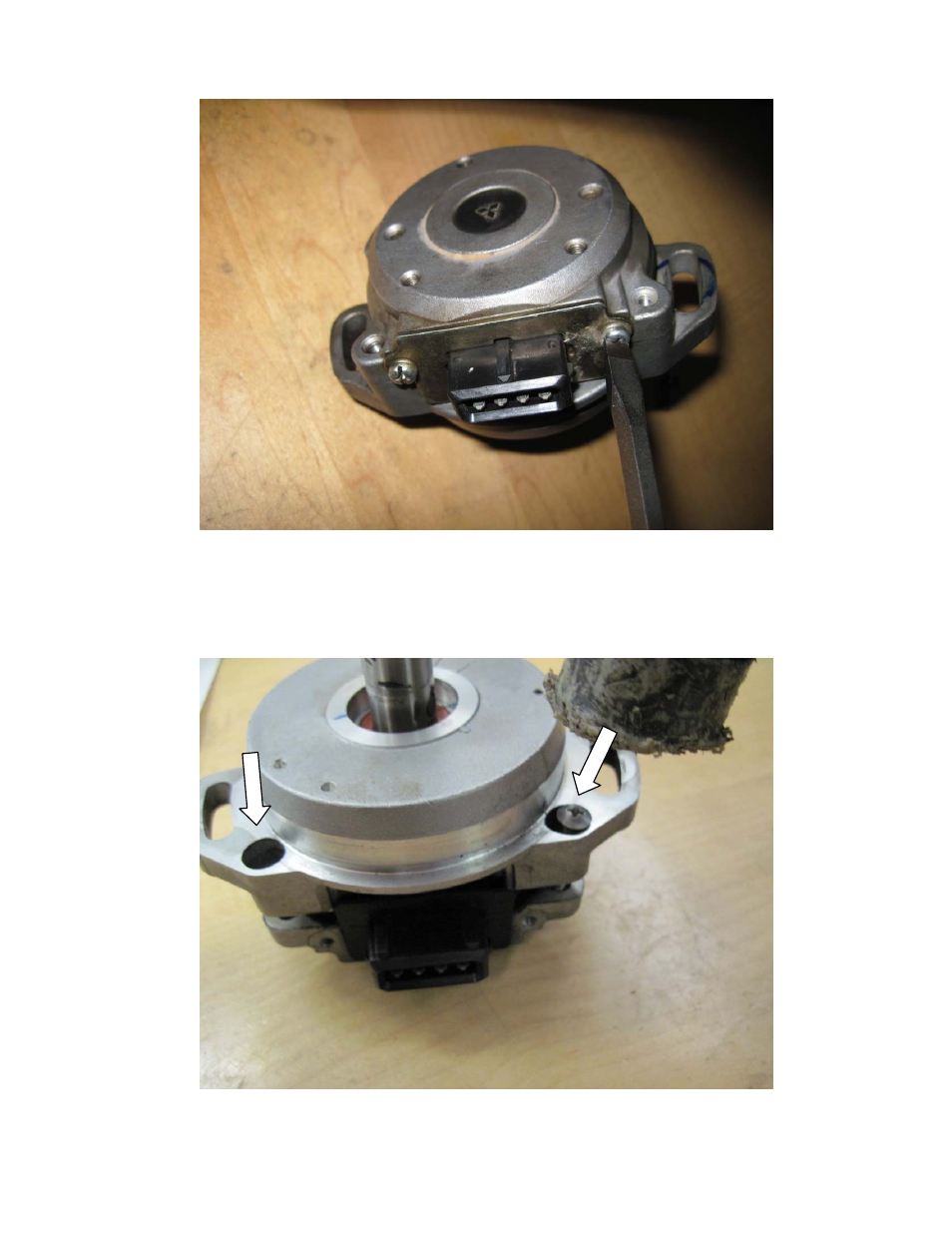

Figure 15: Removing seal cover on CAS assembly using ¼” screwdriver
Screw in the M4x45mm cap screws so that plenty of threads are engaged and lightly
tap the three bolts evenly using a mallet so that the assembly will separate as shown
in figure 16. If prying between the two halves is necessary as shown in figure 17, be
extremely careful not to damage the sensor inside or the rubber seal.
Figure 16: Using cap screws and mallet to loosen/remove cover
