AEM 30-8761 CAS Trigger Disc - Manual (Page 21)

Page 21 of 25

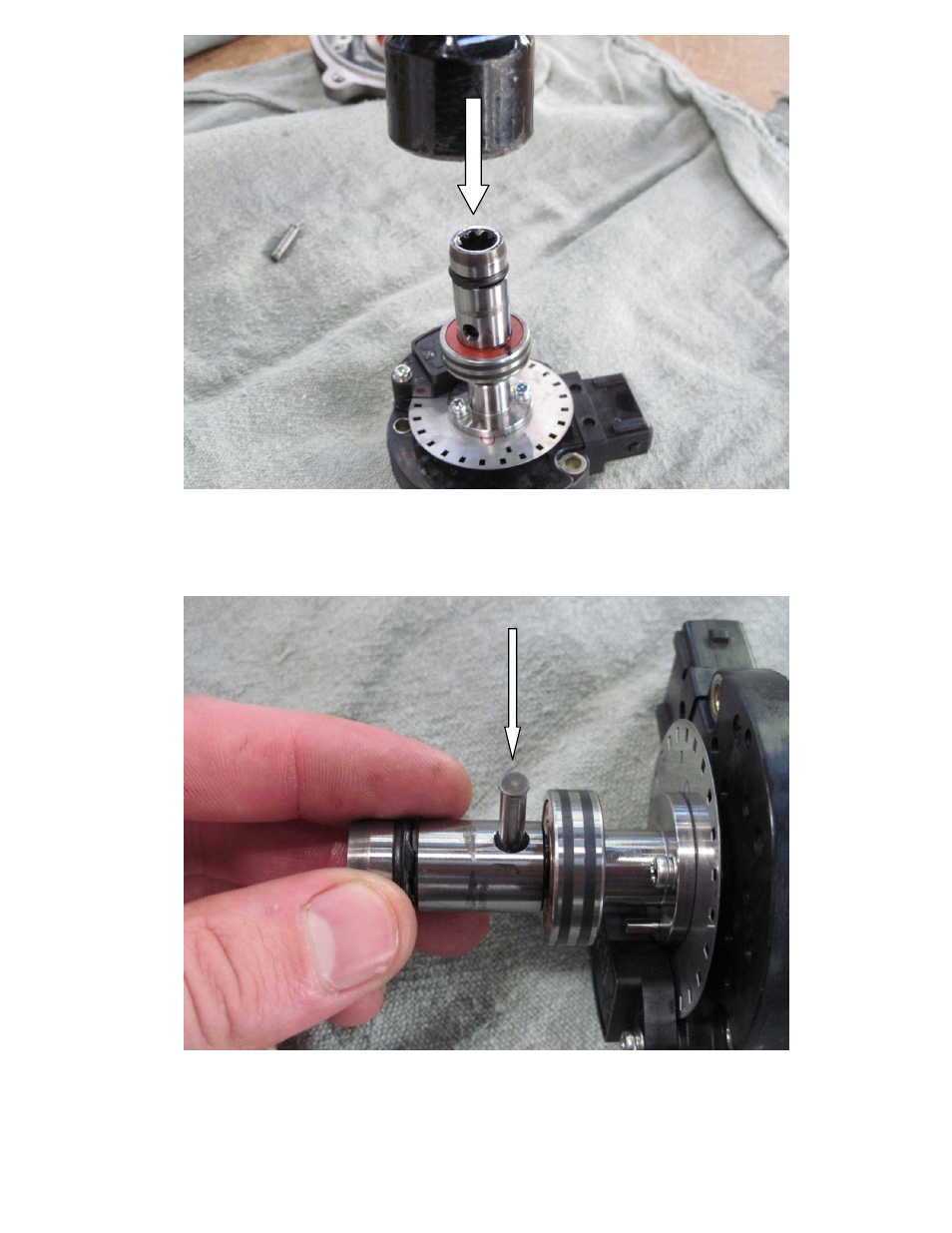

Figure 37: Hammering star socket to press on socket and bearing
Similar to the removal of the pin, the reinstallation of the pin requires hammering the pin
back into the hole on the star socket as shown in figure 38 Note: The socket must be
aligned relative to the shaft before performing this step.
Figure 38: Aligning the star socket retaining pin
