AEM 30-8761 CAS Trigger Disc User Manual
Page 11
Page 11 of 25

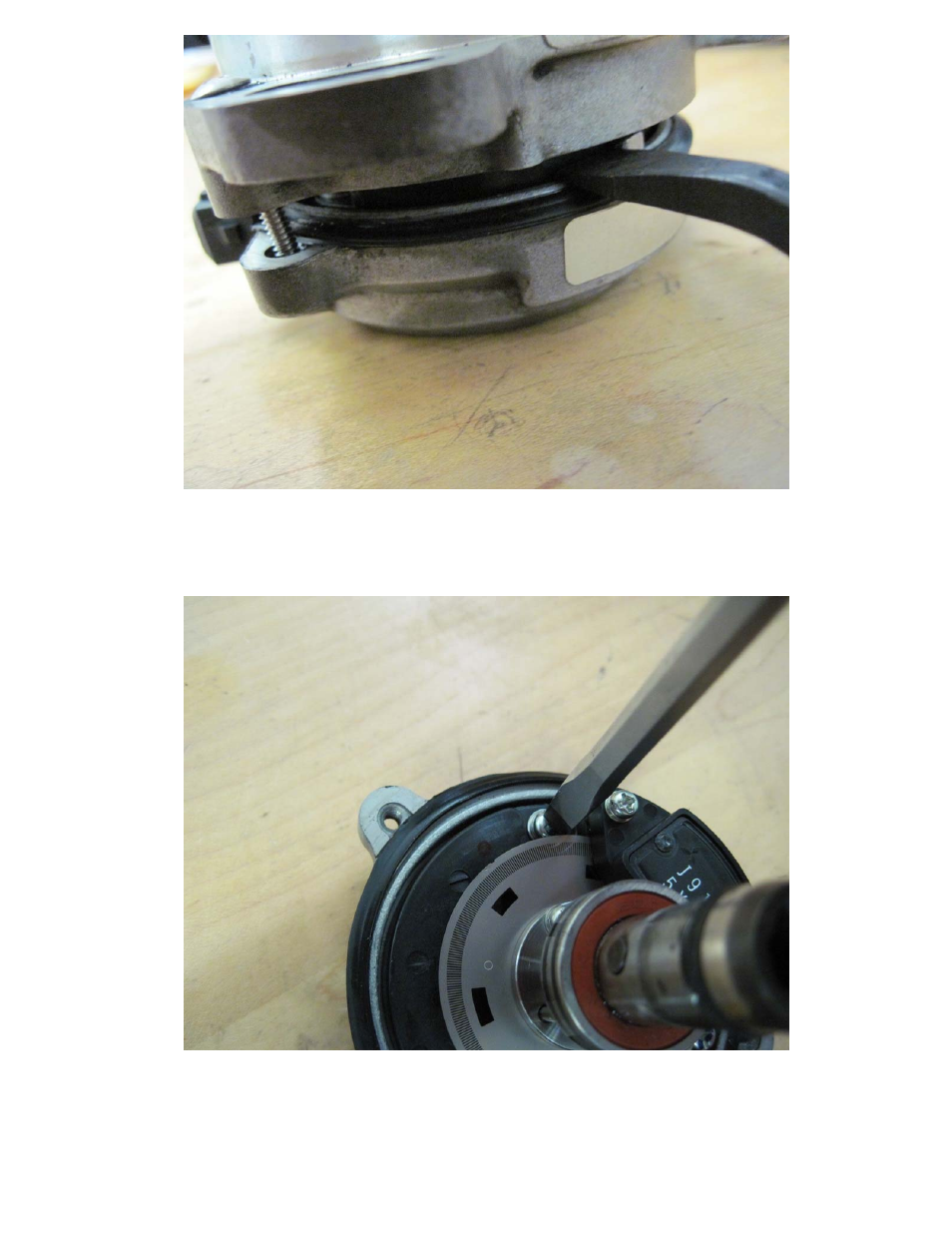

Figure 17: Using prybar to remove cover
Remove the 3 screws holding the CAS sensor onto the assembly as shown in figure
18 as well as the rubber seal shown in figure 19. Make sure that you do not remove
the screws in figure 20 because this may render the CAS sensor useless.
Figure 18: Remove 3 screws holding sensor using ¼” flat screwdriver
