AEM 30-8761 CAS Trigger Disc User Manual
Page 24
Page 24 of 25

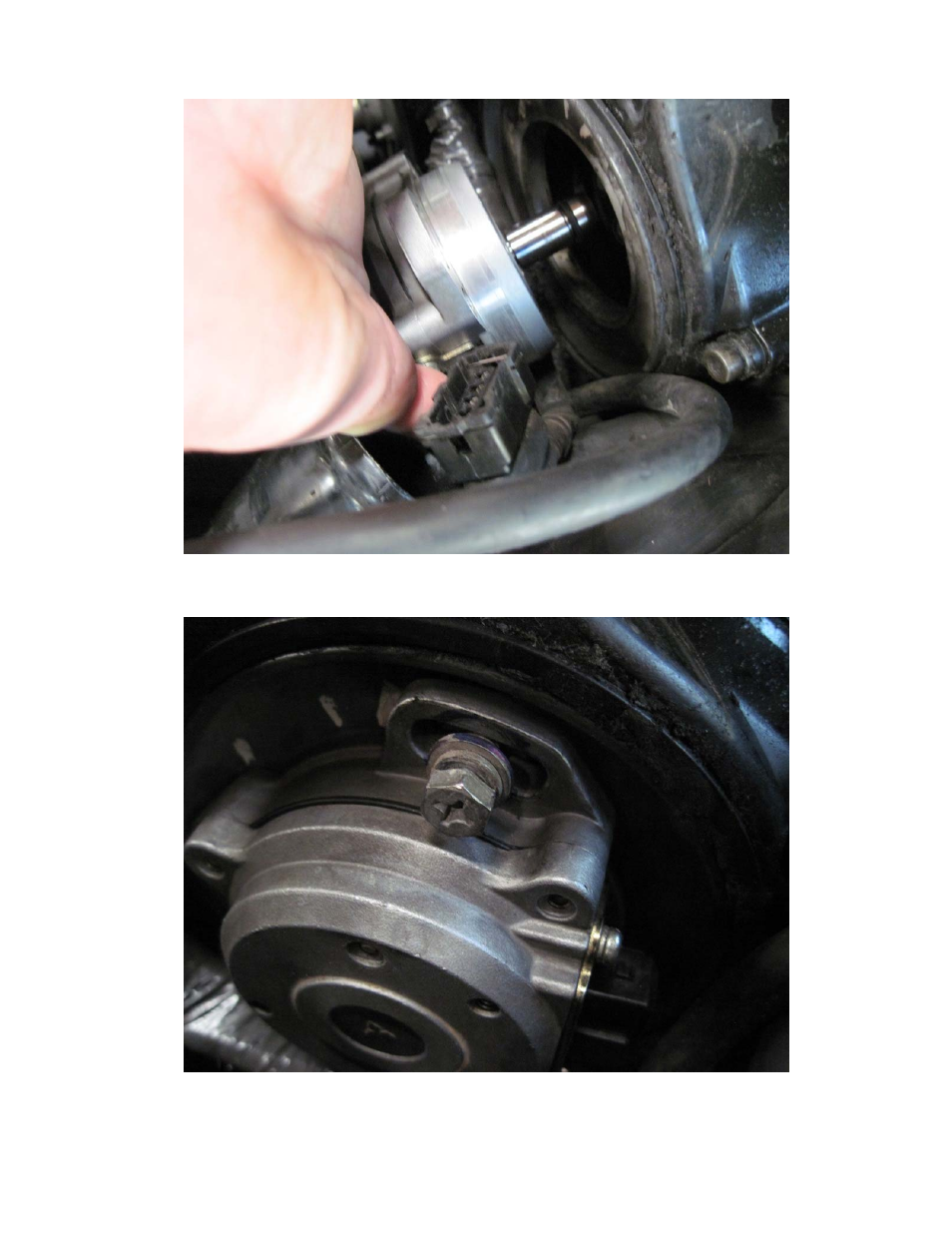

Align the CAS sensor with the mark you made at the beginning of the instructions or
alternatively, look at the cam and align the sensor with the groove in the cam. Make sure
that the sensor is seated properly before reinstalling the bolts. See figure 43.
Figure 43: Reinstalling the CAS sensor
Align bolts with previously made markings and tighten as shown in figure 44.
Figure 44: Reinstalling CAS sensor bolts
