Switched +12 vdc connection, Tps connection – AEM 30-1931 Universal Fuel Ignition Controller 8 Channel User Manual
Page 7
Page 7
SENSOR
ECU
FIC
NERNST CELL
O21 +
WIDE BAND O2 SENSOR CONNECTION
TO FACTORY HARNESS
POWER
Connect the F/IC power wire. See Figure 10.
ECU
FIC
SW +12V
TO SWITCHED +12V
IGN PW
R
SWITCHED +12 VDC CONNECTION
Connect the TPS signal to the F/IC. See Figure 11.
SENSOR
ECU
FIC
VREF
TPS
+
TPS CONNECTION
GND
SIGNAL

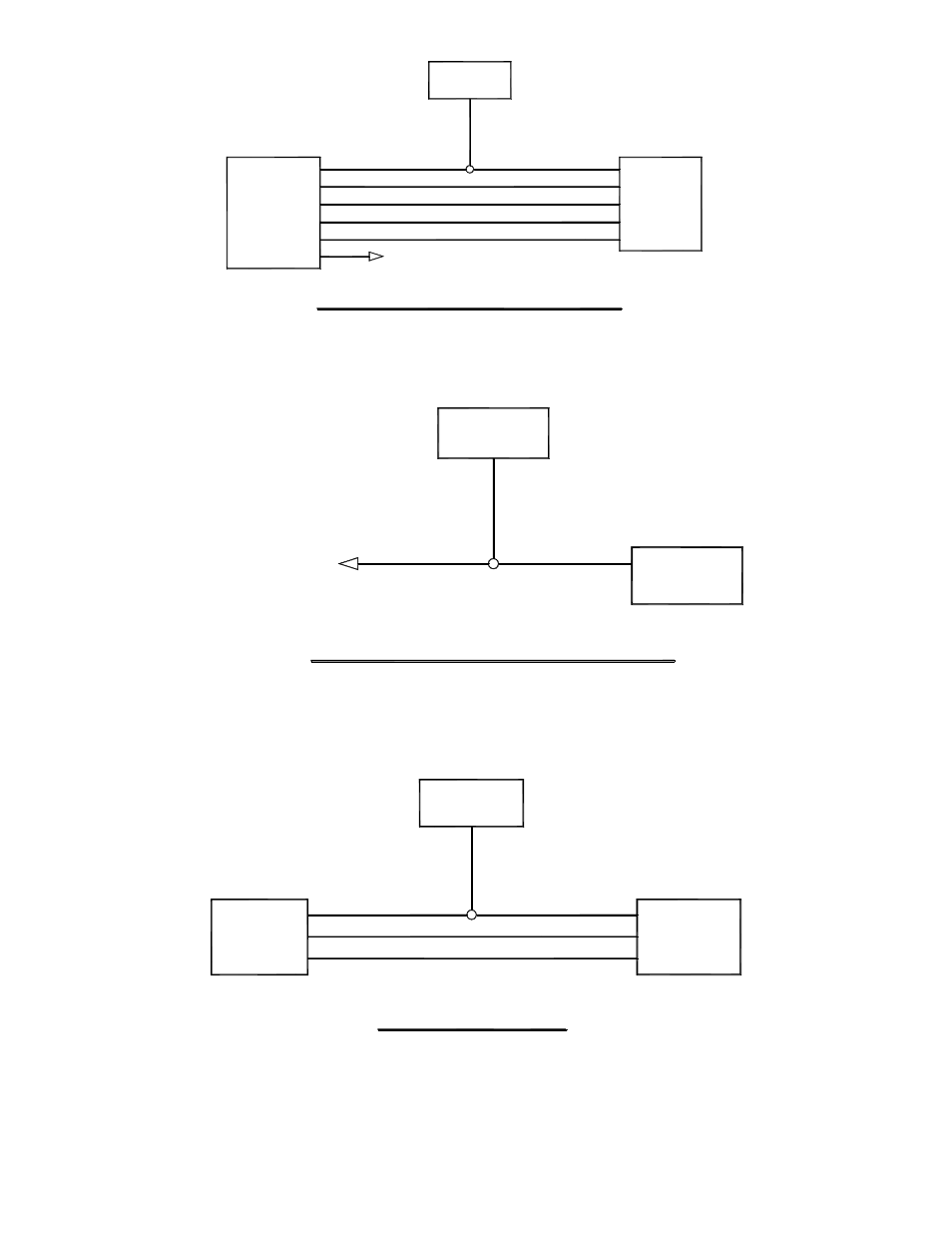

Figure 10. F/IC Power Connection
Figure 11. TPS Connection
Figure 9. Oxygen/UEGO Sensor Connection
