AEM 30-1931 Universal Fuel Ignition Controller 8 Channel - Manual (Page 5)

Page 5
Do you want to modify or clamp the MAF Sensor voltage?
If not, the two MAF Sensor wires can be eliminated. If so, connect the MAF
Sensor as shown below in Figure 6.
SENSOR ECU
FIC
VREF
MA
F IN
+
MA
F OU
T +
MAF CONNECTION
GND
SIGNAL (+)
Does your vehicle have both a MAP Sensor and a MAF Sensor? or Do you want to
remap another analog signal on your car?
If so, connect the “Analog A/B” wires as shown below in Figure 7. If not, remove
the unused wires for
“Analog A/B”.
SENSOR ECU
FIC
VREF
ANALOG
A/B
IN
+
ANALOG A/B CONNECTION
GND
SIGNAL (+)
ANALOG
A/B
O
UT
+
How many Injectors do you want to control with the F/IC?
The F/IC has 8 Injector drivers. There are two wires per driver. The wires for the
unused drivers can be eliminated.
Do you want to control the primary Injectors on the engine, or control additional
secondary Injectors?
Connect the injectors as shown below in Figure 8.
FUEL
INJECTOR 1 ECU
FIC
FUEL INJ 1
TO +12V
INJ 1 OUT INJ 1 IN
PRIMARY FUEL INJECTOR CONNECTION

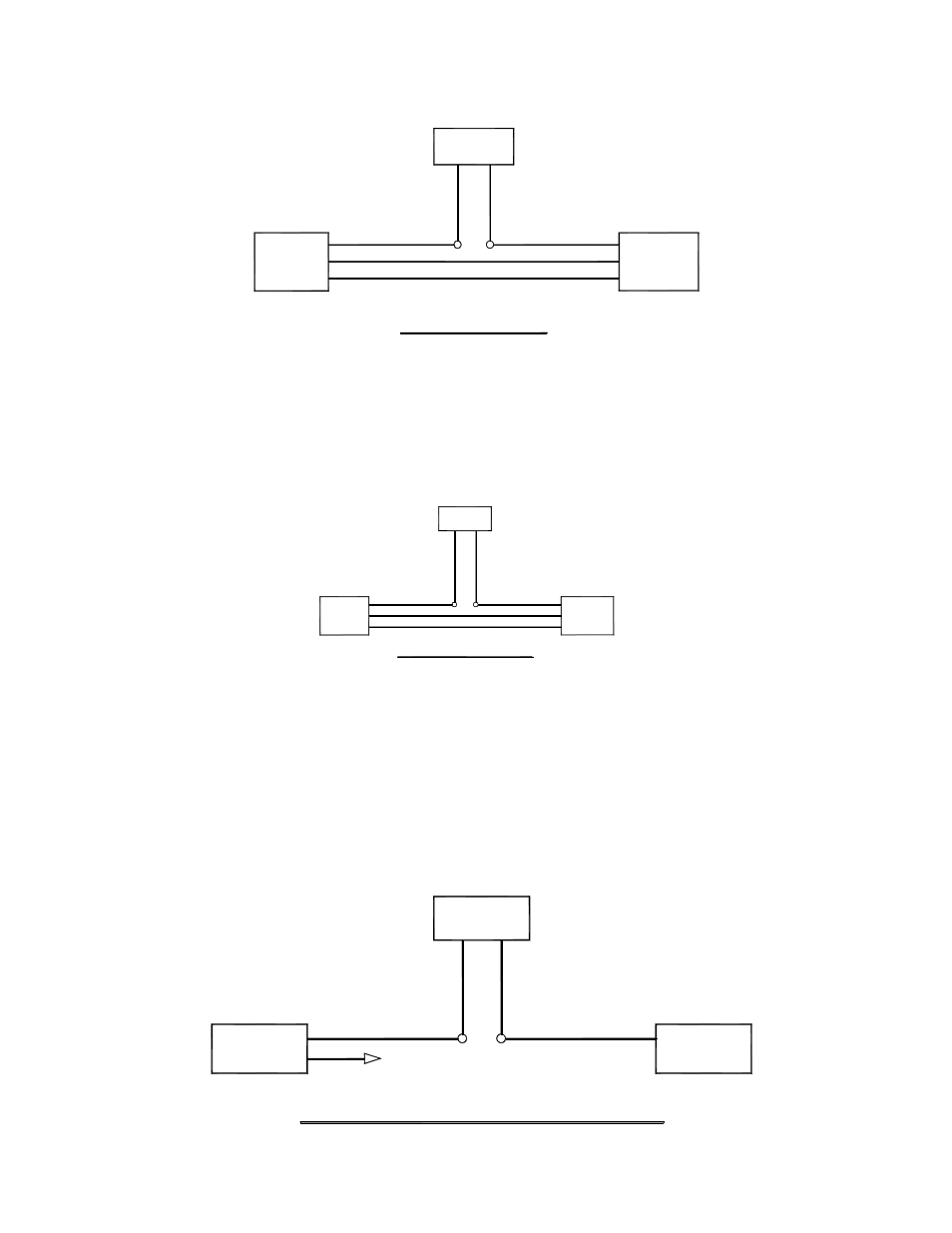

Figure 6. MAF Sensor Connection
Figure 7. Analog A/B Connection
