Configuring the FIC
With the FIC software open, select Setup>System. See Figure 32.
Com Port:
Displays the com port to which the F/IC is connected. This value will
automatically be entered once the F/IC is connected to the computer.
Load Display Units:
The on board map sensor reads load in absolute pressure. The load can
be displayed in PSI absolute or KPA absolute.
User Switch Input Function:
Select the functionality for the User Switch Input Function. The User
Switch Input can either be used to trigger the internal FIC logger or switch
between calibrations in the dual calibration mode.
Injector Response Time:
This is the amount of time by which the start of fuel flow lags the injector
open signal from the ecu. A typical value is 500
S.
Ignition:
Select the load input for the ignition map. Set the slew rate for the ignition
timing. A typical slew rate value is 0.125 degrees every 5 mS.

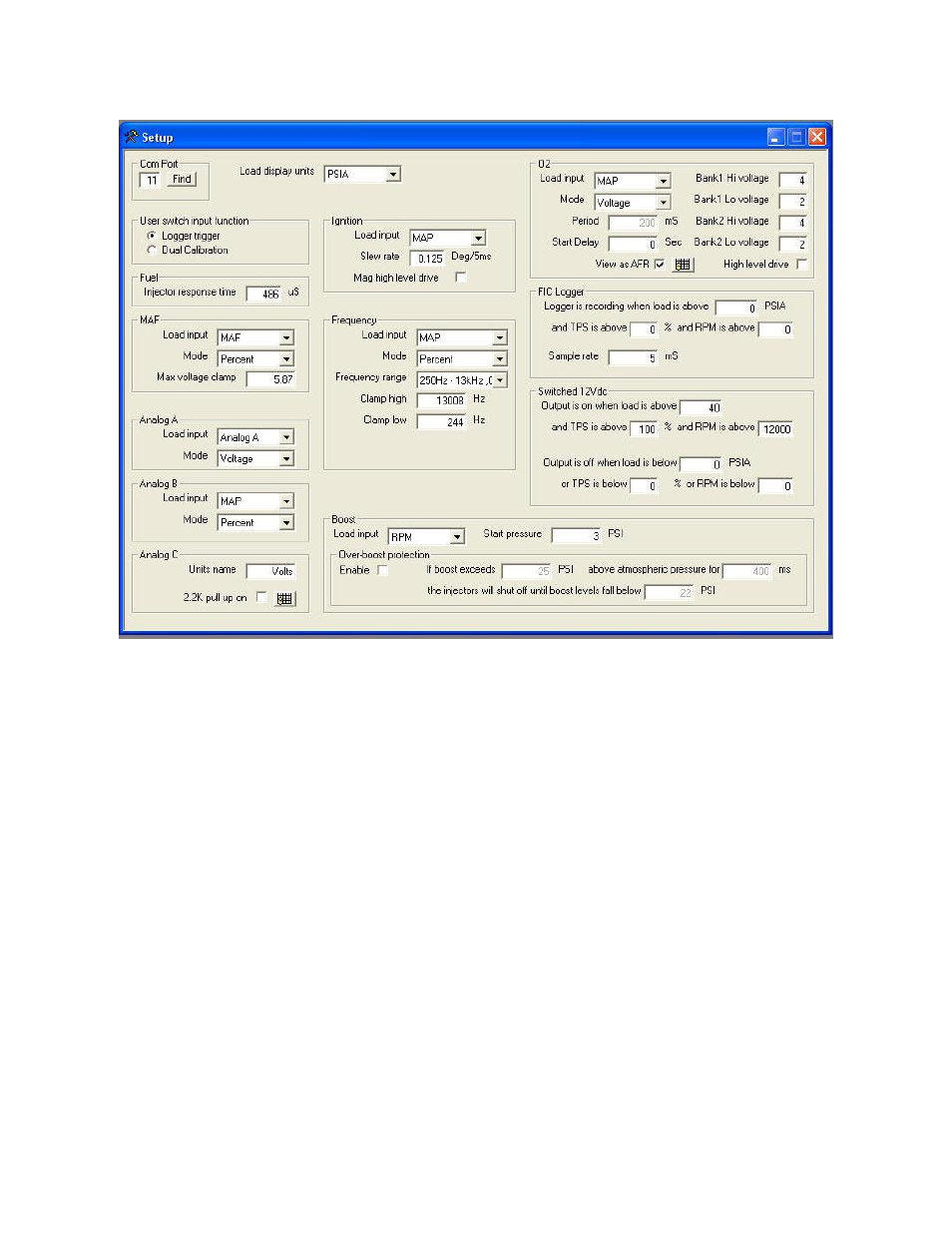

Figure 32. F/IC Setup Window
