Operator’s Seat Adjustment

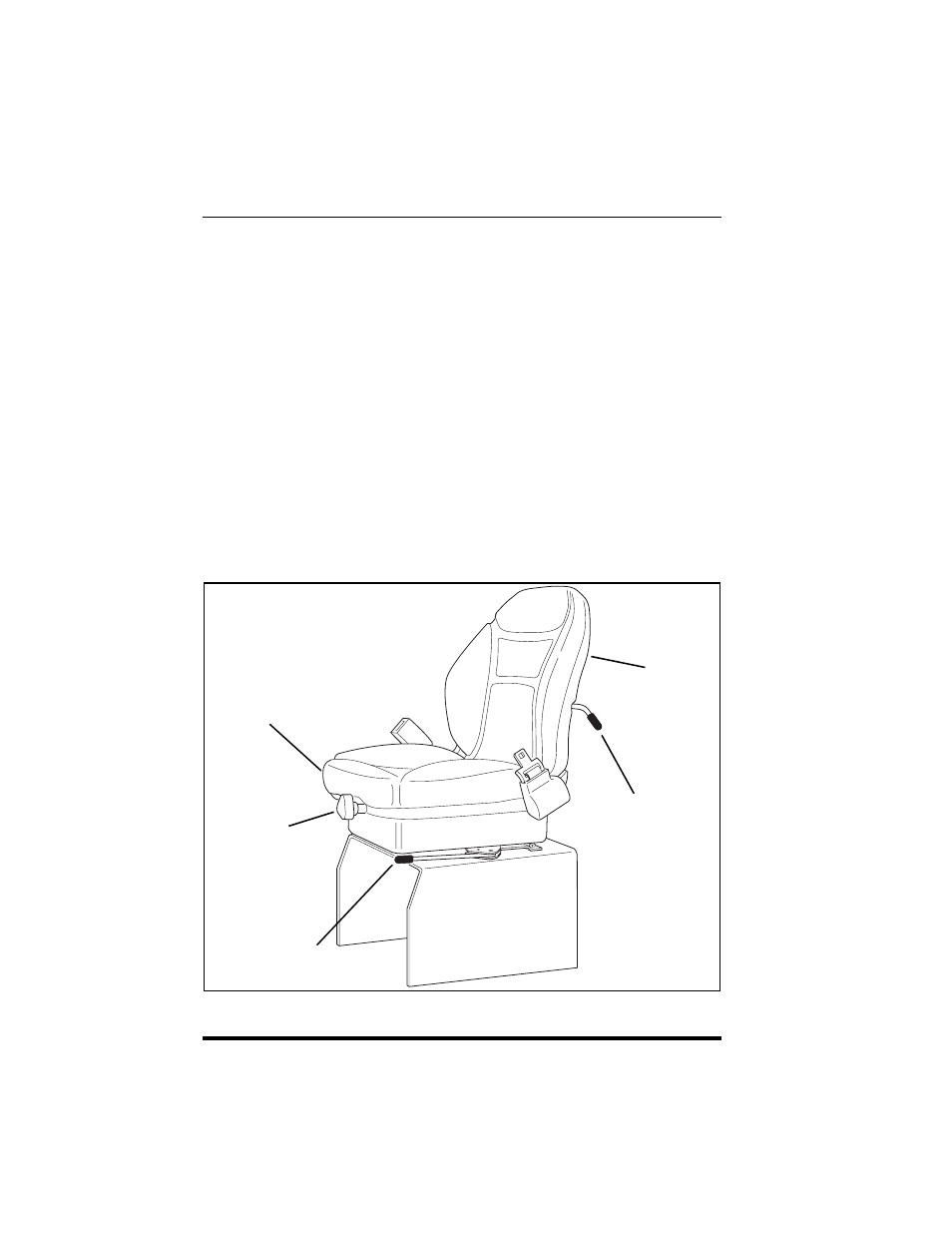

The operator’s seat can be adjusted three ways:
A. Fore and Aft Adjustment
Pull the handle (1) outward to adjust the seats forward and
backward. Release the handle to lock the seat in the desired
position.
B. Suspension Adjustment
Turn the knob (2) on the front of the seat (3) to adjust the
suspension to correspond with the operator’s weight. Turn
clockwise to increase stiffness. Turn counter-clockwise to reduce
the stiffness.
C. Backrest Angle Adjustment
The angle of the seat backrest can be adjusted to suit the operator.
Move the lever (4) located on the left side of the seat backrest (5) to
adjust the angle.
