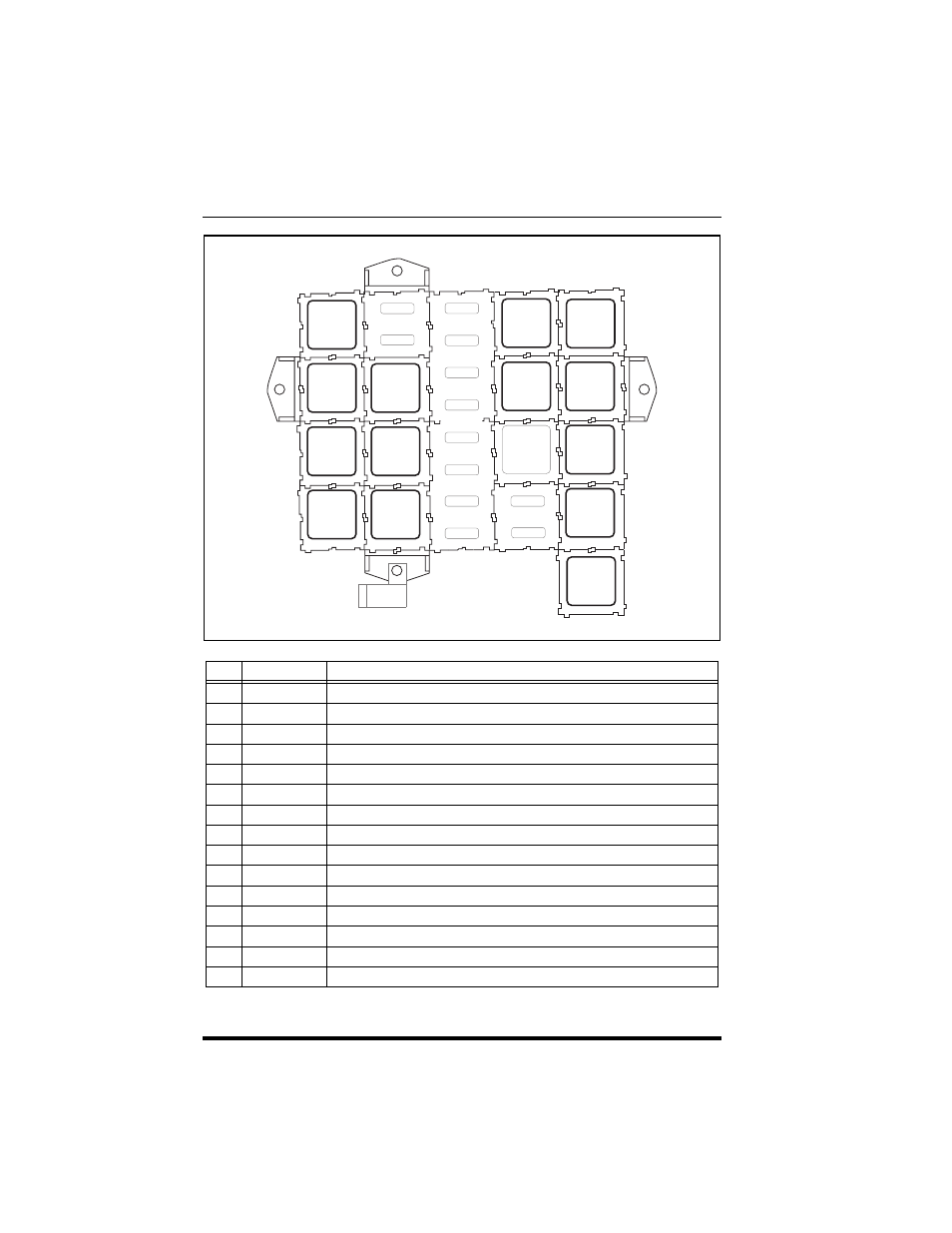

General Maintenance
No. Volt Circuit Controlled
1 12 Volt Left Outrigger Lock Relay
2 12 Volt Right Outrigger Lock Relay
3 12 Volt Boom Extend Interlock Relay
4 12 Volt Stabil-TRAK Lock Up Relay
5 12 Volt Stabil-TRAK Interlock Relay
6 12 Volt Park Brake Interlock Relay
7 12 Volt Boom Extend Lockout Relay
8 – Open
9 12 Volt Backup Relay
10 12 Volt Neutral Start Relay
11 12 Volt Park Brake Disengage Relay Relay
12 12 Volt Optional Headlight Switch Relay
13 12 Volt Light Switch Relay
14 12 Volt Stabil-TRAK Lock relay
15 12 Volt Boom Switch Relay
7.5
20
7.5
10
10
10
15
10
7.5
40
7.5
7.5
40
OH3142
1
2
3
4
5 6
7
8
9
10
11
12
13
14
15
