General Maintenance
161
Model 10054
Rev. 11/03
A. Intermediate Boom Chains Tension Check
Check the intermediate boom chain tension by measuring the intermediate
boom extend chain sag.
1. Park the vehicle on level ground. Place the travel select lever in (N)
NEUTRAL, move neutral lock lever to NEUTRAL LOCK position,
engage the parking brake switch and raise the boom to a horizontal
(level) position.
2. Lower both outriggers completely. Fully extend the boom, then
retract it 2" (51 mm). Turn the vehicle OFF.

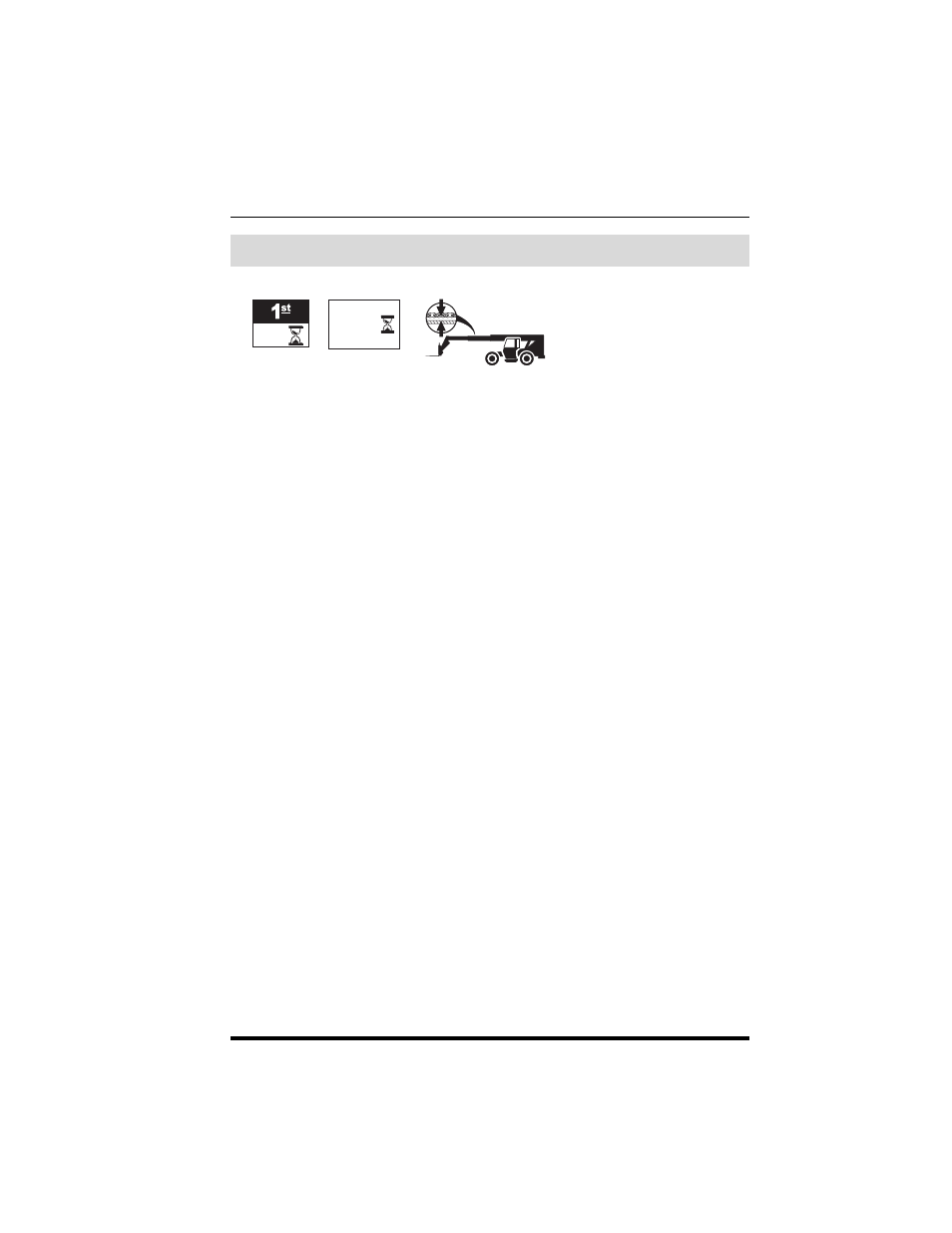

15. Boom Chains and Wear Pads
OH2390
50
OH2670
1000
OH2690
