General Maintenance
ECM Fuses and Relays

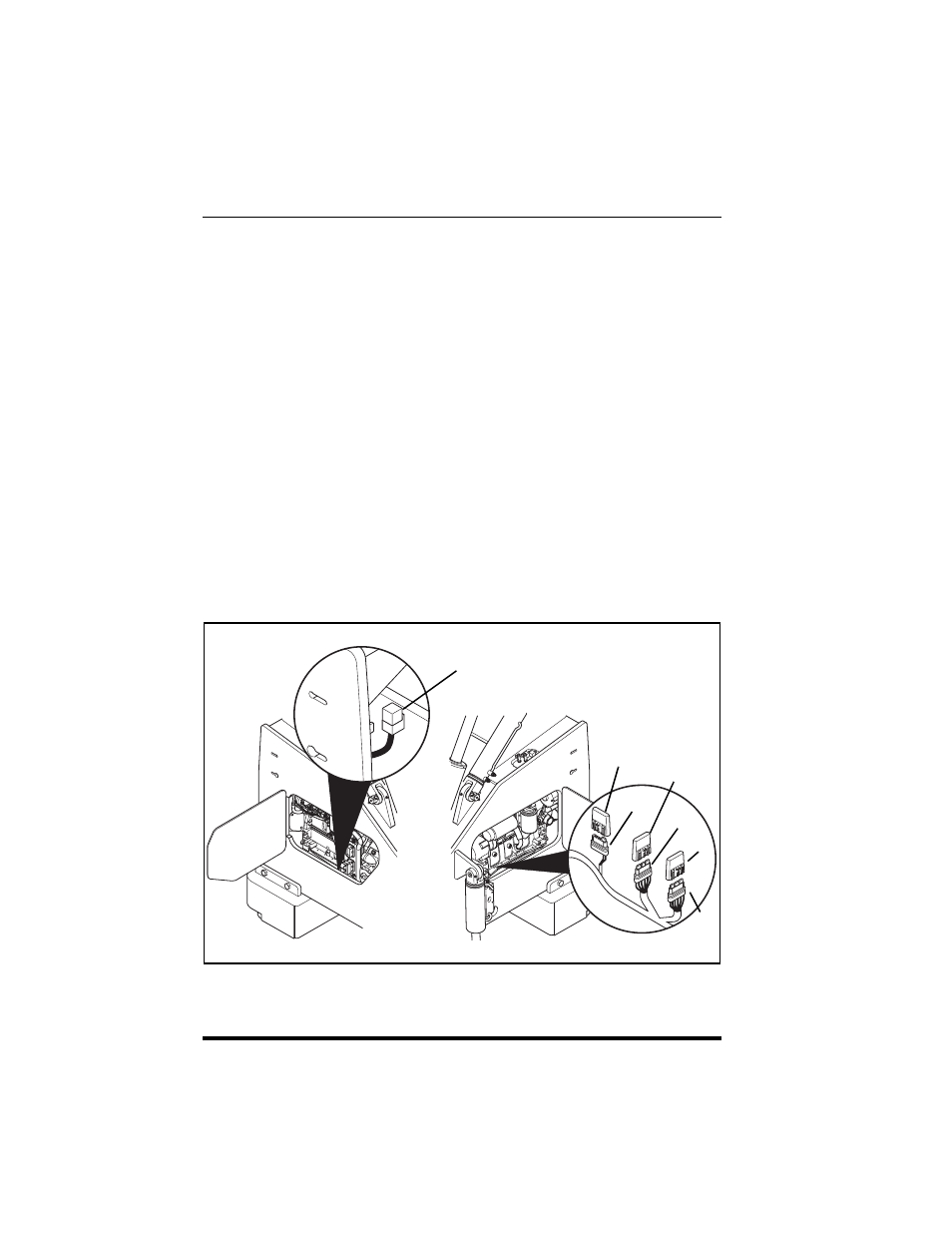

The three fuse holders (1), that protect the ECM diagnostic system, are
located inside the frame on the left side of the engine and are tie wrapped to
the wire harness. One holder contains one 7.5 amp fuse (brown), one
contains three 7.5 amp fuses (brown) and the other holder contains three
10 amp fuses (red).
1. Unlock and open the left engine access door.
2. Locate the three fuse holders. Remove the clear plastic protective
cover (2) from the holder (1).
3. Remove the failed fuse from the holder and replace with a new
fuse.
4. Reassemble the plastic cover onto the fuse holder and securely
snap the cover in place. Replace any tie wraps that were removed,
securing the fuse holders to the wire harness.
5. Close and lock the left side engine access door when complete.
6. To gain access the relay, unlock and open the right side engine
access door. Locate the relay (3) inside the frame. This 12 volt
relay controls the engine fuel pump.
