SkyTrak 10054 Operation Manual - Manual (Page 159)

General Maintenance
157 Model 10054 Rev. 11/03

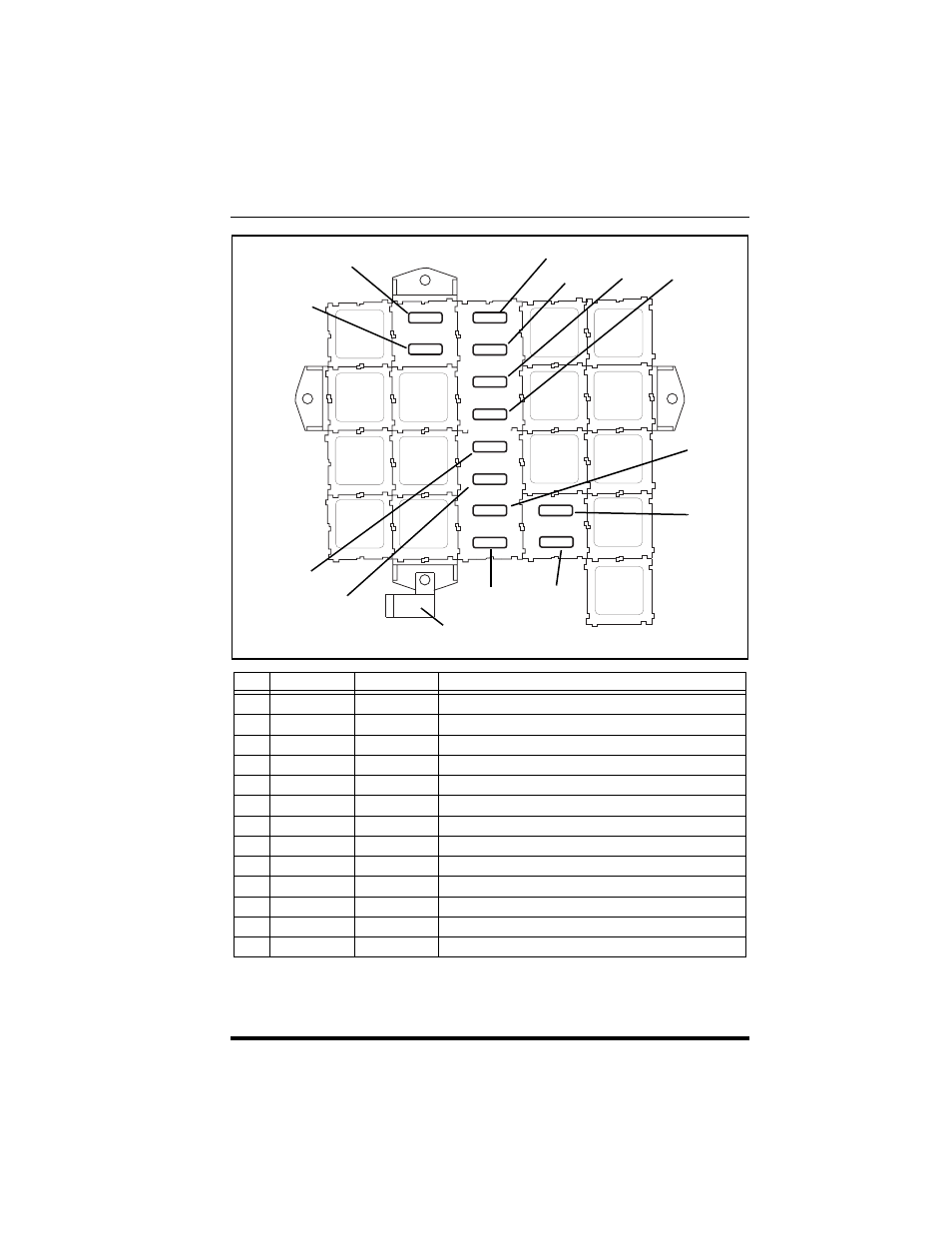

No. Amp Color Circuit Protected
3 7.5 Amp Brown Boom/Outrigger Interlock
4 7.5 Amp Brown Boom/Outrigger Interlock
5 40 Amp Orange Main
6 7.5 Amp Brown Light Switch Relay
7 10 Amp Red Instrument Cluster
8 15 Amp Blue Horn/Heater
9 10 Amp Red Steer Select Switch
10 10 Amp Red Stabil-TRAK System
11 10 Amp Red Optional Washer/Wipers
12 7.5 Amp Brown Outriggers & ECM Indicator Light
13 7.5 Amp Brown Transmission
14 20 Amp Yellow Optional Lights
15 40 Amp Orange Optional Road/Work Lights
7.5
20
7.5
10
10
10
15
10
7.5
40
7.5
7.5
40 OH3131
3
4 5
6
7
8
9 10
11
12
13
14
15
