196 Model 10054 Rev. 11/03
Specifications
With Standard 17.5 - 25 Tires:
(A) Length (less forks) ........................................... 239 inches (6.071 mm)
(B) Width (outriggers up) ....................................... 102 inches (2.591 mm)
(C) Width (outriggers down) ............................. 156.75 inches (3.981 mm)
(D) Height .............................................................. 101 inches (2.565 mm)
(E) Wheelbase.................................................... 119.5 inches (3.035 mm)
(F) Ground Clearance ................................................ 18 inches (457 mm)
(G) Tread Center ................................................ 84.25 inches (2.140 mm)
(H) Turning Clearance ....................................... 184.5 inches (4,7 meters)
(J) Maximum Lift Height .............................53 feet 2 inches (16,2 meters)
(K) Max. Forward Reach ............................38 feet 9 inches (11,8 meters)

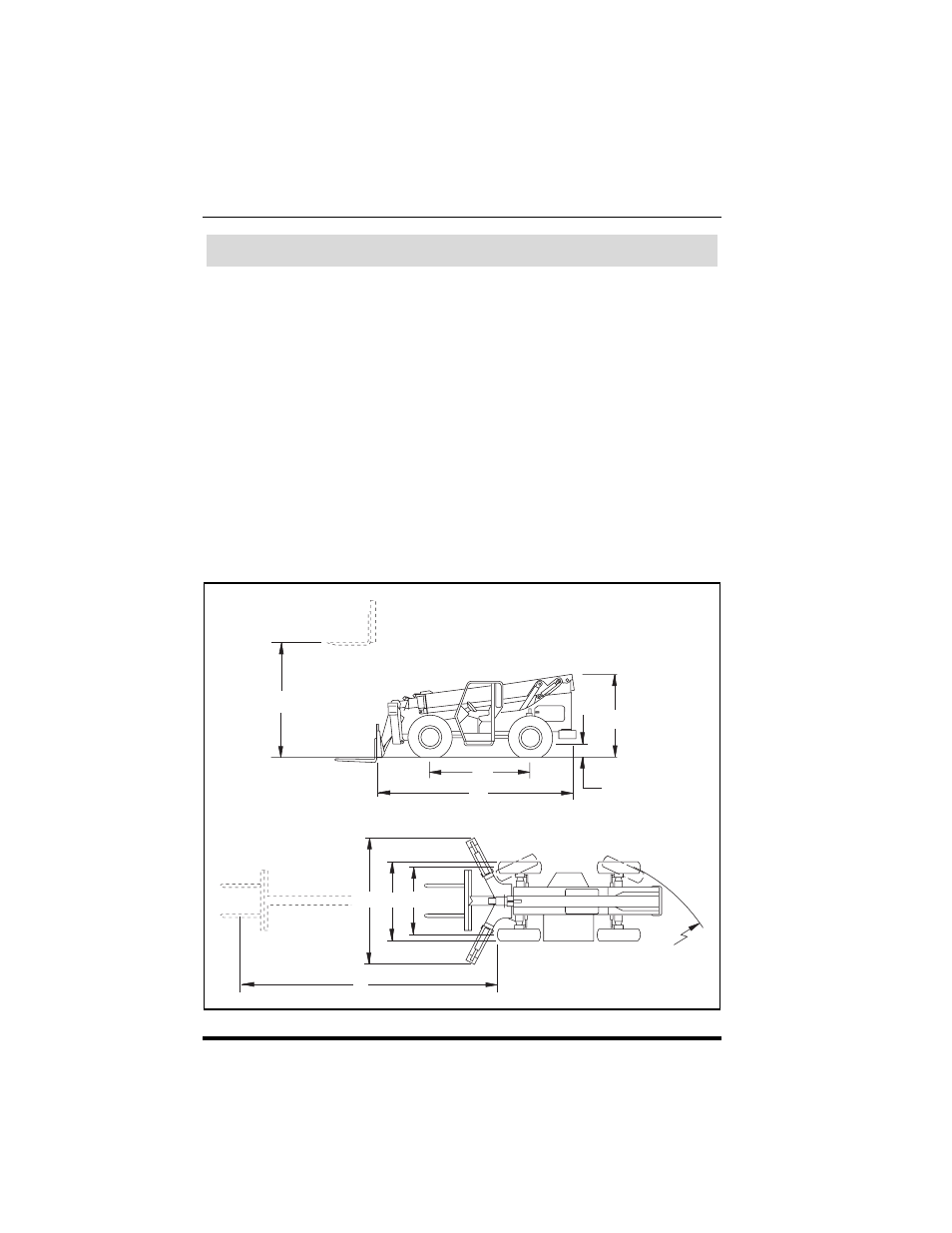

Vehicle Dimensions
OH3510
F
G
H
J
K
B C
D
E
A
