Outrigger Control Switches

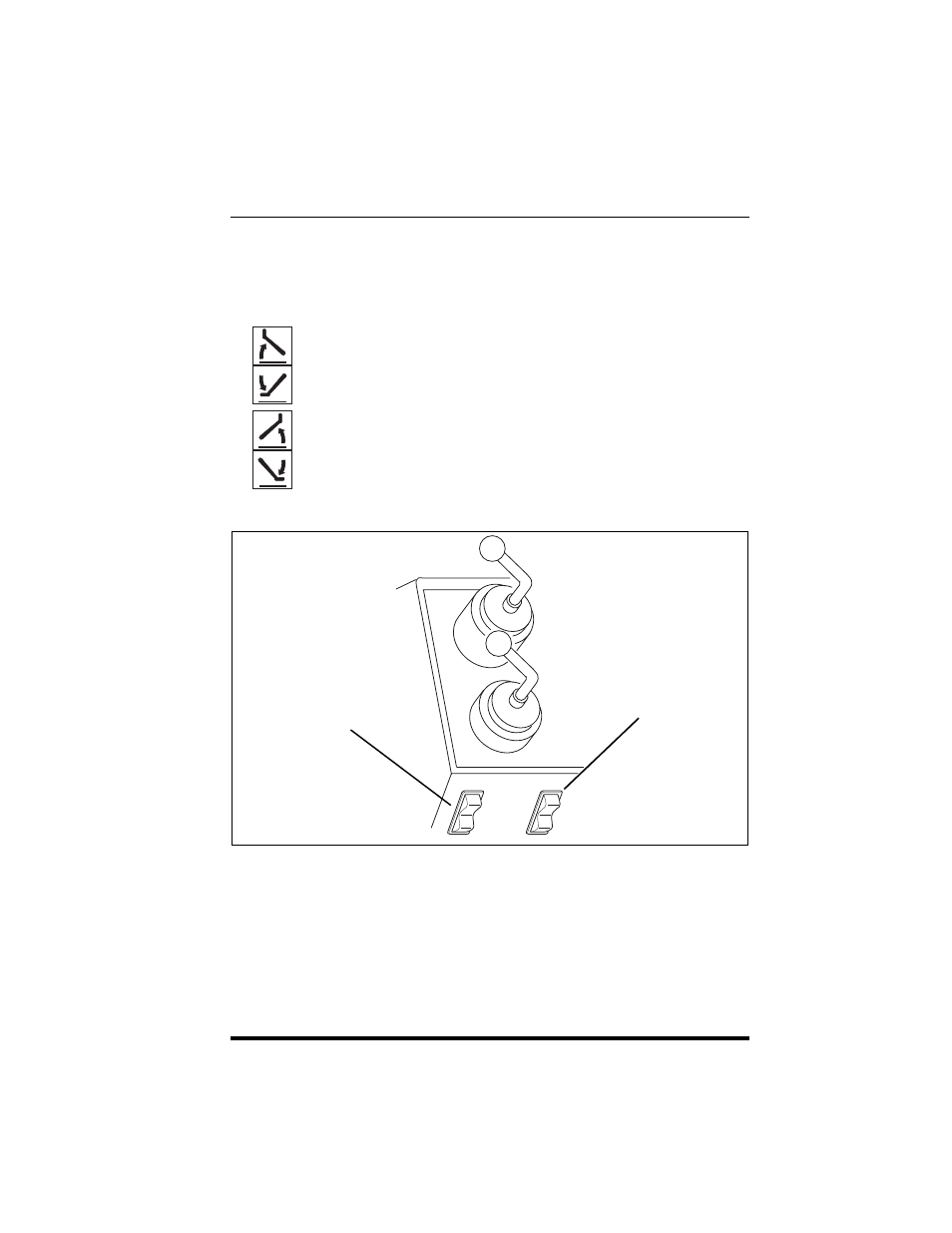

The left (2) and right (3) outrigger control switches raise or lower the
corresponding outriggers. The rocker switches are spring loaded to return to
the center (stop) position when released.
Raise Left Outrigger............ press top of left side switch
Lower Left Outrigger ........... press bottom of left side switch
Raise Right Outrigger ..........press top of right side switch
Lower Right Outrigger..........press bottom of right side switch
NOTE: Outrigger position is critical to allow full extension of the boom.
Refer to “Understanding the Boom/Outrigger Interlock System” on page 66
for a detailed explanation of the interlock.
