Accelerator Pedal
Pressing down the accelerator pedal (1) increases engine and hydraulic
speed of the vehicle. The pedal is spring-loaded to return to idle speed.
NOTE: The accelerator pedal is also used to activate the Cummins ECM
Diagnostic system. With the ignition switch in the RUN position, depress
and release the pedal three times to activate the system.
Service Brake Pedal
Pressing down the brake pedal (2) decreases the speed of the vehicle by
applying the service brakes located in the axles. In the event of engine
power loss, the service brake pedal can also be used for braking. It also
activates and locks the rear axle to frame lock system when boom angles
are greater than 40°, as long as the pedal is depressed.
Steering Wheel
Turning the steering wheel (3) to the left or right steers the vehicle in the
corresponding direction. Any one of the steering modes are selectable.
Refer to “Steering Select Switch” on page 26.
Horn Button
Pressing the button (4) sounds the horn.

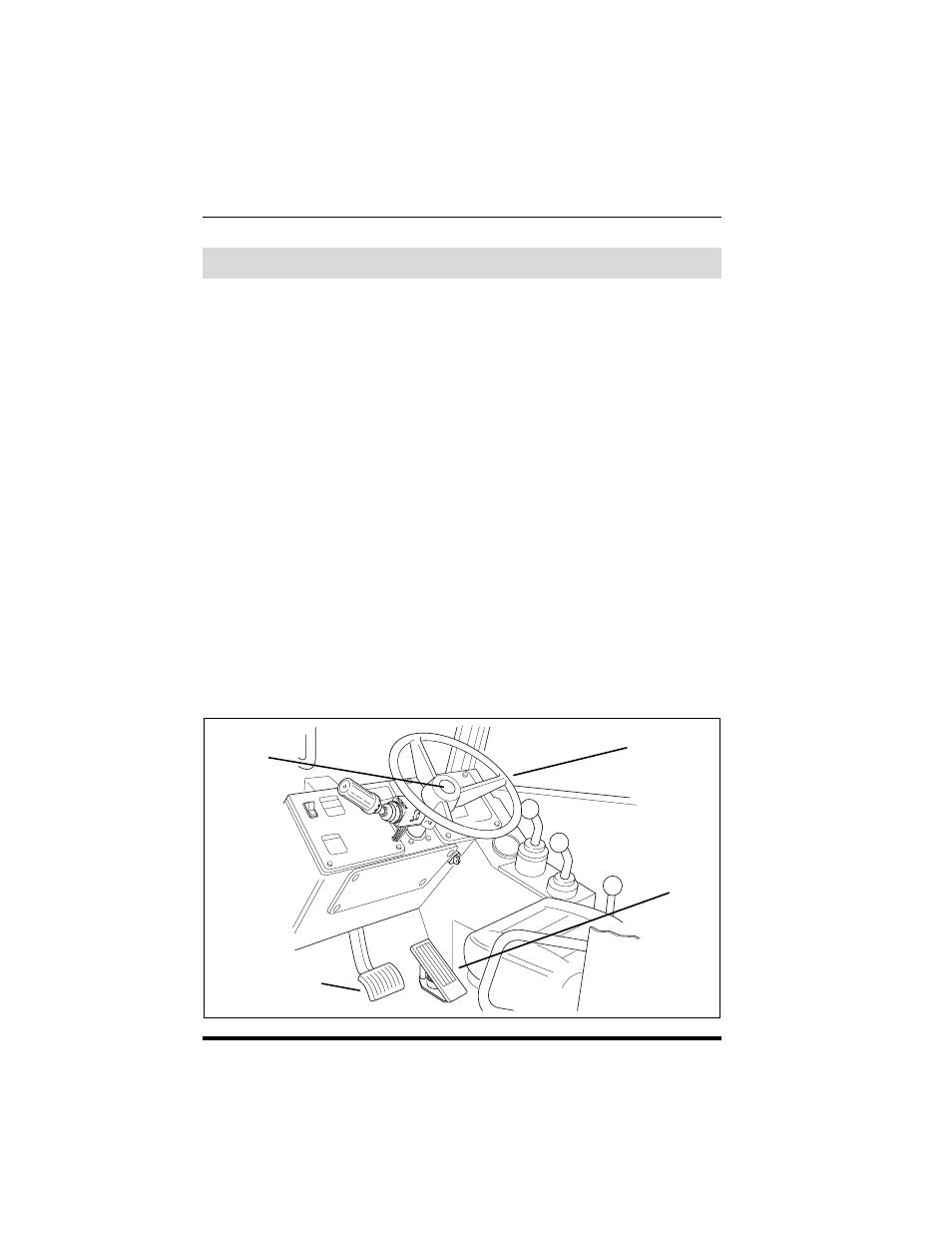

Operator Controls
MA8560
