Worklight Switch (Front, Rear & Boom Worklights)

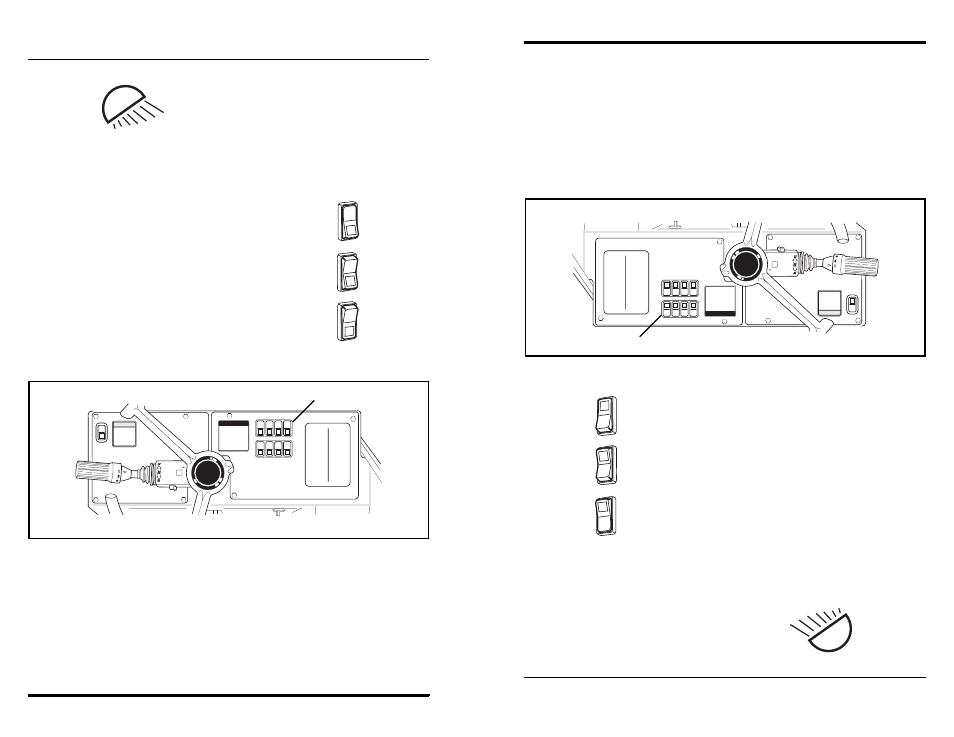

(Figure 27)
This three position rocker switch controls the front, rear and boom
worklights. The switch is located in the upper switch bank on the right side
dash panel. These lights will only operate when the ignition switch is in the
RUN position.
• Push the top of the switch in to turn all the
worklights OFF.
• To turn the front and boom worklight ON,
position the rocker switch to the center
position.
• Push the bottom of the switch in to turn all the
worklights ON.
Figure 27
OH2570
OH2591
OH2611
OH2601
OH1852
Worklight Switch
