General Maintenance
147 Model 10054 Rev 3/02
B. Wheel End Oil Change
1. Position the vehicle on level ground, move the vehicle forward or
backward enough to ensure that the wheel end fill/drain plug is in
the 6 o’clock position (Figure 102).

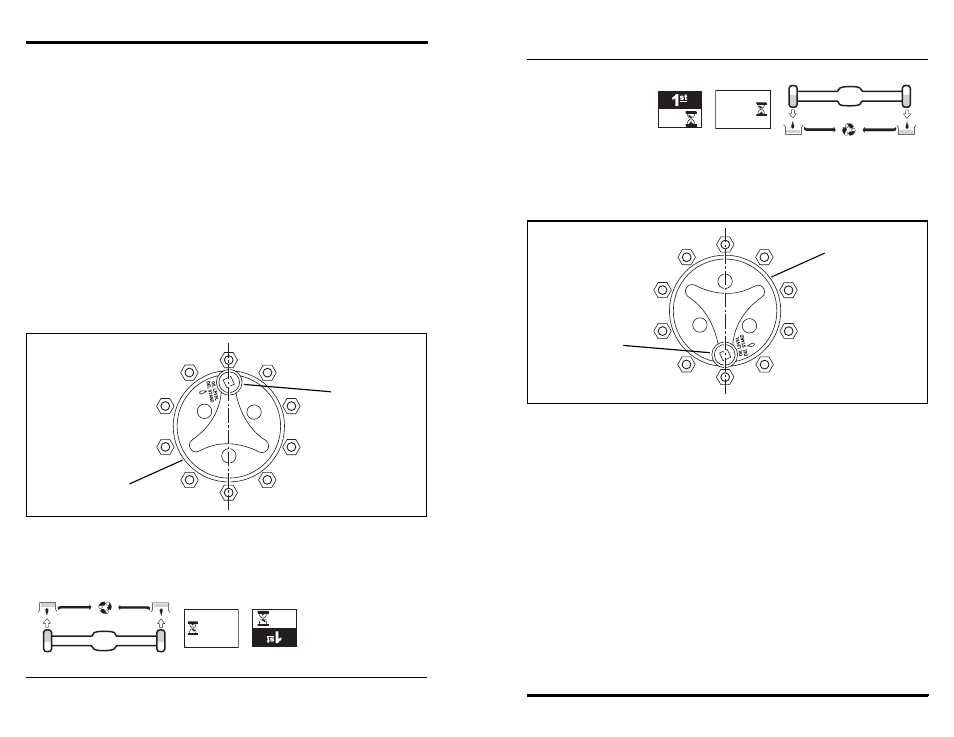

Figure 102
2. Ground the carriage, place the travel select lever in (N) NEUTRAL,
move neutral lock lever to NEUTRAL LOCK position, engage the
parking brake switch and shut off the engine.
3. Clean the area around the wheel end fill/drain plug. Slowly loosen
the plug. Hold a receptacle under the wheel end and remove the
plug from the wheel end.
4. Allow the oil to drain completely into the receptacle. Transfer the oil
to a container with a cover and label the container as used oil. Dis-
pose of properly.
5. Reposition the vehicle so the wheel end fill/drain plug is positioned
horizontally (refer back to Figure 101).
6. Fill the wheel end with Universal Tractor Fluid to the level of the
drain plug. See chart of approved fluids on page 146. Wheel end
capacity is approximately 1.7 quarts (1,6 liters).
7. Clean and re-install the wheel end fill/drain plug.
OT0450
50
OH2670
1000
OH2690
OT0290
Wheel End
Wheel End
Fill/Drain Plug
