32 Model 10054 Rev 3/02
Operation
Attachment Tilt and Frame Sway Control Lever
(Figure 13)
The attachment tilt and frame sway control is a joystick with four
perpendicular motions from the center to control two attachment tilt
functions and two frame sway functions:
Frame Sway Left .................move lever to the left
Frame Sway Right ...............move lever to the right
Attachment Tilt Down .......... move lever forward
Attachment Tilt Up............... move lever backward
The attachment is self leveling and will retain any set angle throughout
boom raising, lowering, retracting or extending operations.

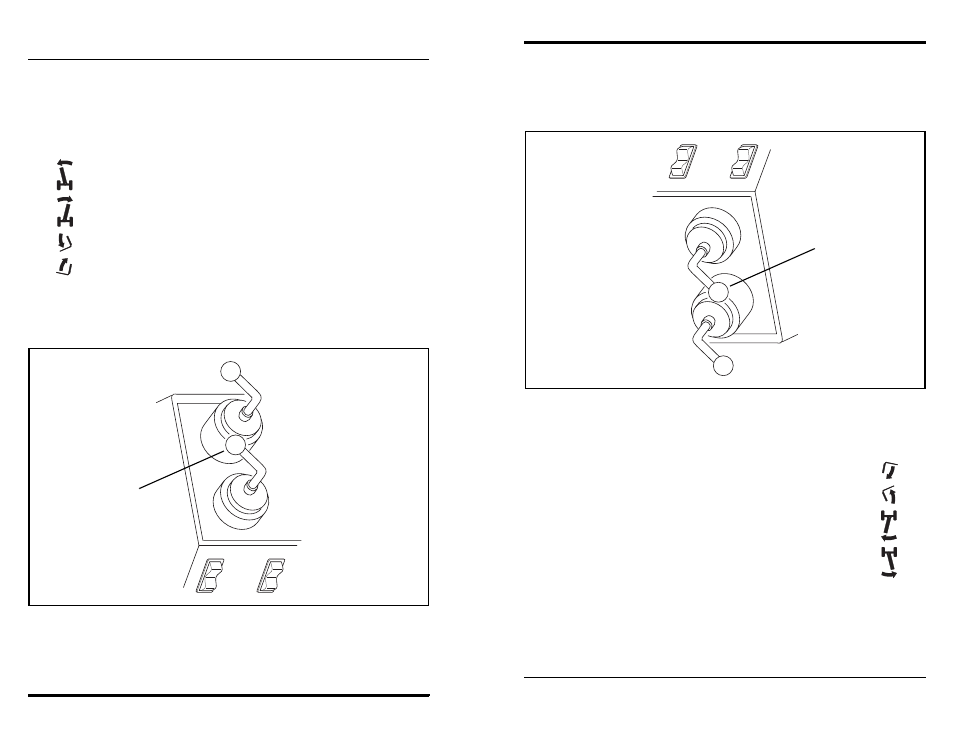

Figure 13
OH0410
OH1700
Attachment Tilt
And Frame Sway
Control Lever
