9.5

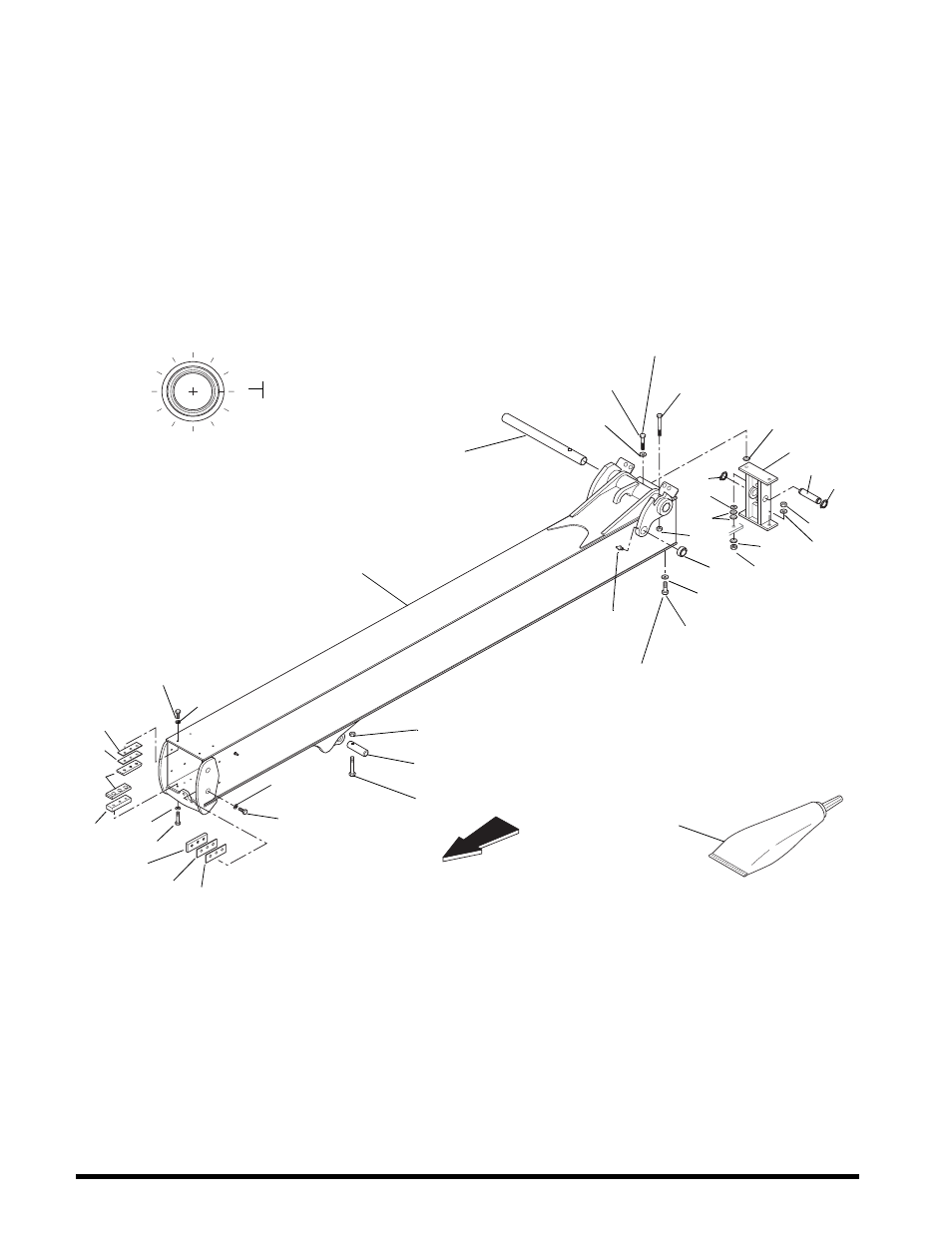

OUTER BOOM
1
2
3
4
5
6
7
8
9
10
11
12
PS0651
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
4
4
4
4
6
9
10
19
19
20
21
22
PH0940
Apply Item 26 to All Wear Pad
Mounting Capscrews and Torque
to 31 ± 3 lb/ft. (42 ± 4 Nm)
Orient Fracture In Bearing
Race at Clock Position Shown
Slave Cylinder
Torque to 295 lb/ft.
(400 Nm)
Torque to 295 lb/ft.
(400 Nm)
Front Of Vehicle
3606 Rev 7/98
