184
registers to determine when a command sequence is completed. The
example is shown in Visual Basic.
Creating the Application
Create a new Visual Basic project as follows:
1. Create a new Standar.EXE project.
2. After you create the application shell, lay out the Form1 as shown
earlier in Figure C.1.
3. Configure the control properties as specified in Table C.1.
Adding Controls to Your Window
The application you are going to build today will have a number of
controls on a dialog window, as shown in Figure C.1. When the user
selects clicks the Start Readings button t, the routine that sets up the
meter will run. Setup Model 645 to return an SRQ event when readings
are complete.

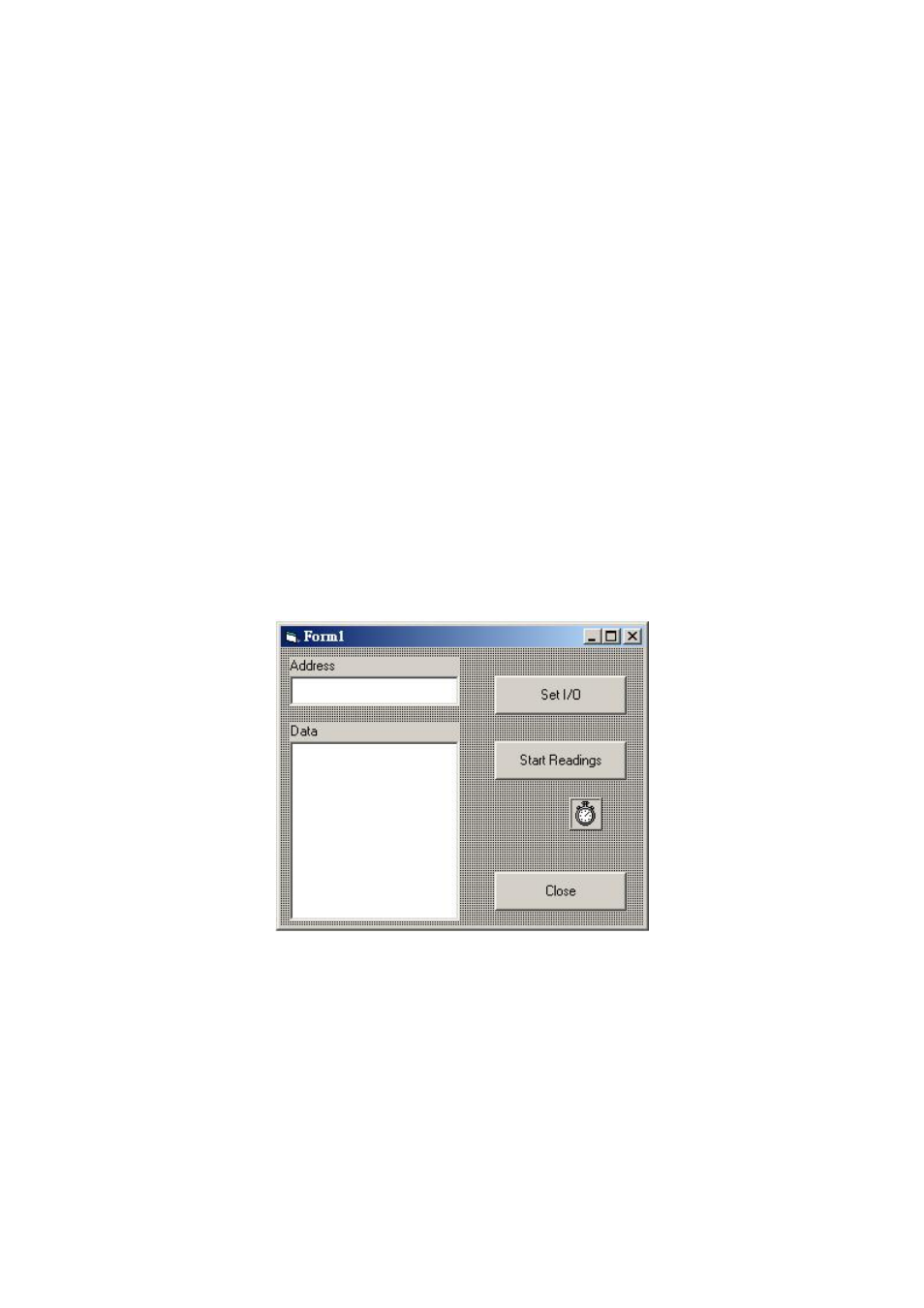

FIGURE D.1. The application will use a number of standard controls.
TABLE D.1.
PROPERTY SETTINGS FOR THE CONTROLS ON THE APPLICATION
DIALOG.
Object Property Setting
