Delay – BNC 725 User Manual
Page 44
44
Delay

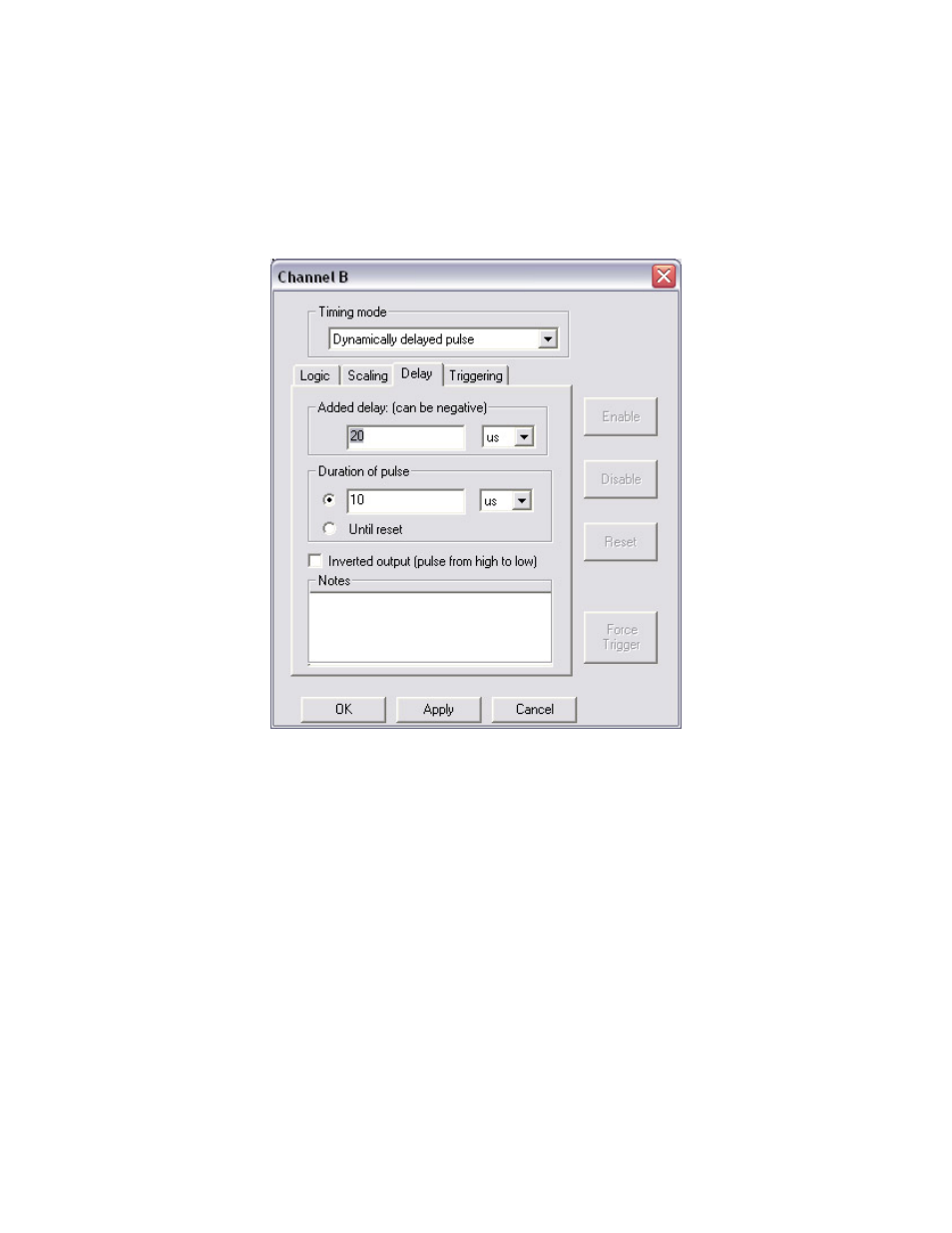

Added Delay
Set an offset value to subtract from the scaled delay length. This is
useful when accounting for camera shutters or other lag times in
experimental equipment. The offset value can be positive (shortens
the delay time) or negative (lengthens the delay time) and the
resolution is set by the time base (e.g., 10 ns).
Duration of pulse
The duration of the output signal
Until Reset
The output will remain high after a trigger until the channel is reset
Inverted Output
Check to set the output high until a valid trigger. The duration of the
pulse and other properties are the same as for the delayed pulse after
trigger.
