reaching the limit, press the Reset button on the Model 725 or choose
Program>Reset Channels in timerPRO.
Trigger on rising input
Sets the channel to be edge triggered. In other words, an input signal
that stays high triggers the channel only once.
Trigger on input high
Allows the channel to be repeatedly triggered while an input is high.
This setting could be used for generating a low-precision gated clock,
for example. However, the latency time between retriggers is
indeterminate (typically around 10 µs) so a clock made this way is not
suitable for applications requiring high precision.

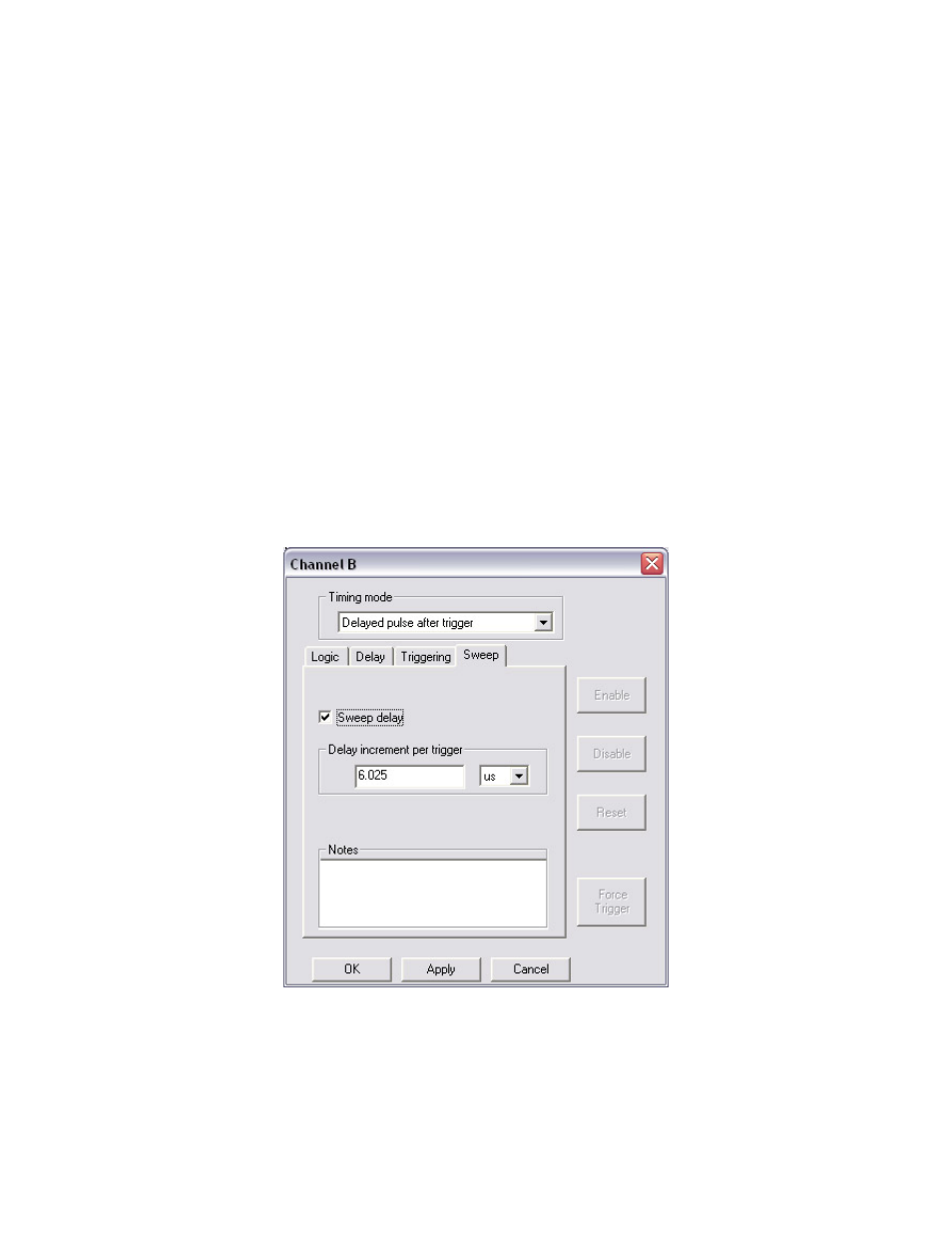

Check after completing Check this box to send a “ping” to the computer following the
each trigger cycle.
Sweep
