Clocked Pulse Stream Mode

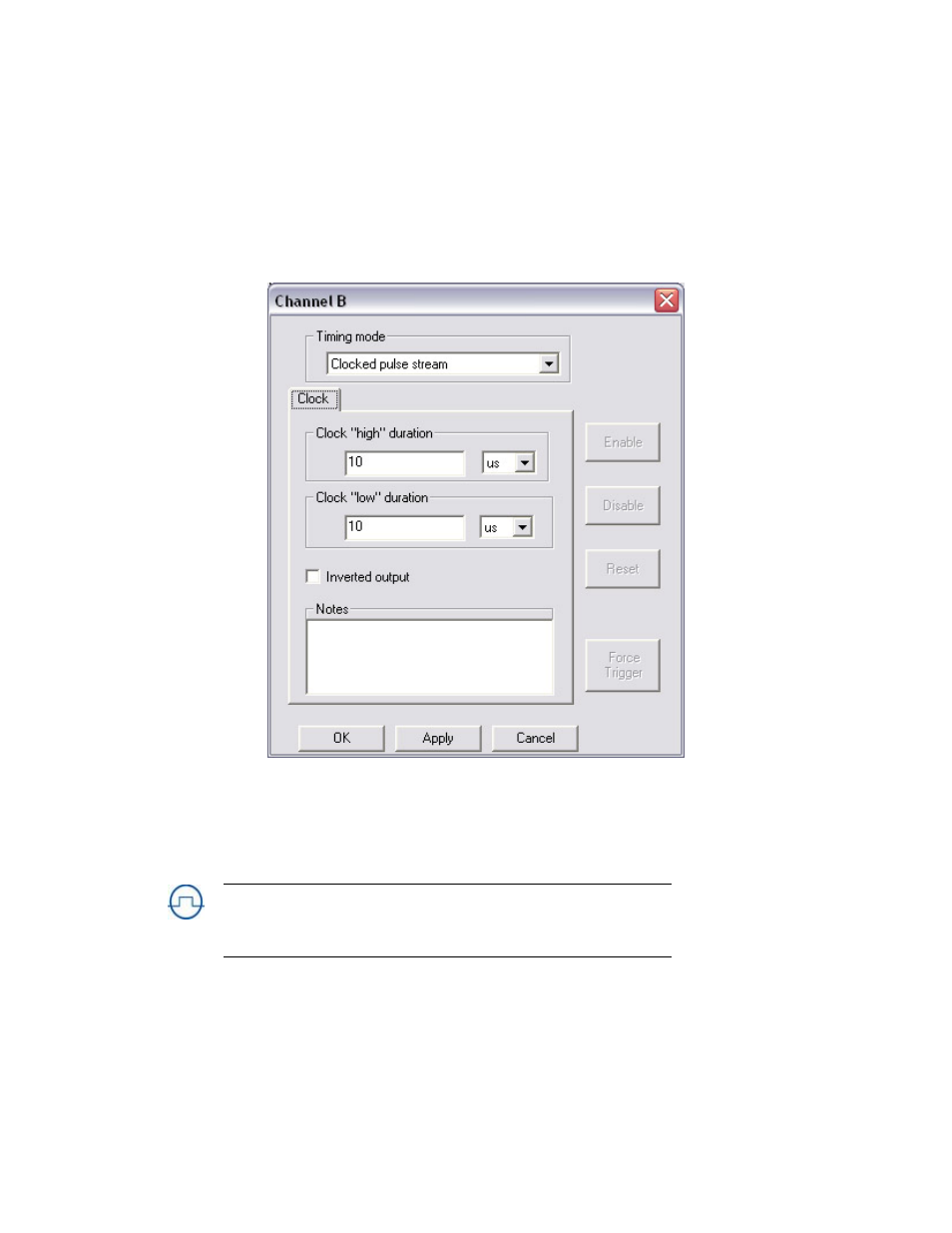

In clock mode, the output of the channel is a steady stream of pulses. You set the pulse duration
and delay between pulses. A clock channel’s input does not affect its output.

The front panel LED for a clock channel will glow green when the output is low or red when the
output is high.

NOTE:

For a high-frequency clock the LED will alternate between red and green so

quickly that it will appear as a continuous pale green, yellow or orange light.

As mentioned earlier, the Model 725 can operate in two internal clock modes: 100 MHz high
resolution and 100/64 MHz low resolution (see General Settings: Time Base Settings). In high
