Delayed Pulse After Trigger Mode
Upon receiving an input signal, a delayed pulse after trigger waits a specified delay time, then
sends a pulse to the channel output. This mode has several property tabs.

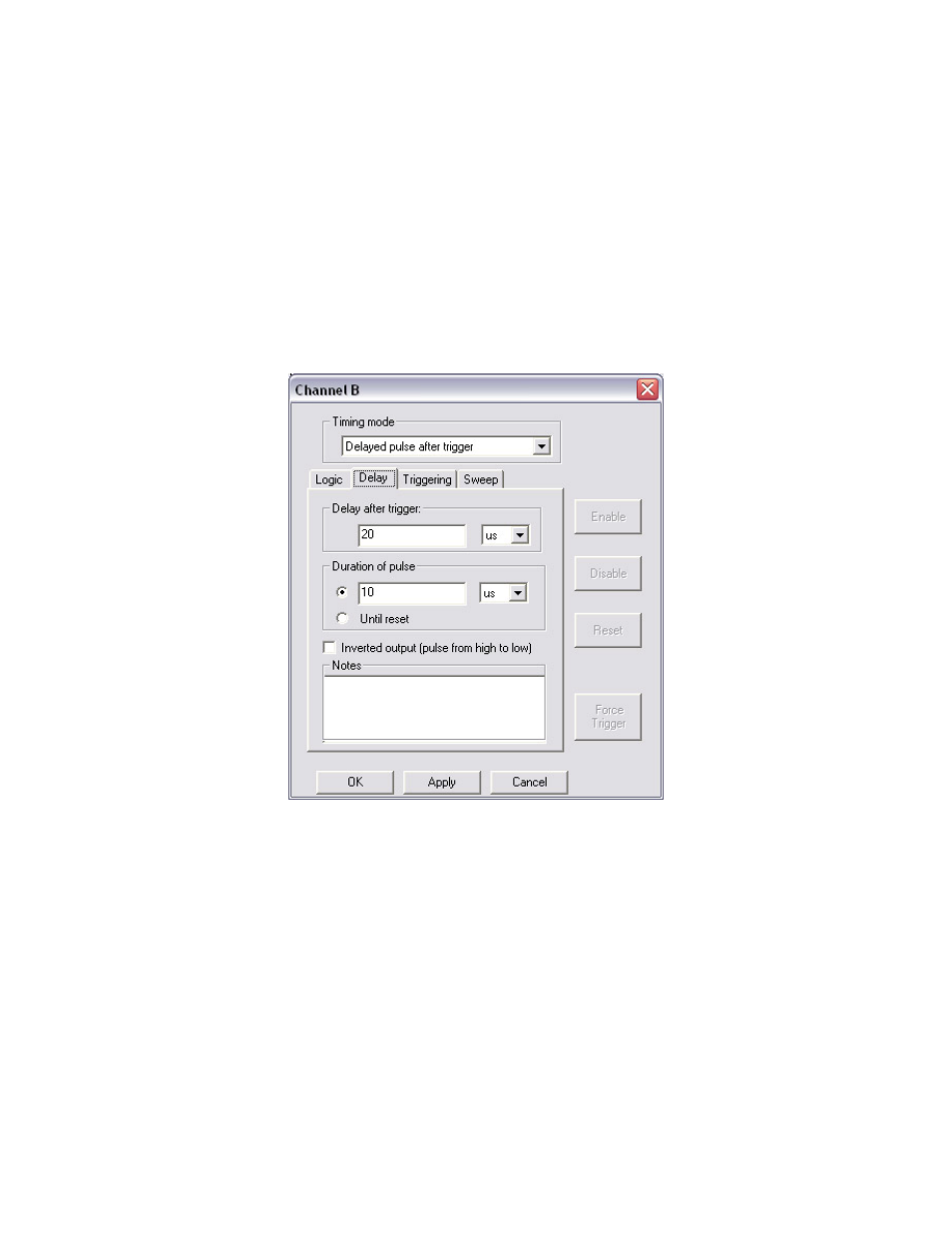

Delay
On the Delay tab you’ll specify:
Delay after trigger
The delay between a valid trigger and an output signal
Duration of pulse
The duration of the output signal
Until Reset
The output will remain high after a valid trigger, until the channel is reset
Inverted Output
Check the box to set the output high until a valid trigger.
The range of settings you can use with the delayed trigger depend upon the current timing mode:
