Pre - assembly of rear bar – ARB 5650010 User Manual
Page 7

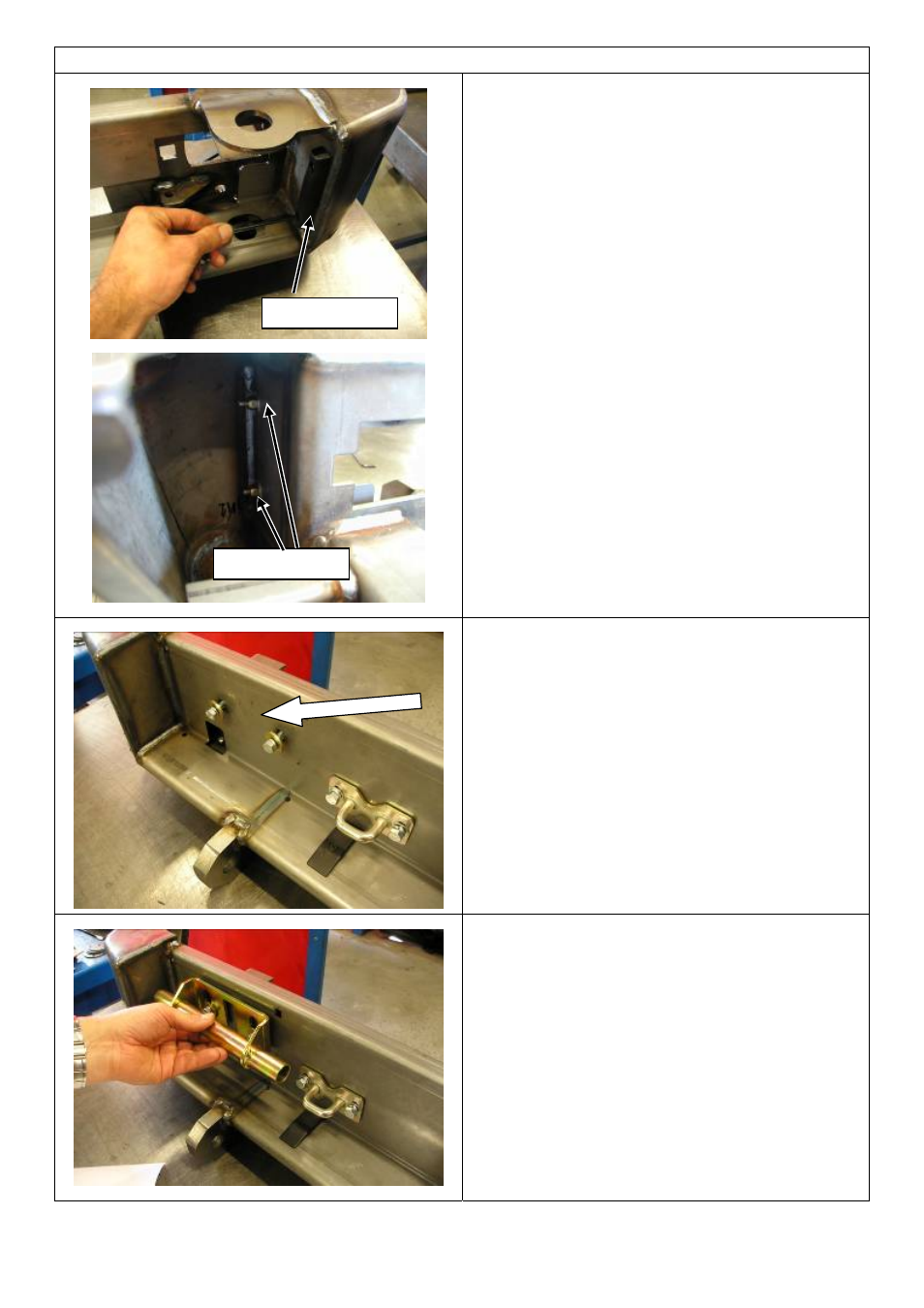

PRE - ASSEMBLY OF REAR BAR
5. INSTALLATION OF THE BUMP STOP
Fasten the bump stop to the rear bar using
two M6 x 25 mm stainless steel button head
cap screws, flat washers and nyloc nuts.
Place the washers and nyloc nut inside the
right hand wing as shown.
NOTE: Do not over tighten.
6. INSTALLATION OF THE GRABBER
BOLTS.
Fit the two M8 x 25 bolts with, spring
washers and flat washers to the bar as
shown engaging only a few threads.
7. INSTALLATION OF GRABBER
Slide the grabber bracket over the bolts as
shown in the photo.
Leave these bolts finger tight only at this
stage. The grabber will require adjustment
when the wheel carrier is fitted.
Bump Stop
M6 Lock Nuts
Last Rev Date: 16/10/2006
Page 7 of 25
3783210 - rev 3
Copyright © 2005 by ARB Corporation Limited. All rights reserved, this document must not be reproduced without the express authority of ARB Corporation Ltd
