FINAL - ASSEMBLY OF THE REAR BAR

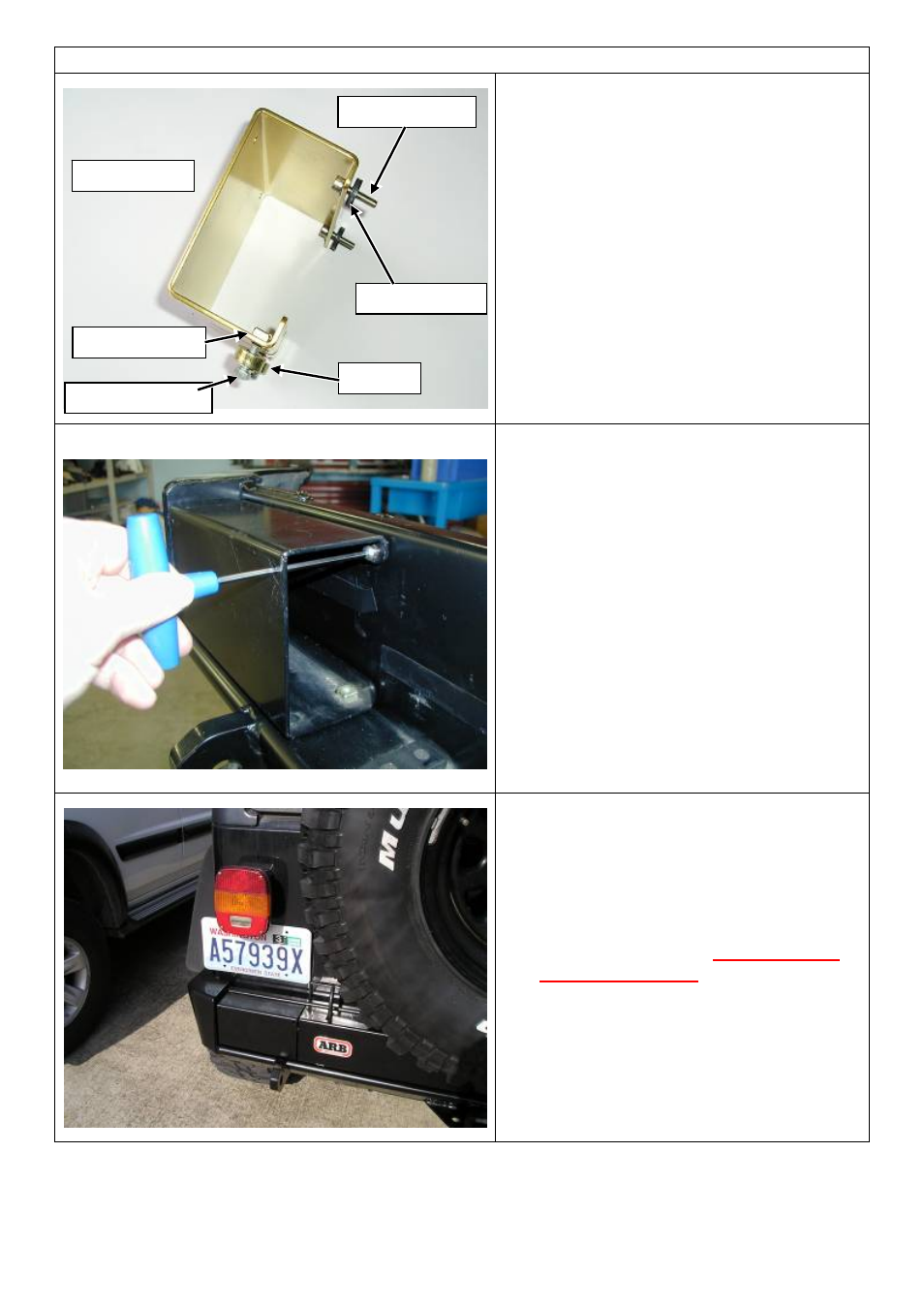

COVER PANEL ASSEMBLY

Now that all adjustments & operations
have been done and checked on the rear
bar and spare wheel carrier, the cover
panel can be fitted. Fit the two M6 cage
nuts to the cover as shown.

Fit the socket head cap screws into the
cover with the black nylon spacers on
the other side.

Place the bottom spacers over the
corresponding holes in the surface of
the rear bar.

INSTALLATION OF THE COVER TO
THE REAR BAR

To fix the cover to the rear bar, place a
hex key through the access hole in the
cover as shown. Thread the two M6
socket head cap screws into the caged
nuts installed at step 2.

The lower part of the cover is fixed by
inserting two M6 bolt from the
underside of the bar. These bolts pass
through the rear bar, through the
spacer and into the caged nut
( previously installed ) .

Tighten the four bolts.

RE - FIT THE LICENSE PLATE

Refit the license plate to the vehicle as
shown .

Note :- If the vehicle is not fitted with a
body lift / spacer kit , the license plate
will not fit as shown it will be necessary
to purchase the additional license plate
kit as listed below .

A licence plate relocation kit is available
as an accessory from your ARB stockist
( part number 575 0050 ).

M6 Cap

Cover panel

Nylon Spacer

M6 Cage nuts

M6 x 40 mm Bolt

Spacer

Last Rev Date: 16/10/2006

Page 25 of 25

3783210 - rev 3
