FITTING THE REAR BAR TO THE VEHICLE

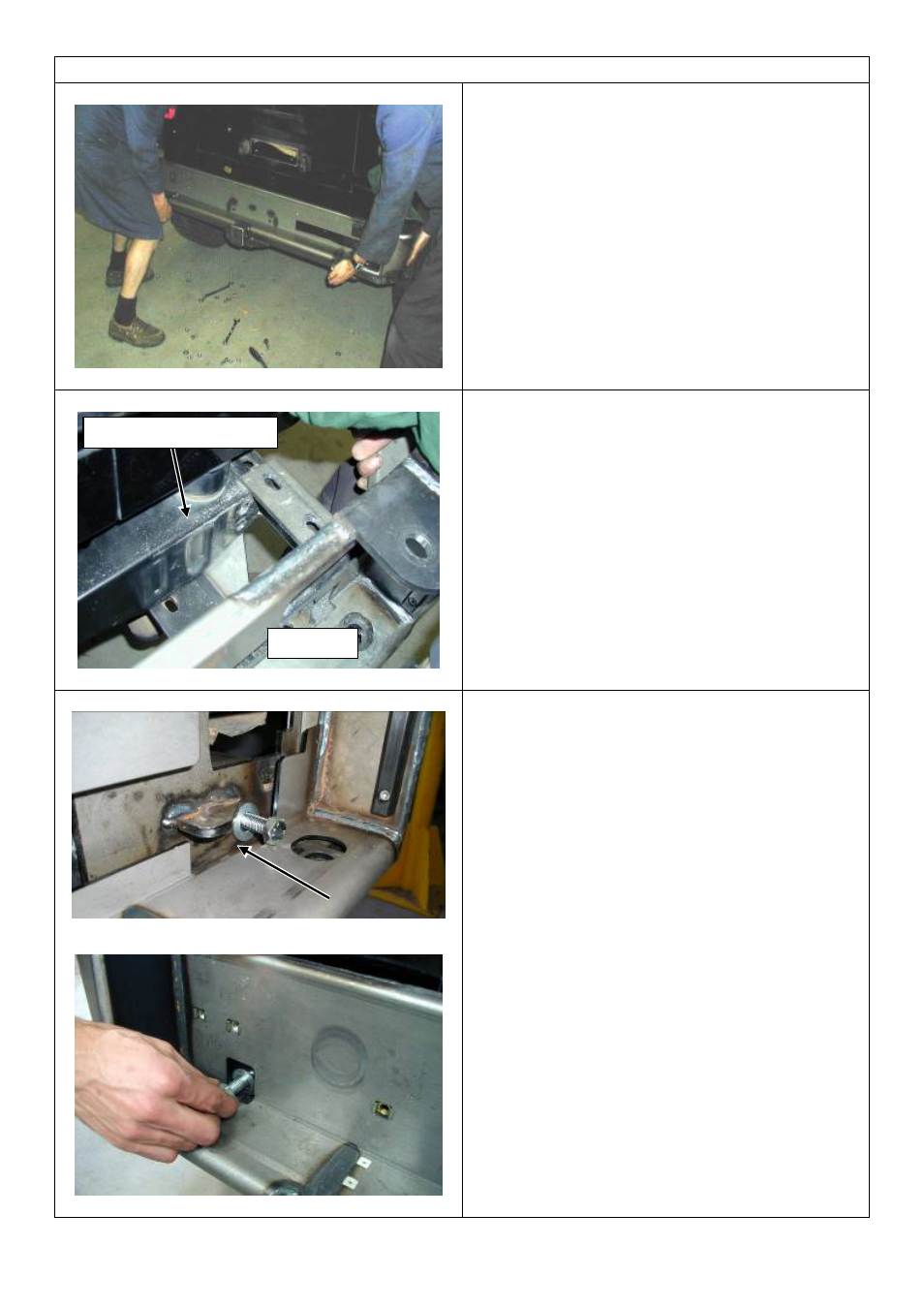

7. INSTALLATION OF THE REAR BAR

TO THE VEHICLES REAR
CROSS MEMBER.

With the assistance of another person lift
the rear bar into position and fit to the
back of the vehicle.

Slide the bar forward on the vehicle until
the uprights touch the rear cross member.

POSITIONING OF REAR BAR

ON VEHICLE.

Align the holes in the rear bar so that the

holes line up with the holes in the base of
the chassis.

There should be equal spacing between the

wing and quarter panel on both sides of
the vehicle.

RIGHT HAND SIDE SHOWN

LEFT HAND SIDE SHOWN

ALIGN REAR BAR ON VEHICLE

Align the rear bar so that the gap between
the body and rear bar is parallel and level.

Insert two M12 x 40 mm bolts & flat
washer through the front of the bar as
shown.

Fasten these bolts with M12 flat washers,
spring washers and nuts.

NOTE: The bolts will pass through the
rear bar, the chassis cross member and the
chassis reinforcing bracket.

Do not tighten these bolts, as the rear bar
will be removed temporally after step 10.

Vehicle Cross Member

Rear Bar
