Page 23: Wiring the loom to the tail lamp

VEHICLE WIRING MODIFICATIONS FOR HI – LEVEL STOP LAMP

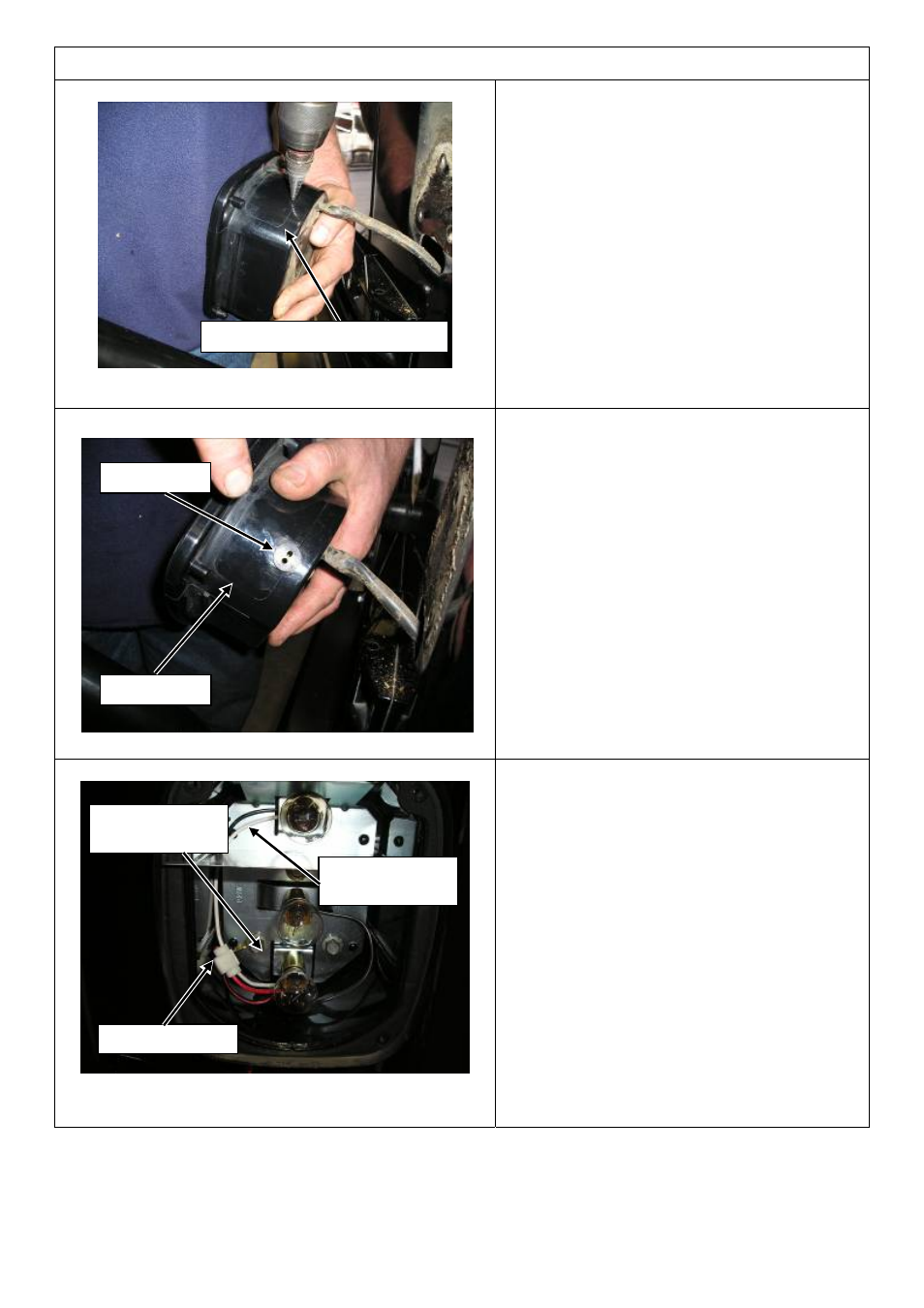

11. DRILLING THE TAIL LAMP

HOUSING

Turn the tail lamp housing upside
down as shown .

Using a 12 mm drill bit , drill a hole in
the bottom of the housing in the centre
on the faint mould line as shown .

Ensure the drill bit does not protrude
to far into the housing when drilling
causing damage to the housing or
wiring .

12. GROMMET AND WIRING TO TAIL

LAMP HOUSING

Push the grommet into the hole in the
tail lamp housing .

Re-fit the tail lamp housing to the
vehicle using the top bolt only at this
stage .

Split the twin core wire and push it
through the grommet into the housing

Allow approx 100mm of the wire
inside the housing .

13. WIRING THE LOOM TO THE TAIL

LAMP

Crimp the ring terminal to the earth
wire ( red with a black trace ) and
place the terminal under the head of
one of the two remaining bolts .

The two remaining bolts can now be
re-fitted to the tail lamp housing as
shown .

Attach the scotch lock to the ( white )
stop lamp positive wire and also secure
the red loom wire – crimp the scotch
lock together as shown .

Feed wiring through grommet

Ring terminal

( Earth )

Housing

Stop lamp

( Positive ) wire

Scotch lock

Grommet

Last Rev Date: 16/10/2006

Page 23 of 25

3783210 - rev 3
