Page 24: Lens to tail lamp

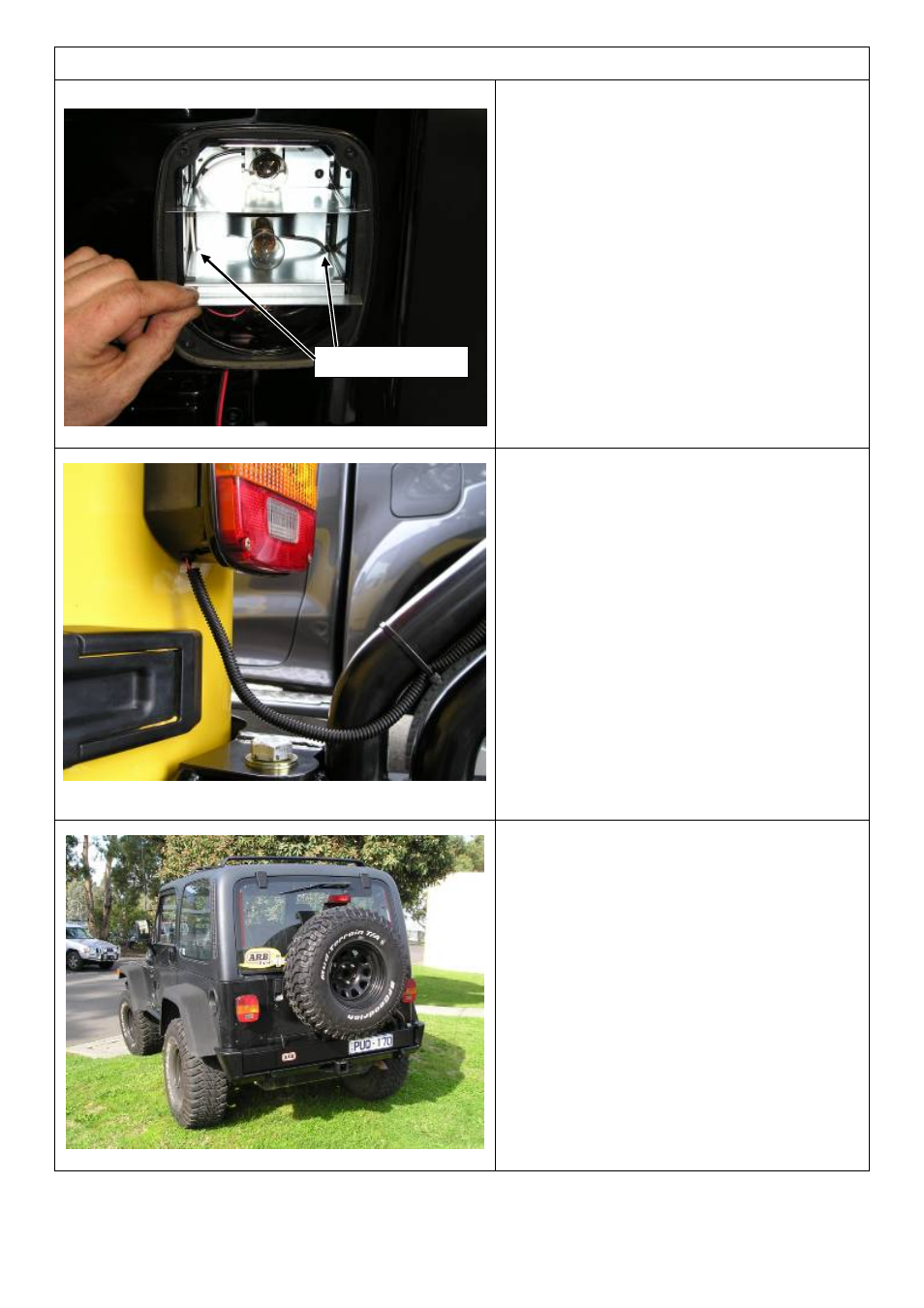

RE-FITTING THE TAIL LAMP TO VEHICLE

14. DIVIDER PLATE TO TAIL LAMP

HOSING

Re - fit the divider to the housing .

Ensure the wiring sits in the cut out
provided on each side at the back .

Note :- The folded edge of the divider
is on the lower side .

On the tail gate where the factory high
level stop lamp loom passes through
there is an exposed hole – Use the
blanking grommet supplied in the
fitting kit to cover it .

15. LENS TO TAIL LAMP

Re – fit the tail lamp lens to the
housing .

With the wheel carrier door open ,
trim the remaining end of the
convolute tubing to sit under the tail
lamp as shown .

Check that the high level brake lamp
is operational and the loom is tie to the
frame securely ( step 10 ) and does not
hang in the pivot area .

16. RE - FIT THE SPARE WHEEL

Re-fit the spare wheel using the wheel
nuts provided.

Locking wheel nuts are available as an
accessory from your ARB stockist .
( part number 575 0040 ) .

A Hi-Lift jack mounting bracket is
available as an accessory from your
ARB stockist ( part number 575 0030 ).

Cut out in divider

Last Rev Date: 16/10/2006

Page 24 of 25

3783210 - rev 3
