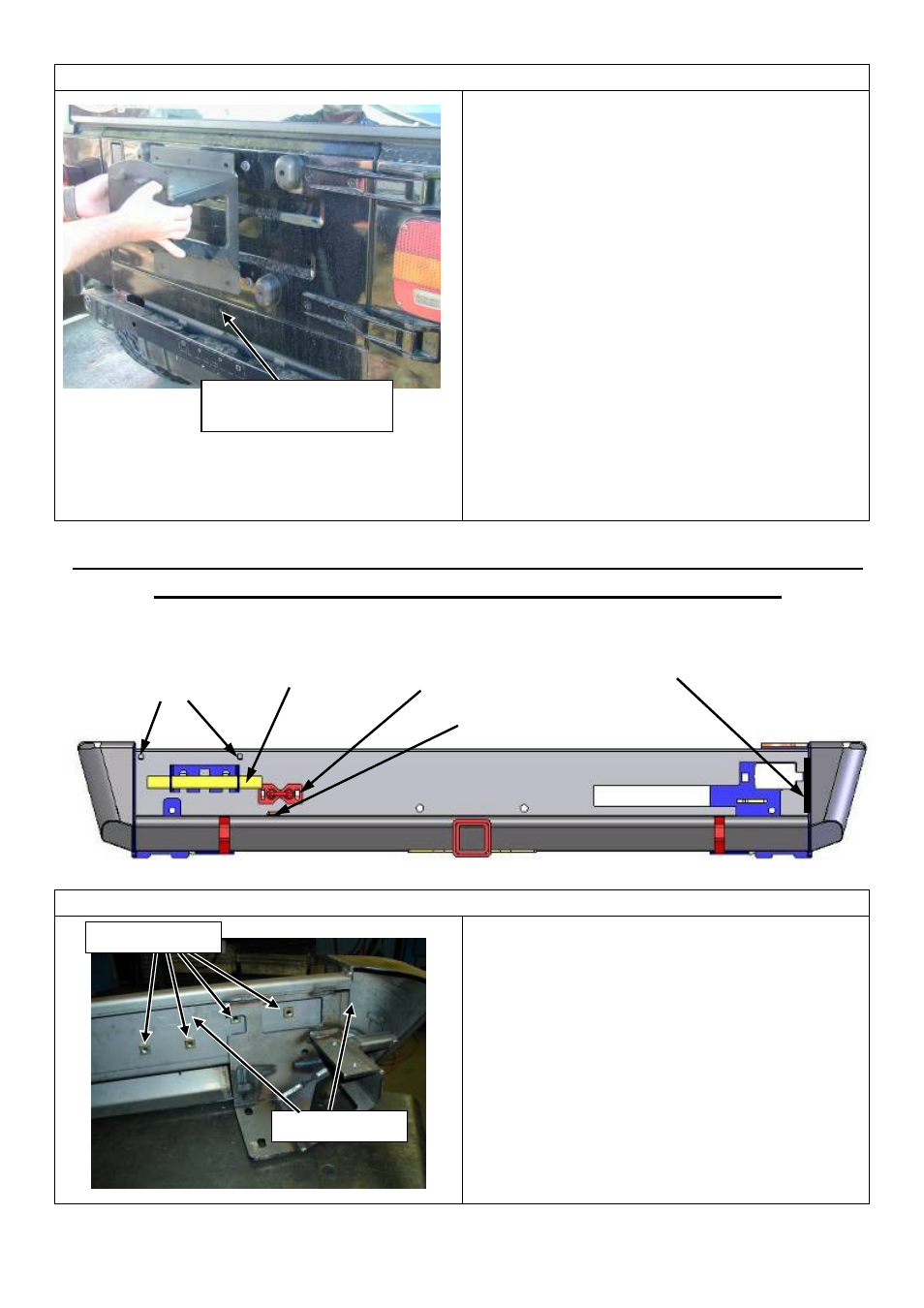

PREPARATION OF THE VEHICLE
1. REMOVAL OF THE FACTORY SPARE
WHEEL CARRIER.
Remove the spare wheel from the vehicle.
Unbolt the factory hi – level stop lamp and
disconnect the wiring loom.
Remove the five bolts that hold the carrier
to the rear door – remove the carrier and
replace the five bolts in their original
positions and tighten. Fit a nylon washer
under the head of each bolt.
Remove the rear bumper bar from the
vehicle ( On Australian vehicles keep the
licence plate lamp loom as it is re-used when
fitting the optional licence plate lamp kit ) .
Remove the lower rubber tire stopper.
LOCATION OF LOWER
RUBBER STOPPER
THE FOLLOWING COMPONENTS CAN BE INSTALLED ONTO THE
REAR BAR BEFORE IT IS FITTED TO THE VEHICLE.
CAGED NUTS
FOR INFILL
PANEL
GRABBER
BRACKET
CATCH
HOOK
Last Rev Date: 16/10/2006 Page 5 of 25 3783210 - rev 3
Copyright © 2005 by ARB Corporation Limited. All rights reserved, this document must not be reproduced without the express authority of ARB Corporation Ltd
BUMP
STOP
SLIDER
PRE - ASSEMBLY OF REAR BAR
2. INSTALLATION OF THE CAGE NUTS
Install four M8 cage nuts (short leg) from
the back of the bar as shown. These cage
nuts will be used to fasten the grabber
bracket and the catch hook, as shown in the
diagram above.
Install two M6 caged nuts in from the back
of the bar as shown. These caged nuts will
be used to fasten the infill panel.
M8 cage nuts
M6 cage nuts
