7. Before wrapping the ribbon around the ribbon take-up spindle, ensure that
the arrow on the knob aligns with the indented notch (see Figure 25
inset).
NOTE: Do not tape the ribbon to the ribbon take-up spindle!
8. Place the ribbon (with leader, if used) around the ribbon take-up spindle
and wind counterclockwise for several turns.
9. Close the printhead.
40
Brady X-PLUS Series User’s Guide
Ribbon
supply
spindle
Ribbon
take-up
spindle
Closed
Open
Printhead
lever

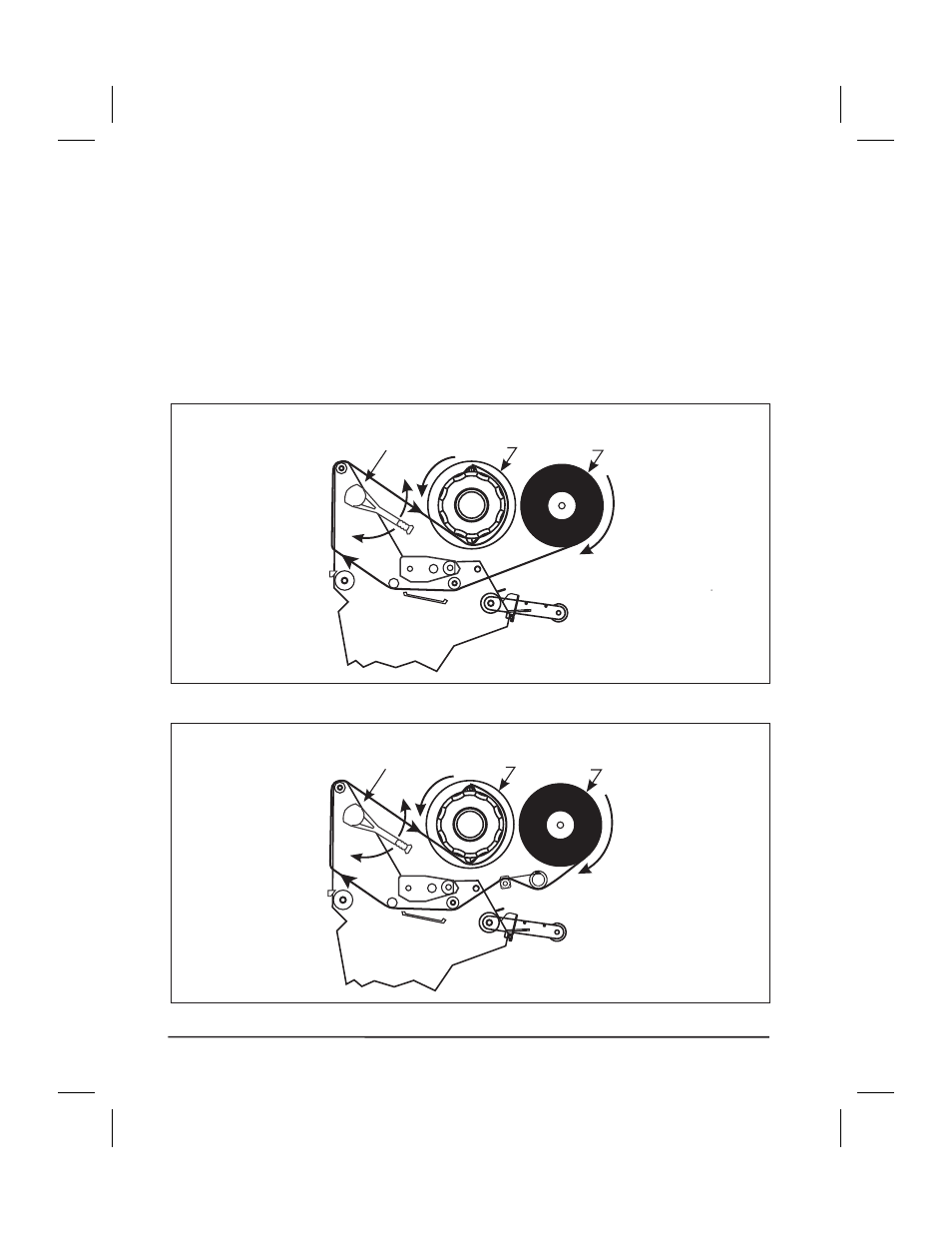

Figure 23
Ribbon
supply
spindle
Ribbon
take-up
spindle
Closed
Open
Printhead
lever
Figure 24
