Roll Media Loading
NOTE: A calibration must be performed when media and ribbon (if used)
are first installed in the printer, or when a different type of media
or ribbon is being used.
Tear-Off Mode
Refer to Figure 16.
1. Open the printhead.
2. Slide the media guide and media supply guide as far from the printer
frame as possible. Flip down the media supply guide.
3. Load media as shown.
4. Flip up the media supply guide. Slide in the media guide and media
supply guide so they just touch, but not restrict, the edge of the roll.
5. Close the printhead.
Brady X-PLUS Series User’s Guide 27
Media
guide
Media
Media
supply
guide
Closed
Open
Printhead lever

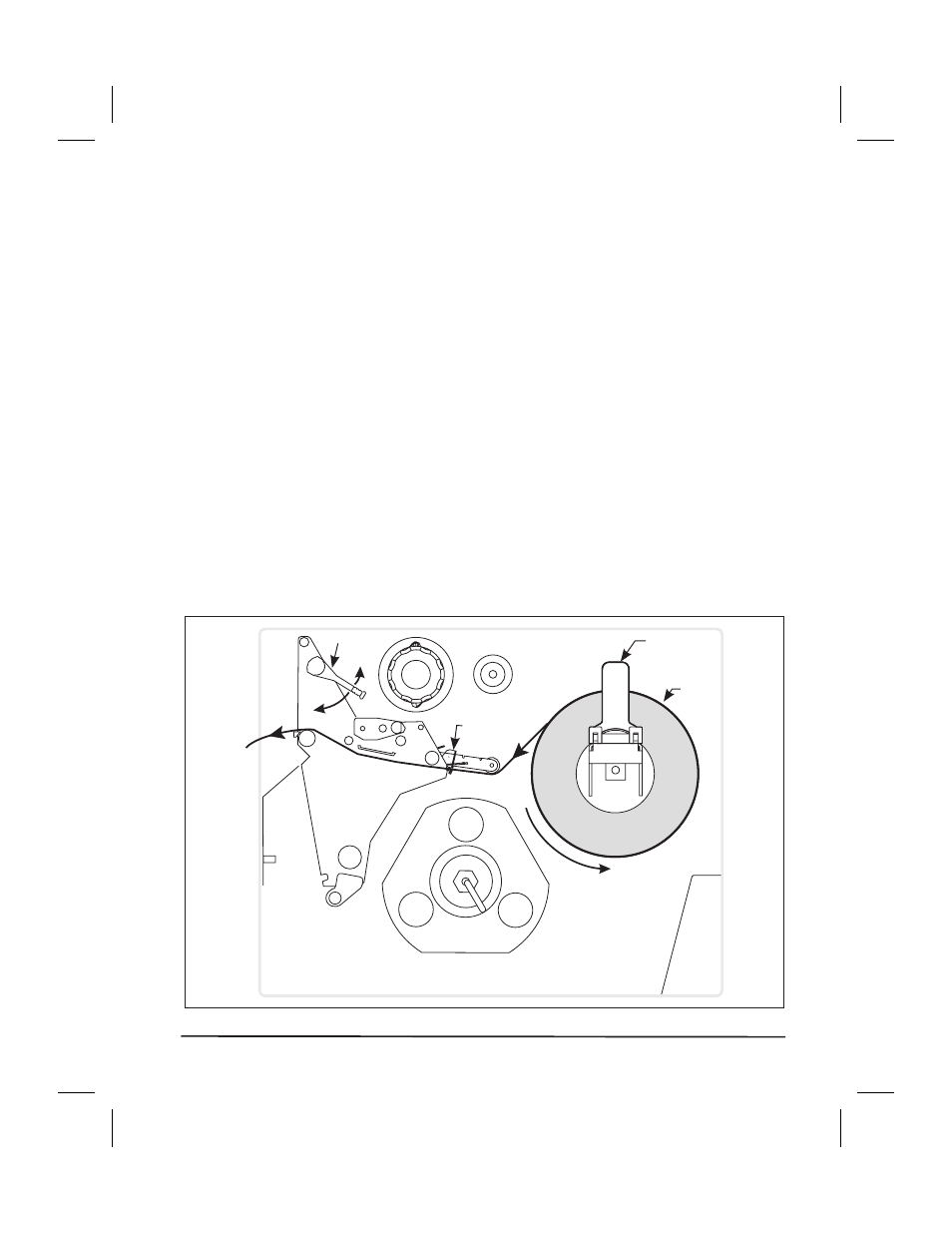

Figure 16
