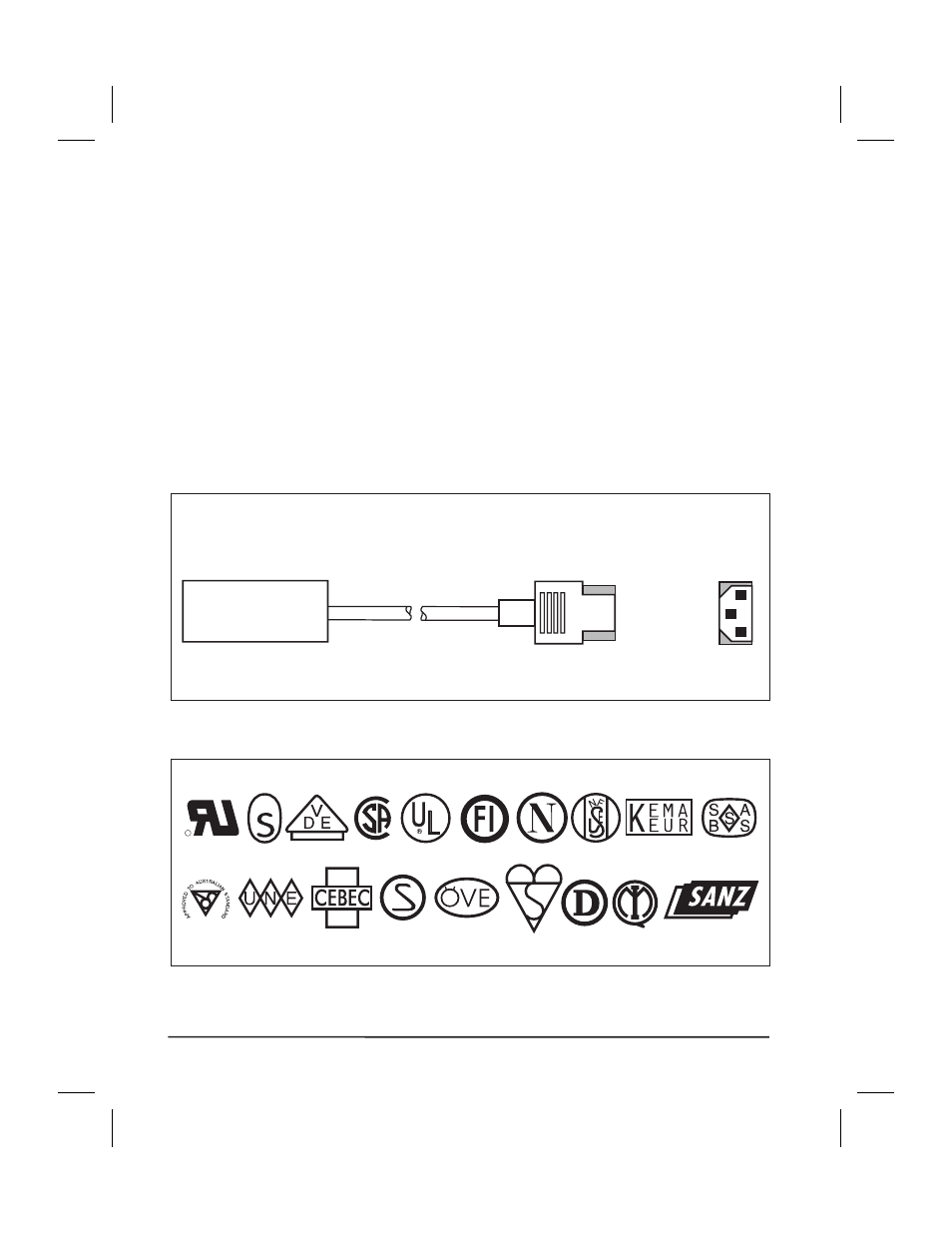

Power Line Cord Specifications

n

The overall length must be less than 9.8 feet (3.0 meters).

n

It must be rated for at least 5 A, 250 V.

n

The chassis ground (earth) MUST be connected to assure safety and

reduce electromagnetic interference. The ground connection is handled

by the third wire (earth) in the power line cord. See Figure 37.

n

The AC power plug and IEC 320 connector must bear the certification

mark of at least one of the known international safety organizations

shown in Figure 38.

92

Brady X-PLUS Series User’s Guide

AC power

plug for

your country

3 conductor

cable

IEC 320

connector

Contact

view

Neutral

Live

Earth

Figure 37

+

R

Figure 38
