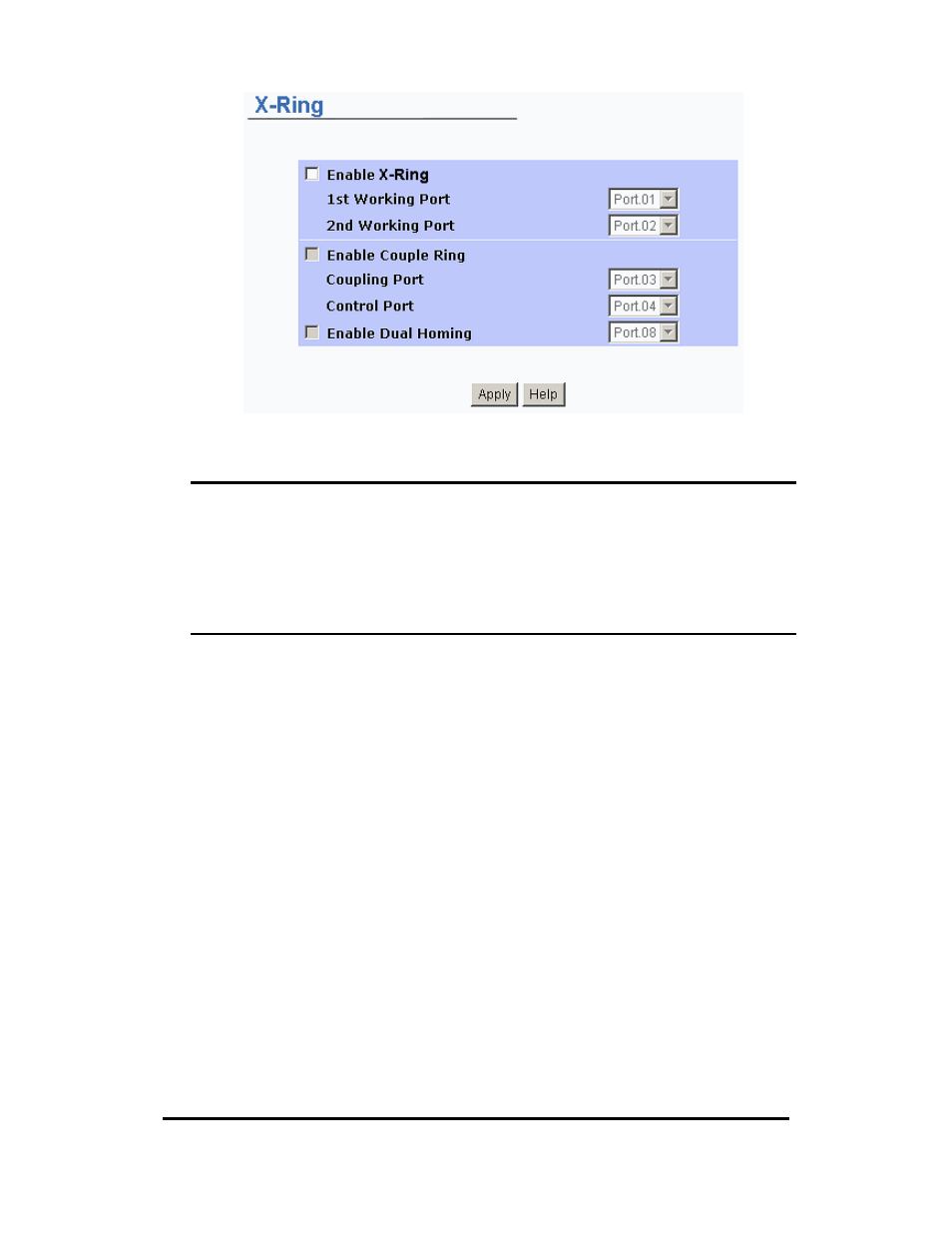

X-Ring Interface
[NOTE]
1. When the X-Ring function is enabled, the RSTP function must be
disabled.
2. If the configuration is not saved, it will be lost when the switch is
powered off.
QoS Configuration
„ Qos Policy: select the Qos policy rule
¾ Using the 8,4,2,1 weight fair queue scheme: The switch will
follow 8:4:2:1 rate to process priority queue from Highest to lowest.
For example: the system will process 8 high queue packets, 4
middle queue packets, 2 low queue packets, and one lowest
queue packets at the same time
¾ Use the strict priority scheme: The highest queue will always be
processed first.
„ Priority Type: Every port has 5 priority types
¾ Port-base: The port priority will follow the default port priority
assigned – High, middle, low, or lowest
