Panel Mounting

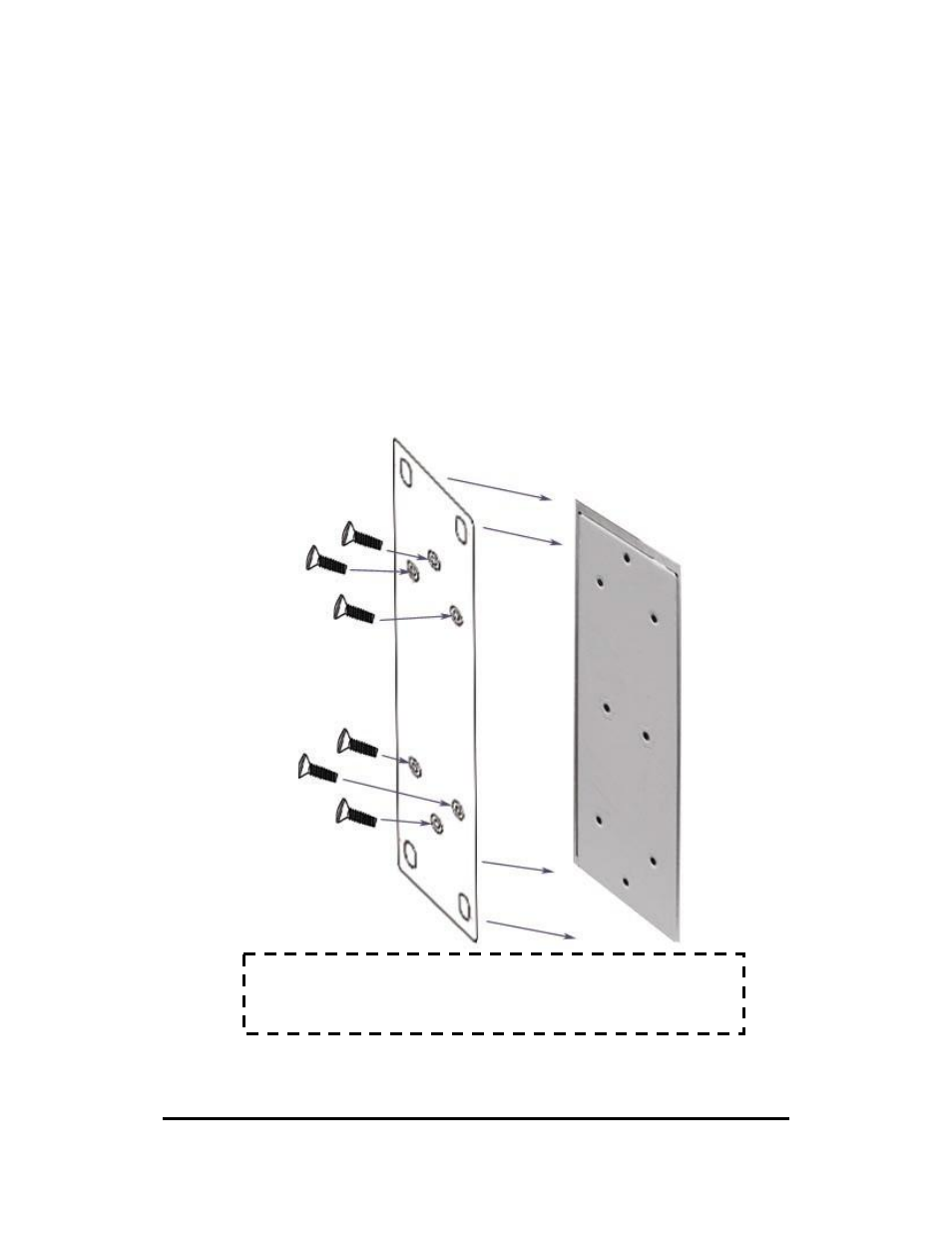

Follow the steps below to mount the industrial switch with the Panel mount
plate.
1. Remove the DIN-Rail from the industrial switch.
2. Place the wall Panel plate on the rear of the industrial switch.
3. Use the screws to attach the Panel plate to the industrial switch
4. Use the hook holes at the corners of the panel mount plate to attach the
industrial switch to the panel.
5. To remove the panel mount plate, reverse steps above
