3. Group Name: assign a name for the new VLAN
4. VLAN ID: fill in a VLAN ID. The default is 1
5. From the Available ports box, select ports to add to the VLAN group
and click
Add
button

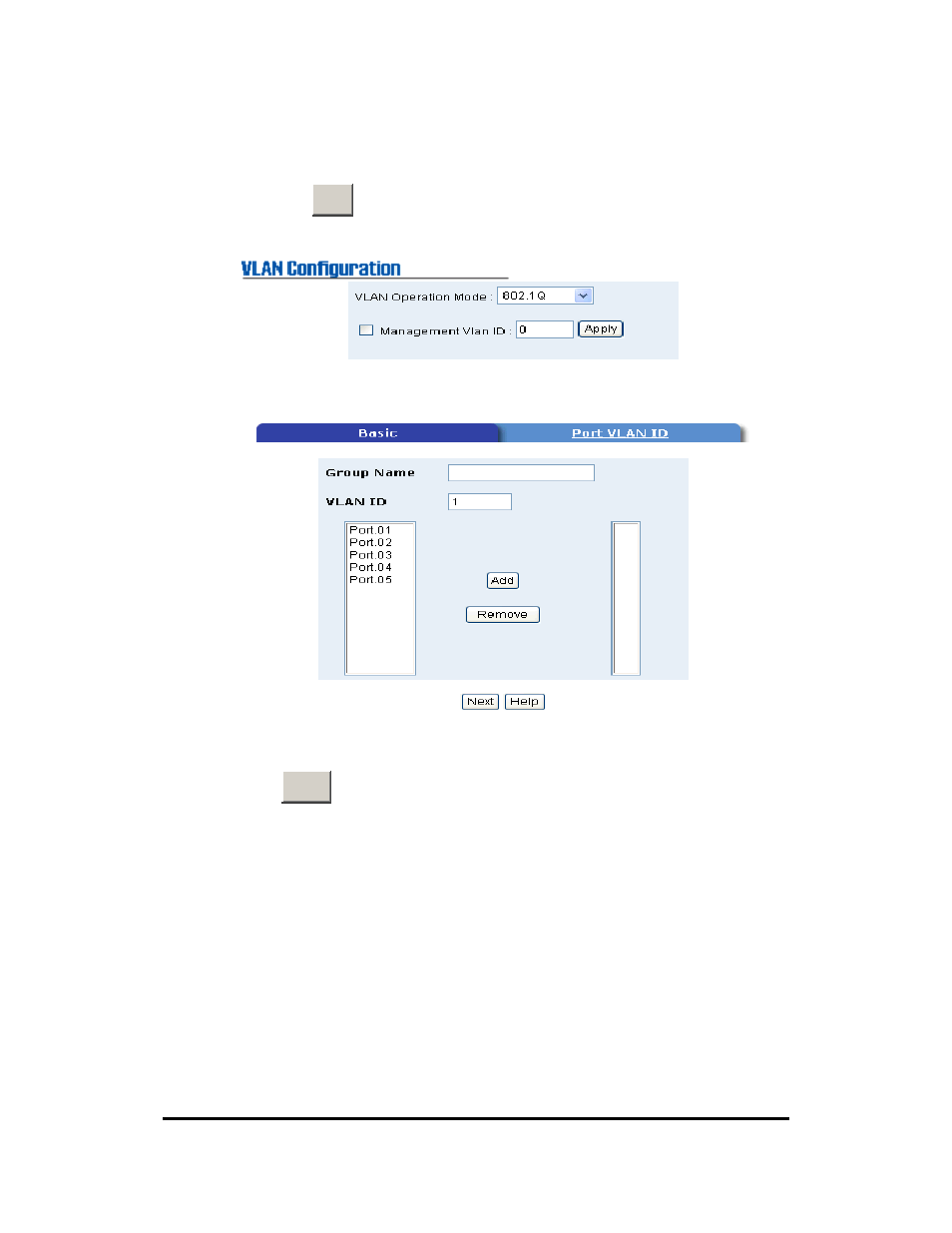

802.1q VLAN –Add interface
6. Click
Next
to bring up the configuration interface:
